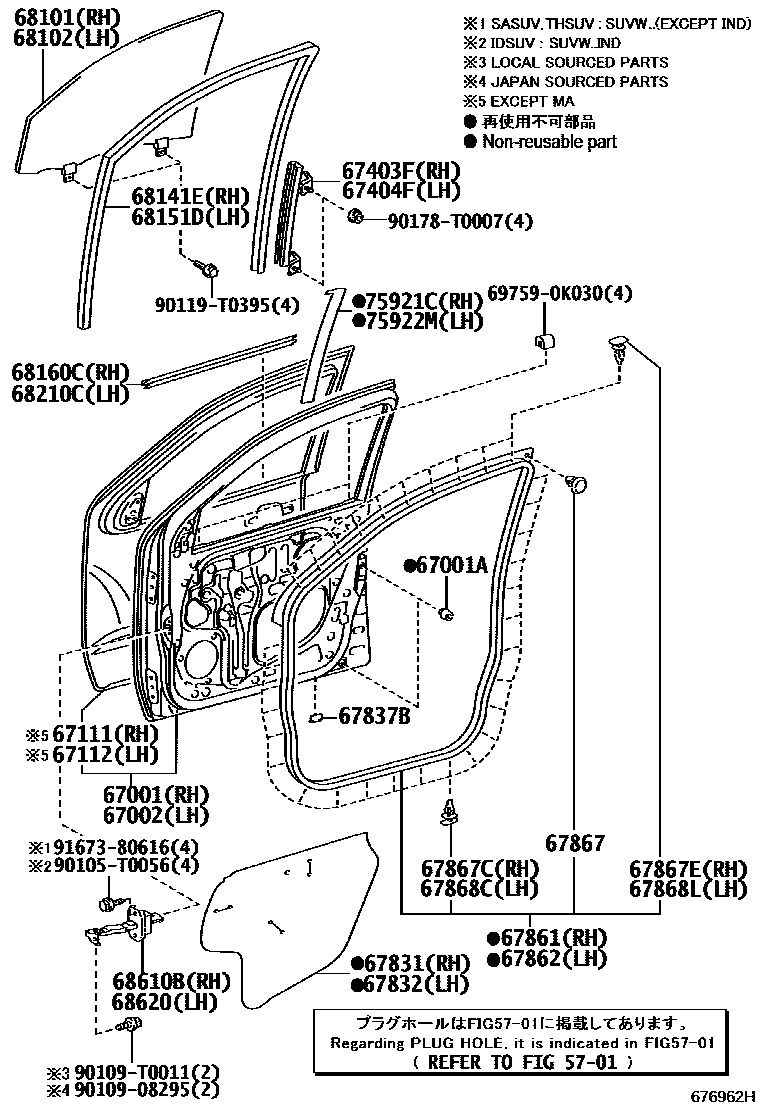

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701HOLE PLUG

→ Go to FIG 57-01

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0K010iTGN51..PKN201107-201609

main67001-0K060iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main67001-0K070iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×4iTGN51..PKN201107-201609

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0K010iKUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)201107-201703

main67002-0K060iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main67002-0K070iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

67111PANEL, FRONT DOOR, OUTER RH

main67111-0K010iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH,VN201107

67112PANEL, FRONT DOOR, OUTER LH

main67112-0K010iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH,VN201107

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

main67831-0K020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main67831-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-0K010iKUN60,TGN51,61..VN201107-201611

main67831-0K020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main67831-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K120×6iKUN51,61..IND201401-201402

main67837-0K121×6iTGN51..PKN201402-201609

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K013iGGN50,60201804

main67861-0K071iGGN50,KUN51,TGN51,61..CO,LA201110-201112

main67861-0K072iGGN50,60,KUN51,TGN51,61..ANCOM,CO,LA201201-201209

main67861-0K073iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201210-201803

main67861-0K210iKUN51,6#..IND201405-201608

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K013iGGN50,60201804

main67862-0K071iGGN50,KUN51,TGN51,61..CO,LA201110-201112

main67862-0K072iGGN50,60,KUN51,TGN51,61..ANCOM,CO,LA201201-201209

main67862-0K073iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201210-201804

main67862-0K210iKUN51,6#..IND201405-201608

67867CLIP, DOOR WEATHERSTRIP

main90467-06084iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,SA,VN201507

(J)

main90467-T0012iGGN50,60201804

(L)

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×23iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107

67867ERETAINER, FRONT DOOR LOWER PROTECTOR, RH

main67867-0D050×10iGGN50,60201804

(L)

main67867-52040×10iLAN50..RHD;TGN51..5F..SA;GGN50,60,KUN51,6#,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,IND,LA,PHL,TH)201107-201804

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×23iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-0D060×10iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,SA,VN201507

(L)

main67867-52010×10iKUN60..SA,VN;TGN51..4FC..SA;TGN51..EPT,KZS,MA,PKN,VN;LAN50,TGN61..LHD..(SA,VN);GGN50,60,KUN5#,61..EPT,IDN,MA,SA;GGN50,KUN51,60,TGN51,61..IDSUV,SASUV201107-201507

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K011iKUN50,TGN51..MA201109-201601

*TT,T=3.5,GREEN

main68101-0K021iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

*TT,T=3.5,GREEN

main68101-0K031iGGN50,60,KUN51,TGN51,61..ANCOM,CO,LA201110-201206

*TT,T=3.5,GREEN

main68101-0K032iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201206

*TT,T=3.5,GREEN

main68101-0K110iGGN50,KUN51,6#,TGN51,61201107-201108

*TT,T=3.5,GREEN

main68101-0K111iTGN51..PKN201109-201609

*TT,T=3.5,GREEN

main68101-0K112iGGN50,KUN5#,60,TGN51,61..IDSUV201305-201510

*TT,T=3.5,GREEN

main68101-0K131iKUN51,6#..IND201201-201608

*TEM,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K011iKUN50,TGN51..MA201109-201601

*TT,T=3.5,GREEN

main68102-0K021iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

*TT,T=3.5,GREEN

main68102-0K031iGGN50,60,KUN51,TGN51,61..ANCOM,CO,LA201110-201206

*TT,T=3.5,GREEN

main68102-0K032iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201206

*TT,T=3.5,GREEN

main68102-0K110iGGN50,KUN51,6#,TGN51,61201107-201108

*TT,T=3.5,GREEN

main68102-0K111iKUN60,TGN51,61..VN201109-201611

*TT,T=3.5,GREEN

main68102-0K112iGGN50,KUN5#,60,TGN51,61..IDSUV201305-201510

*TT,T=3.5,GREEN

main68102-0K131iKUN51,6#..IND201201-201608

*TEM,T=3.5,GREEN

68141ERUN, FRONT DOOR GLASS, RH

main68141-0K010iTGN51..PKN201107-201609

68151DRUN, FRONT DOOR GLASS, LH

main68151-0K010iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH201107

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-0K010iKUN60,TGN51,61..VN201107-201611

main68161-0K030iKUN51,6#..IND201405-201608

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-0K010iKUN50,TGN51..MA201202

main68162-0K030iKUN51,6#..IND201405-201608

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K010iGGN50,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(EPT,GCC,GEN,IDN,MA,PHL,TH,VN)201107-201212

main68610-0K011iGGN50,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,TH,VN)201212-201405

main68610-0K012iKUN5#,6#,TGN51,61..KZS,MA,TH201405-201703

main68610-0K020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201304

main68610-0K021iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201304-201512

main68610-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main68610-0K040iGGN50,KUN51,60,TGN51,61..IDSUV201107-201305

main68610-0K041iGGN50,KUN5#,60,TGN51,61..IDSUV201305-201510

main68610-0K050iKUN51,61..IND201201-201210

main68610-0K051iKUN51,6#..(5F,5FC)..IND201210-201608

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K011iGGN50,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,TH,VN)201212-201405

main68610-0K012iKUN5#,6#,TGN51,61..KZS,MA,TH201405-201703

main68610-0K021iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201304-201512

main68620-0K010iGGN50,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(EPT,GCC,GEN,IDN,MA,PHL,TH,VN)201107-201212

main68620-0K020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201304

main68620-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

main68620-0K040iGGN50,KUN51,60,TGN51,61..IDSUV201107-201305

main68620-0K041iGGN50,KUN5#,60,TGN51,61..IDSUV201305-201510

main68620-0K050iKUN51,61..IND201201-201210

main68620-0K051iKUN51,6#..(5F,5FC)..IND201210-201608

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

697590K030SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-0K030

90105T0056

main90105-T0056

9010908295

main90109-08295

90109T0011

main90109-T0011

90119T0395

main90119-T0395

90178T0007

main90178-T0007

9167380616

main91673-80616
