INSIDE TRIM BOARD
62111CBOARD, COWL SIDE TRIM, RH
DK.GRAY,TRIM1#
BLACK,TRIM2#
main62111-0K010-E0iKUN51,61,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,TH,VN);GGN50,KUN50,60,TGN51..(SUVW,THSUV)..(EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,VN)201107-201609
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
main62111-0K030-E0supersedes 62111-0K160-E0iKUN51..4FC..CO;GGN50,60,TGN51,61..SUVW..(ANCOM,CO,LA)201110
SAND BEIGE,TRIM4#
main62111-0K060-C0iGGN50,KUN50,60..IDSUV;KUN51,TGN51,61..IDSUV..(4FC,5F)..(GEN,IDN,LA,PHL)201308-201510
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#; COLOMBIA SPEC,BLACK,TRIM2#
COLOMBIA SPEC,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
62112BOARD, COWL SIDE TRIM, LH
DK.GRAY,TRIM1#
BLACK,TRIM2#
main62112-0K010-E0iKUN51,61,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,TH,VN);GGN50,KUN50,60,TGN51..(SUVW,THSUV)..(EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,VN)201107-201609
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
main62112-0K030-E0supersedes 62112-0K160-E0iKUN51..4FC..CO;GGN50,60,TGN51,61..SUVW..(ANCOM,CO,LA)201110
SAND BEIGE,TRIM4#
main62112-0K060-C0iGGN50,KUN50,60..IDSUV;KUN51,TGN51,61..IDSUV..(4FC,5F)..(GEN,IDN,LA,PHL)201308-201510
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#; COLOMBIA SPEC,BLACK,TRIM2#
COLOMBIA SPEC,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
62155CBRACKET, CURTAIN SHIELD AIRBAG, RH
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
62156BBRACKET, CURTAIN SHIELD AIRBAG, LH
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
62170BBOLT, W/WASHER
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
main90119-T0425×22iGGN50..5FC..CO;KUN51..SR..IART; KUN51..CO;GGN50..5F..CO; TGN61..5F..HTWCF;KUN51..(4FC,5F)..LA;KUN51..SUVW..5FC..DCR..LA;GGN50,TGN61..(4FC,5FC)..(GEN,LA)201406-201510
(L); SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),(L); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),(L)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
main62211-0K050-B0iKUN51..DLX;GGN50,KUN51..SUVW..5FC..(DCR,HTWC)..LA;GGN50,KUN51,TGN51,61..SUVW..(4FC,5F)..(CO,LA)201110-201510
LT.GRAY,TRIM2#
main62211-0K050-E0iKUN51..DLX;GGN50..5F..CO;GGN50..SUVW..(ANCOM,LA);GGN60,KUN51,TGN51,61..SUVW..(DCR,HTWC,HTWCF)..(ANCOM,CO,LA)201110
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM2#
main62212-0K020-E0iKUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)201107-201703
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
main62212-0K050-B0iKUN51..DLX;GGN50,KUN51..SUVW..5FC..(DCR,HTWC)..LA;GGN50,KUN51,TGN51,61..SUVW..(4FC,5F)..(CO,LA)201110-201510
LT.GRAY,TRIM2#
main62212-0K050-E0iKUN51..DLX;GGN50..5F..CO;GGN50..SUVW..(ANCOM,LA);GGN60,KUN51,TGN51,61..SUVW..(DCR,HTWC,HTWCF)..(ANCOM,CO,LA)201110
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
main62311-0K230iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,SA,TH,VN201411-201703
62314DTRIM, FRONT DOOR OPENING, LH
main62312-0K010iLAN50..RHD;TGN51..5F..SA;KUN61..4FC..(IND,TH);KUN51..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH);GGN50,KUN60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL)201107
main62312-0K230iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,SA,TH,VN201411-201703
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-0K230iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,SA,TH,VN201411
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-0K230iGGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,SA,TH,VN201411
62411GARNISH, CENTER PILLAR, RH
LT.GRAY,TRIM2#
main62411-0K060-E1iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN51,60,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,PHL,SA,TH)201107-201703
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
62412GARNISH, CENTER PILLAR, LH
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
DK.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62414AGARNISH, CENTER PILLAR, LOWER LH
DK.GRAY,TRIM1#
BLACK,TRIM2#
main62414-0K011-E0iKUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,KZS,PHL,TH)201107-201703
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62471EGARNISH, ROOF SIDE, INNER UPPER RH
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE,LT.GRAY,TRIM2#; AIR CONDITIONER-SINGLE AIR CONDITIONER,LT.GRAY,TRIM2#; LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
main62471-0K100-B1iKUN50,TGN51..KZS,MA;KUN51..LHD..4FC..SA;GGN50,KUN51,60,TGN51,61..IDSUV..(GEN,LA)201203-201703
LT.GRAY,TRIM2#
main62471-0K100-E0iTGN61..SUVW..IDN;GGN50,KUN51..IDSUV..LA;KUN60..IDSUV..(GEN,PHL);KUN61..(5F,5FC)..(SA,TH);KUN60..SUVW..(GEN,IDN,PHL,SA,TH);KUN61,TGN51..RHD..SUVW..4FC..(IDN,IND,SA,TH);GGN50,60,KUN5#,LAN50,TGN51,61..GCC,GEN,KZS,MA,PHL,SA,TH201107-201703
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
main62471-0K110-B0iKUN51..SR..IART; KUN51..SUVW..(4FC,5FC)..DCR..LA; TGN61..4FC..HTWC..LA201310-201510
FRONT HEATER-WITH(AIR CONDITIONER),LT.GRAY,TRIM2#; LT.GRAY,TRIM2#; OWNER'S MANUAL-ENGLISH & SPANISH(SEPARATED),LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
62471MCLIP
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
62472EGARNISH, ROOF SIDE, INNER UPPER LH
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
main62472-0K040-B0iKUN51..DLX; KUN51..SR..IART; KUN51..SUVW..(4FC,5FC)..DCR..LA; KUN51..SUVW..5F..LA; TGN61..4FC..HTWC..LA; TGN61..HTWCF201310-201510
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE,LT.GRAY,TRIM2#; AIR CONDITIONER-SINGLE AIR CONDITIONER,LT.GRAY,TRIM2#; FRONT HEATER-WITH(AIR CONDITIONER),LT.GRAY,TRIM2#; LT.GRAY,TRIM2#; OWNER'S MANUAL-ENGLISH & SPANISH(SEPARATED),LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
62638AGARNISH, QUARTER PILLAR, RH
AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE,LT.GRAY,TRIM2#; AIR CONDITIONER-SINGLE AIR CONDITIONER,LT.GRAY,TRIM2#; LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),LT.GRAY,TRIM2#
main62638-0K100-E0iTGN61..GEN;KUN51..THSUV;KUN51..IDSUV..(4FC,5F)..LA;GGN50..(IDSUV,THSUV)..5FC..(GEN,LA)201107-201510
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#
62638BCLIP
main90467-10188×4iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN51..(SASUV,SUVW,THSUV)..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,60,LAN50,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107
BLUE
NATURAL
62639AGARNISH, QUARTER PILLAR, LH
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),LT.GRAY,TRIM2#
main62639-0K090-E0iTGN61..GEN;KUN51..THSUV;KUN51..IDSUV..(4FC,5F)..LA;GGN50..(IDSUV,THSUV)..5FC..(GEN,LA)201107-201510
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#
67913BPLATE, FRONT DOOR SCUFF, RH
DK.GRAY,TRIM1#
main67913-0K010-C0iGGN50,KUN5#..IDSUV..(GCC,IDN,LA);KUN51,6#,TGN51,61..(IDSUV,SUVW)..(GEN,IDN,IND,KZS,PHL,TH,VN)201308-201703
BLACK,TRIM2#
main67913-0K010-E0iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,PHL,PKN,TH,VN)201107-201703
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
67914BPLATE, FRONT DOOR SCUFF, LH
DK.GRAY,TRIM1#
main67914-0K010-C0iGGN50,KUN5#..IDSUV..(GCC,IDN,LA);KUN51,6#,TGN51,61..(IDSUV,SUVW)..(GEN,IDN,IND,KZS,PHL,TH,VN)201308-201703
BLACK,TRIM2#
main67914-0K010-E0iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,PHL,PKN,TH,VN)201107-201703
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
67917CPLATE, REAR DOOR SCUFF, RH
DK.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
67918EPLATE, REAR DOOR SCUFF, LH
DK.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
67921ERETAINER, REAR DOOR SCUFF PLATE
7152SEAT BELT
7455CAUTION PLATE
9046706155
main90467-06155
9046710161
main90467-10161
9046710188
main90467-10188
90467T0008C0
main90467-T0008C0
90467T0021
main90467-T0021
9046805138
main90468-05138

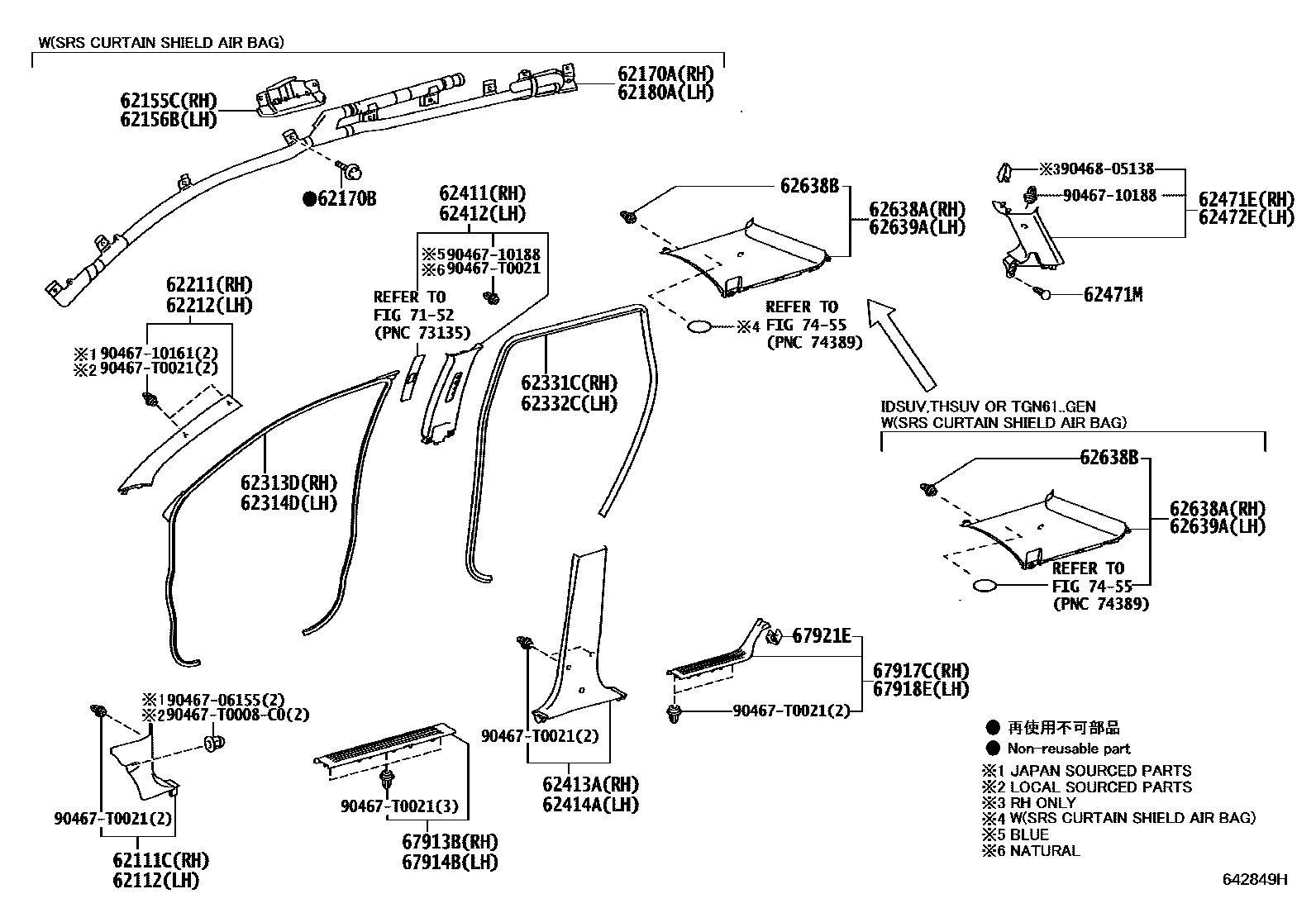

36 parts on this diagram · 2 diagrams in section
