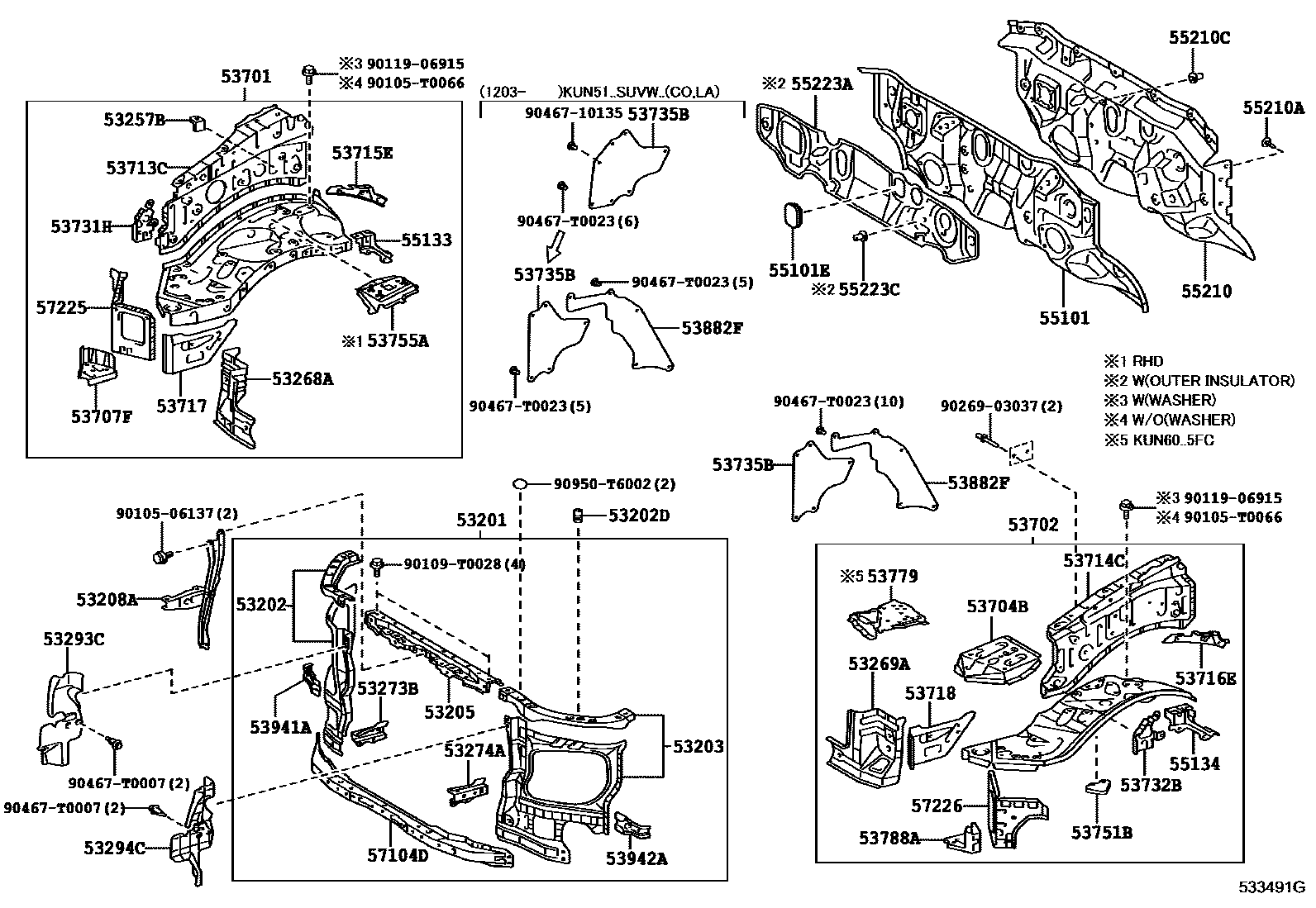

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-0K010iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
53202DCUSHION, RADIATOR SUPPORT
(J)
main90541-T0006×2iKUN61..4FC;GGN50,KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..GCC,GEN,IDN,KZS,MA,PHL,SA,TH201107-201703
(L)
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
main53208-0K010iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GEN,IDN,LA,MA,PHL,SA,TH201107
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53273BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, RH
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-0K010iGGN50,60,KUN5#,6#,LAN50..RHD..SUVW;TGN51,61..SUVW..HTWC..(GCC,IDN,LA,MA,TH); GGN50..SUVW..GCC201107-201203
ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
main53702-0K020iTGN51,61..SUVW..HTWC..(GCC,LA); TGN61..5F..CO;TGN61..5F..HTWCF;GGN50..LHD..(SUVW,THSUV);TGN61..SUVW..4FC..(CO,LA,PHL,VN);KUN51,60,LAN50,TGN51..LHD..(SUVW,THSUV)..(CO,GEN,LA,PHL,SA,VN)201107-201203
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
main53702-0K101iGGN50..IDSUV..GCC; TGN51..IDSUV..4FC;KUN5#,60..RHD..IDSUV;TGN61..IDSUV..(GCC,GEN,IDN)201108-201510
ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
main53702-0K111iTGN61..IDSUV..GCC;TGN51..IDSUV..4FC..GCC; TGN61..IDSUV..PHL;GGN50,KUN51,60..LHD..IDSUV201108-201510
ABS (ANTI-LOCK BRAKE SYSTEM)-WITH
53704BSUPPORT SUB-ASSY, BATTERY, LH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
main53714-0K010iKUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,60,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH)201107
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53731HPATCH, FRONT FENDER APRON, RH
53732BPATCH, FRONT FENDER APRON, LH
53735BSEAL, FRONT FENDER APRON, UPPER
main53735-0K020×2iKUN61..4FC;KUN51..IDSUV..LA;KUN51..GEN,PHL,SA,TH;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN50,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
RH
53751BBRACKET, CHARCOAL CANISTER MOUNTING
53755AREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.1
53779SEAT, BATTERY CARRIER SUPPORT
53788AGUSSET, FRONT FENDER APRON, LOWER LH
53882FSEAL, FRONT FENDER
53941ABRACKET, FRONT END PANEL, NO.1 RH
53942ABRACKET, FRONT END PANEL, NO.1 LH
55101PANEL SUB-ASSY, DASH
main55101-0K030iKUN51..LHD..(IDSUV,SASUV,THSUV)..5F;KUN51,60,LAN50,TGN51,61..LHD..(IDSUV,SUVW)..5F..(GCC,GEN,KZS,PHL,SA)201107-201703
main55101-0K040iGGN50,KUN51..IDSUV..(4FC,5FC)..LA;GGN50,60,KUN51,60,TGN51,61..LHD..(4FC,5FC)..(ANCOM,GCC,GEN,PHL,SA)201107
55101EGROMMET, DASH PANEL, NO.2
main87128-0K010iGGN50,60,KUN51,6#,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IND,KZS,LA,SA,VN)201107
main87128-0K020iGGN50,KUN51,60,TGN51,61..IDSUV..(GCC,GEN,LA); KUN51..IDSUV..PHL; KUN60..IDSUV..PHL201107-201510
AIR CONDITIONER-AIR CONDITIONER DUAL; AIR CONDITIONER-AUTO AIR CONDITIONER DUAL
55133PLATE, FRONT FENDER APRON SET, LOWER RH
55134PLATE, FRONT FENDER APRON SET, LOWER LH
55210INSULATOR ASSY, DASH PANEL
main55210-0K011iKUN61..4FC..(IND,TH);KUN60..RHD..(GEN,IDN);KUN5#,TGN51,61..RHD..(IDSUV,SUVW)..(4FC,5F)..(GEN,IDN,MA,PKN,TH)201107-201609
main55210-0K040iKUN51..LHD..SASUV;KUN51..LHD..5F..SA;KUN51..LHD..SUVW..4FC..(CO,LA,SA);GGN50,60,LAN50,TGN51,61..LHD..SUVW..(ANCOM,CO,LA,SA)201108
55210ACLIP
LT.GRAY,TRIM2#
SAND BEIGE,TRIM4#
55210CCLIP
(J)
(L); EXPORT FROM ARGENTINA; HIGH ALTITUDE COUNTRY SPEC; PERU SPEC
55223AINSULATOR, DASH PANEL, OUTER
55223CCLIP
57104DMEMBER SUB-ASSY, FRONT CROSS
57225BRACE, FRONT MOUNTING BRACKET, RH
57226BRACE, FRONT MOUNTING BRACKET, LH
9010506137
main90105-06137
90105T0066
main90105-T0066
90109T0028
main90109-T0028
9011906915
main90119-06915
9026903037
main90269-03037
9046710135
main90467-10135
90467T0007
main90467-T0007
90467T0023
main90467-T0023
90950T6002
main90950-T6002
54 parts on this diagram · 1 diagram in section
