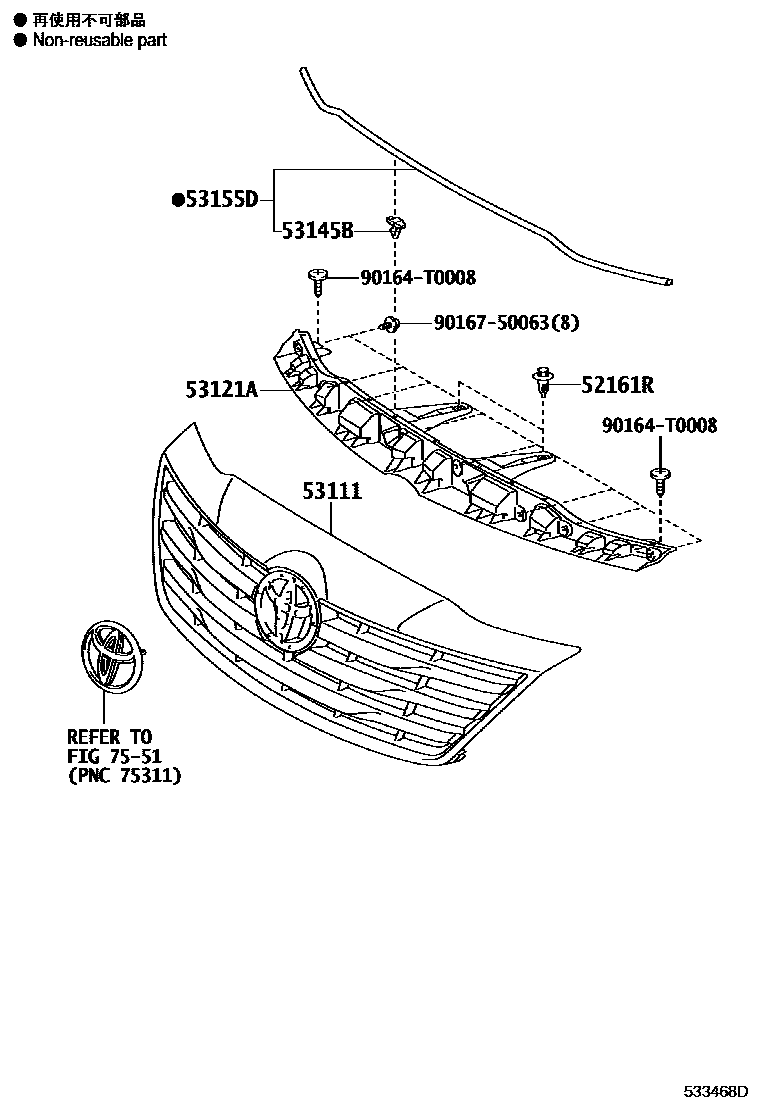

RADIATOR GRILLE

52161RPIECE, FRONT BUMPER

main52161-0K040×2iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107

53111GRILLE, RADIATOR

main53111-0K380iGGN50,60,KUN5#,6#,LAN50,TGN51,61..(SASUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,MA,PHL,PKN,SA,TH,VN)201107

PLATED

main53111-0K580iTGN51..KZS201403

PLATED

main53111-0K700iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

PLATED

53121AMOULDING, RADIATOR GRILLE

main53121-0K250iGGN50,60,KUN5#,6#,LAN50,TGN51,61..SASUV,SUVW,THSUV201107

main53121-0K560iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-0K010×13iGGN50,60,KUN5#,6#,LAN50,TGN51,61..SASUV,SUVW,THSUV201107

main53145-60030×13iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201510

53155DSEAL, RADIATOR GRILLE, NO.1

main53397-0K050iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

90164T0008

main90164-T0008

9016750063

main90167-50063

8 parts on this diagram · 1 diagram in section
