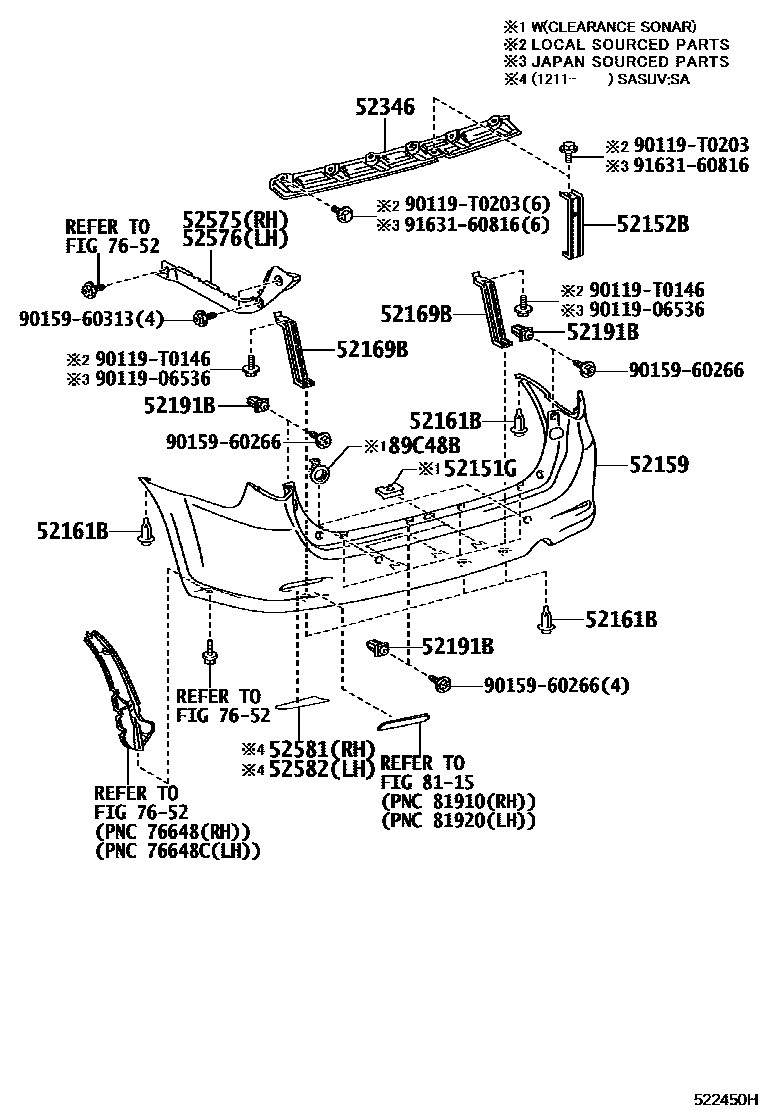

REAR BUMPER & BUMPER STAY
52151GEXTENSION, REAR BUMPER
main52151-0K030×3iKUN51,60,TGN61..IDSUV..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408
BACK MONITOR-WITHOUT
52152BEXTENSION, REAR BUMPER, RH
main52166-0K010iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN201107
52159COVER, REAR BUMPER
PAINT REQ.
main52159-0K929iKUN51..5F..TH;KUN60..LHD..GEN;KUN51..SUVW..PHL;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..(IDSUV,SUVW,THSUV)..(EPT,GEN,IND);KUN50,6#,TGN51,61..SUVW..(IND,KZS,MA,PHL,PKN,VN)201107-201703
PAINT REQ.
PAINT REQ.
PAINT REQ.; PAINT REQ.,BACK MONITOR-WITHOUT
PAINT REQ.
52161BPIECE, REAR BUMPER
52169BBRACKET, REAR BUMPER, CENTER
main52169-0K020×2iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN201107
52191BGROMMET, REAR BUMPER STAY
52346FRAME, BACK STEP, REAR
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
7652SPOILER & SIDE MUDGUARD
8115REFLEX REFLECTOR
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
SUPER WHITE 2,040
main89348-33060-A2×2iKUN51,60,TGN61..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408
BACK MONITOR-WITHOUT,WHITE PEARL CS.,070; WHITE PEARL CS.,070
main89348-33060-B1×2iKUN60..RHD..GEN;TGN61..4FC..HTWCF;KUN51,TGN61..(5F,5FC)..DLX;KUN60..(4FC,5F)..(IDN,PHL,TH);GGN50,KUN51..(4FC,5FC)..(GCC,PHL);KUN50,TGN51,61..CO,GCC,GEN,IDN,PHL; TGN61..4FC..HTWC..LA;KUN51..SUVW..(5F,5FC)..DCR..LA201501-201510
SEAT COVER MATERIAL-LEATHER,SILVER ME.,1D6; SILVER ME.,1D6
main89348-33060-B5×2iKUN60..RHD..GEN;TGN61..4FC..HTWCF;KUN51,TGN61..(5F,5FC)..DLX;KUN60..(4FC,5F)..(IDN,PHL,TH);GGN50,KUN51..(4FC,5FC)..(GCC,PHL);KUN50,TGN51,61..CO,GCC,GEN,IDN,PHL; TGN61..4FC..HTWC..LA;KUN51..SUVW..(5F,5FC)..DCR..LA201501-201510
GRAY ME.,1G3; SEAT COVER MATERIAL-LEATHER,GRAY ME.,1G3
main89348-33060-B9×2iKUN51,60,TGN61..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408
BACK MONITOR-WITHOUT,SILVER ME.,1C0; SILVER ME.,1C0
main89348-33060-C2×2iKUN51,60,TGN61..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408
BACK MONITOR-WITHOUT,BLACK MC.,209; BLACK MC.,209
main89348-33060-C6×2iKUN60..RHD..GEN;TGN61..4FC..HTWCF;KUN51,TGN61..(5F,5FC)..DLX;KUN60..(4FC,5F)..(IDN,PHL,TH);GGN50,KUN51..(4FC,5FC)..(GCC,PHL);KUN50,TGN51,61..CO,GCC,GEN,IDN,PHL; TGN61..4FC..HTWC..LA;KUN51..SUVW..(5F,5FC)..DCR..LA201501-201510
ATTITUDE BLACK MC.,218; SEAT COVER MATERIAL-LEATHER,ATTITUDE BLACK MC.,218
main89348-33060-F2×2iKUN51,60,TGN61..PHL; KUN51,61..5FC..TH;GGN50..IDSUV..5F..GCC;KUN60,TGN61..(4FC,5FC)..TH201107-201408
BACK MONITOR-WITHOUT,SILKY GOLD M.M.,5A7; SILKY GOLD M.M.,5A7
LT.PURPLE M.M.,9AE
main89348-33060-P7×2iKUN51..4FC..TH;GGN50..SUVW..GCC;TGN61..4FC..HTWCF;TGN61..CO,GCC,GEN,IDN;GGN50..IDSUV..5FC..GCC;KUN51,TGN61..(5F,5FC)..DLX;KUN60..RHD..(4FC,5F)..(GEN,IDN,TH);KUN50,61,TGN51..(4FC,5F)..(CO,GCC,GEN,IDN,TH)201107-201510
DK. STEEL MC.,1H2
DK.GRAY M.M.,1E9
9011906536
main90119-06536
90119T0146
main90119-T0146
90119T0203
main90119-T0203
9015960266
main90159-60266
9015960313
main90159-60313
9163160816
main91631-60816
20 parts on this diagram · 1 diagram in section
