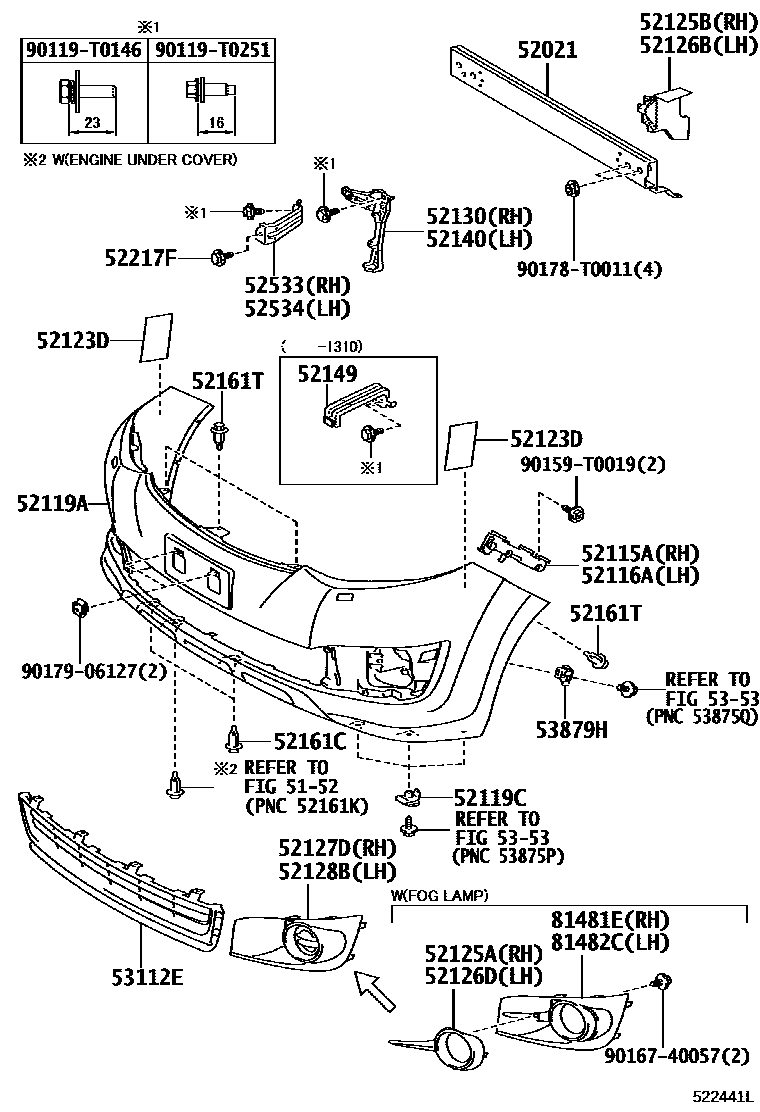

FRONT BUMPER & BUMPER STAY
5152SUSPENSION CROSSMEMBER & UNDER COVER
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-0K080iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN201107
52119ACOVER, FRONT BUMPER
PAINT REQ.
main52119-0K987supersedes 52119-0K999iKUN51..4FC..TH;KUN51..RHD..IDSUV;KUN51..SUVW..5F..(GEN,TH); KUN60..PHL,TH;KUN60..LHD..GEN;KUN61,TGN61..GEN,PHL,TH201107-201510
PAINT REQ.; PAINT REQ.,HEADLAMP-HALOGEN
PAINT REQ.
main52119-0K989iKUN51..SUVW..5F..GEN;KUN51..SUVW..(PHL,TH);KUN51..LHD..SUVW..GEN;GGN50,KUN51..(IDSUV,THSUV)..(GEN,LA,PHL); KUN60..LHD..GEN;KUN60..SUVW..PHL;TGN61..IDSUV..GEN;TGN61..SUVW..(GEN,PHL)201107-201510
PAINT REQ.; PAINT REQ.,HEADLAMP-DISCHARGE
PAINT REQ.
PAINT REQ.
PAINT REQ.
main52119-0K997iGGN50..IDSUV..GCC; TGN51,61..IDSUV..GCC; TGN51..SUVW..IDN;TGN51..RHD..IDSUV;KUN50,60,TGN61..IDN;KUN60..RHD..IDSUV..GEN201107-201510
PAINT REQ.; PAINT REQ.,FRONT FOG LAMP-WITH(51W OR 55W); PAINT REQ.,HEADLAMP-HALOGEN
main52119-0K998iTGN61..GCC,VN;TGN51..IDSUV..GCC;GGN50,KUN50,60..EPT,MA,VN;KUN60..RHD..SUVW..(GEN,IND);TGN51..SUVW..(EPT,GCC,GEN,KZS,MA,PKN)201107-201703
PAINT REQ.
PAINT REQ.
52119CCLIP, FRONT BUMPER COVER
52123DPLATE, FRONT BUMPER REINFORCEMENT
main52123-0K010×2iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN201107
52125ABRACKET, FOG LAMP MOUNTING, RH
main52125-0K240iGGN50,KUN60..LHD..(GCC,GEN);KUN51,TGN61..RHD..IDSUV..4FC..GEN; KUN5#,60,TGN51,61..IDN,PHL; KUN60..RHD..GEN;KUN51..LHD..IDSUV..GEN201408-201510
FRONT FOG LAMP-WITH(SILVER BEZEL); HEADLAMP-DISCHARGE(SMOKED)&FRONT FOG LAMP-WITH(SILVER BEZEL); HEADLAMP-PROJECTOR(SMOKED)&FRONT FOG LAMP-WITH(SILVER BEZEL)
FRONT FOG LAMP-WITH(SILVER BEZEL)
52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH
52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH
52126DBRACKET, FOG LAMP MOUNTING, LH
main52126-0K240iGGN50,KUN60..LHD..(GCC,GEN);KUN51,TGN61..RHD..IDSUV..4FC..GEN; KUN5#,60,TGN51,61..IDN,PHL; KUN60..RHD..GEN;KUN51..LHD..IDSUV..GEN201408-201510
FRONT FOG LAMP-WITH(SILVER BEZEL); HEADLAMP-DISCHARGE(SMOKED)&FRONT FOG LAMP-WITH(SILVER BEZEL); HEADLAMP-PROJECTOR(SMOKED)&FRONT FOG LAMP-WITH(SILVER BEZEL)
FRONT FOG LAMP-WITH(SILVER BEZEL)
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
main52130-0K010iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN201107
52140BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
main52140-0K010iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN201107
52149BRACKET, FRONT BUMPER, INNER
52161CPIECE, FRONT BUMPER
main52161-0K050×2iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN201107
52161TPIECE, FRONT BUMPER
52217FBOLT, BODY MOUNTING
52533BRACKET, FRONT BUMPER RETAINER, NO.1
main52533-0K070iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN201107
52534BRACKET, FRONT BUMPER RETAINER, NO.2
main52534-0K040iGGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN201107
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
5353HOOD & FRONT FENDER
53879HRETAINER, FRONT FENDER LINER
81481ECOVER, FOG LAMP, RH
FRONT FOG LAMP-WITH(SILVER BEZEL)
main52127-0K440iGGN50,KUN60..LHD..(GCC,GEN);KUN51,TGN61..RHD..IDSUV..4FC..GEN; KUN5#,60,TGN51,61..IDN,PHL; KUN60..RHD..GEN;KUN51..LHD..IDSUV..GEN201408-201510
FRONT FOG LAMP-WITH(SILVER BEZEL); HEADLAMP-DISCHARGE(SMOKED)&FRONT FOG LAMP-WITH(SILVER BEZEL); HEADLAMP-PROJECTOR(SMOKED)&FRONT FOG LAMP-WITH(SILVER BEZEL)
81482CCOVER, FOG LAMP, LH
main52128-0K440iGGN50,KUN60..LHD..(GCC,GEN);KUN51,TGN61..RHD..IDSUV..4FC..GEN; KUN5#,60,TGN51,61..IDN,PHL; KUN60..RHD..GEN;KUN51..LHD..IDSUV..GEN201408-201510
FRONT FOG LAMP-WITH(SILVER BEZEL); HEADLAMP-DISCHARGE(SMOKED)&FRONT FOG LAMP-WITH(SILVER BEZEL); HEADLAMP-PROJECTOR(SMOKED)&FRONT FOG LAMP-WITH(SILVER BEZEL)
90119T0146
main90119-T0146
90119T0251
main90119-T0251
90159T0019
main90159-T0019
9016740057
main90167-40057
90178T0011
main90178-T0011
9017906127
main90179-06127
32 parts on this diagram · 1 diagram in section
