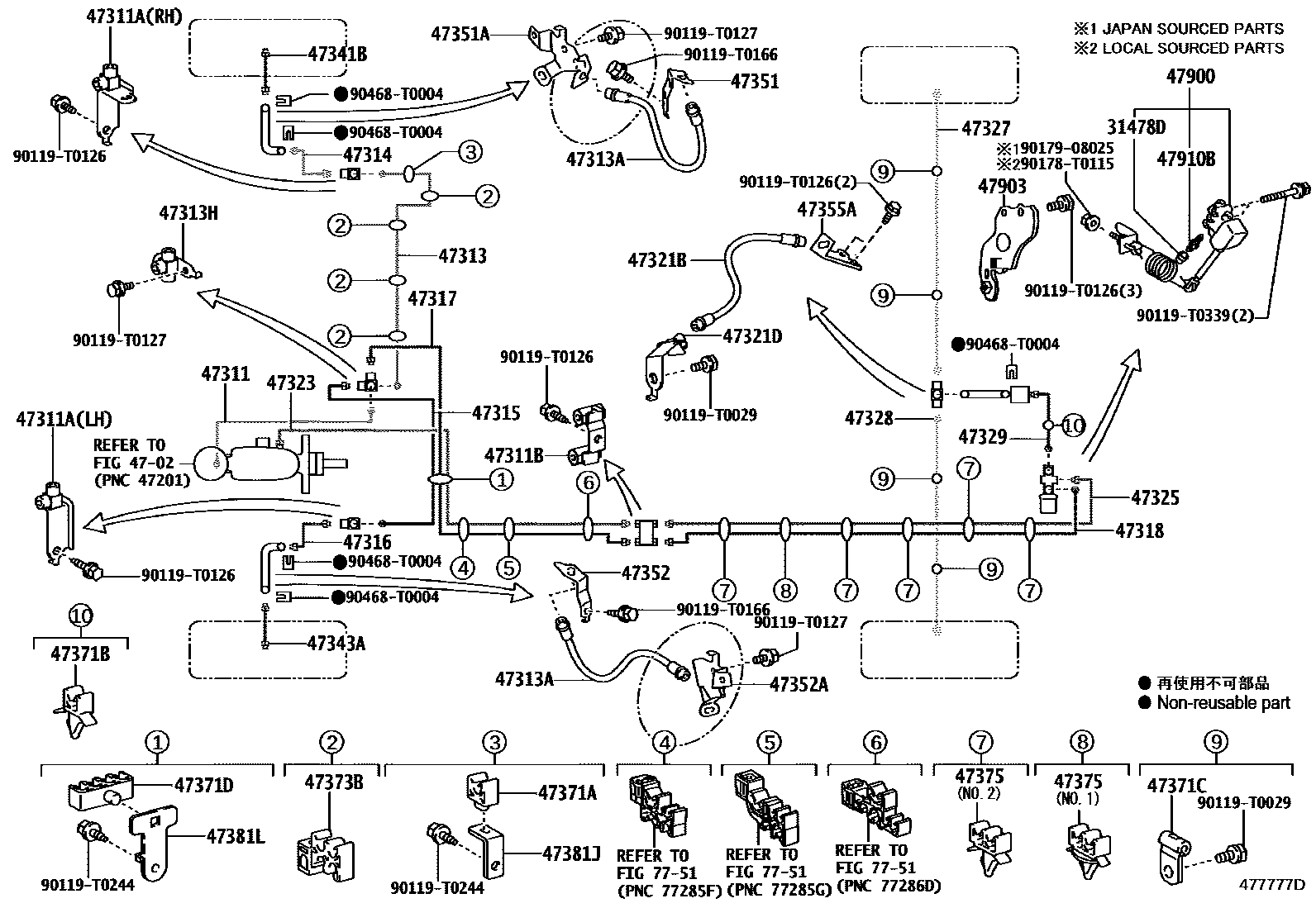

BRAKE TUBE & CLAMP

0001 1 0002 1W(ABS) 0003 1W(ABS) 0006 1W(ABS) 0008 1W(ABS) 0010 1W(VSC) 0011 1W(VSC) 0012 1W(ABS) 0016 1W(VSC) 0017 1W(VSC)

31478DCAP, BLEEDER PLUG(FOR LSPV)

main31478-0D040iKUN6#..(5F,5FC)..IND201107-201608

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-0K010iKUN51..RHD..SASUV;KUN51,6#..RHD..5F..SA201310-201609

main47311-0K020iKUN51..RHD..SASUV;KUN51,6#,LAN50..RHD..5F..SA201108-201310

main47311-0K030iGGN50..IDSUV..LA;KUN51..IDSUV..4FC..LA;KUN51..LHD..(IDSUV,THSUV)..(5F,5FC);GGN50,KUN60,TGN51,61..LHD..(GCC,GEN,PHL);KUN51..LHD..(IDSUV,SUVW,THSUV)..4FC..(GEN,PHL,SA)201107

main47311-0K041iKUN51..DLX;TGN51..4FC..CO;TGN51..5F..(CO,SA);KUN51..SUVW..DCR..(CO,LA);GGN50,TGN61..SUVW..(4FC,5F)..(CO,LA)201108-201510

main47311-0K070iGGN50,60..ANCOM201204-201609

main47311-0K150iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);GGN50,60,KUN51..RHD..(4FC,5FC)..(IND,SA,TH)201107-201608

main47311-0K160iGGN50,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA)201110-201510

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10251iKUN51,6#..(5F,5FC)..IND201107-201608

RH

main90412-10252iTGN51..KZS201107-201703

LH

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10253iKUN51,6#..(5F,5FC)..IND201107-201608

47313TUBE, FRONT BRAKE, NO.3

main47313-0K010iKUN51..RHD..GEN;KUN6#..4FC..(IDN,IND);KUN50,LAN50,TGN51,61..RHD;KUN51,61..RHD..5F..(SA,TH);KUN60..RHD..(5F,5FC)..(GEN,IDN,SA,TH)201107-201609

main47313-0K040supersedes 47313-0K060iTGN51..KZS201107-201703

main47313-0K100iGGN50,60..ANCOM201204-201609

main47313-0K130iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);GGN50,60,KUN51..RHD..(4FC,5FC)..(IND,SA,TH)201107-201608

main47313-0K140iGGN50,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA)201110-201510

main47313-0K050iGGN50..GCC; TGN61..GCC;TGN51..4FC..GCC;TGN51..SUVW..5F..GCC201107-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94029×2iGGN50,TGN51..EPT201107-201612

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90413-10309iKUN51..RHD..GEN;KUN6#..4FC..(IDN,IND);KUN50,LAN50,TGN51,61..RHD;KUN51,61..RHD..5F..(SA,TH);KUN60..RHD..(5F,5FC)..(GEN,IDN,SA,TH)201107-201609

main90413-10312supersedes 90414-10055iKUN60,TGN51,61..VN201107-201611

main90414-10055iGGN50..GCC; TGN61..GCC;TGN51..4FC..GCC;TGN51..SUVW..5F..GCC201107-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

47314TUBE, FRONT BRAKE, NO.4

main47314-0K030iKUN51,6#..(5F,5FC)..IND201107-201608

main47314-0K050iGGN50,60..ANCOM201204-201609

47315TUBE, FRONT BRAKE, NO.5

main47315-0K010iKUN6#..(5F,5FC)..IND201107-201608

main47315-0K040supersedes 47315-0K060iGGN50,TGN51..EPT201107-201612

main47315-0K100iGGN50,60..ANCOM201204-201609

main47315-0K140iGGN50,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA)201110-201510

main47315-0K150iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);GGN50,60,KUN51..RHD..(4FC,5FC)..(IND,SA,TH)201107-201608

main47315-0K050iGGN50..GCC; TGN61..GCC;TGN51..4FC..GCC;TGN51..SUVW..5F..GCC201107-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

47316TUBE, FRONT BRAKE, NO.6

main47316-0K030iKUN51,6#..(5F,5FC)..IND201107-201608

main47316-0K050iGGN50,60..ANCOM201204-201609

47317TUBE, FRONT BRAKE, NO.7

main47317-0K010iKUN51..RHD..SASUV;KUN51,6#..RHD..5F..SA201310-201609

main47317-0K020iKUN60,TGN51,61..VN201107-201611

main47317-0K030iKUN51..DLX;TGN51..4FC..CO;TGN51..5F..(CO,SA);KUN51..SUVW..DCR..(CO,LA);GGN50,TGN61..SUVW..(4FC,5F)..(CO,LA)201108-201510

main47317-0K050iKUN51..RHD..SASUV;KUN51,6#,LAN50..RHD..5F..SA201108-201310

main47317-0K060iGGN50,60..ANCOM201204-201609

47318TUBE, FRONT BRAKE, NO.8

main47318-0K080iKUN50,TGN51..MA201109-201601

main47318-0K090iTGN51..PKN201107-201609

main47318-0K100iGGN50,60..ANCOM201204-201609

main47318-0K110iKUN60,TGN51,61..VN201110-201611

47321TUBE, REAR BRAKE, NO.1

main47321-0K010iKUN6#..(5F,5FC)..IND201107-201608

main47321-0K020iKUN51..RHD..SASUV;KUN51,6#,LAN50..RHD..5F..SA201108-201310

main47321-0K030iKUN60,TGN51,61..VN201107-201611

main47321-0K040iTGN51..4FC..SA;KUN51..LHD..SASUV;KUN51,LAN50..LHD..SA201108-201310

main47321-0K060iGGN50,60..ANCOM201204-201609

main47321-0K110iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);GGN50,60,KUN51..RHD..(4FC,5FC)..(IND,SA,TH)201107-201608

main47321-0K120iGGN50,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA)201110-201510

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2012iKUN6#..(5F,5FC)..IND201107-201608

main90947-T2059iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201608

NO.1

main90947-T2060iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201608

NO.2

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10310iGGN50,TGN51..EPT201107-201612

47323TUBE, REAR BRAKE, NO.3

main47323-0K010iKUN6#..(5F,5FC)..IND201107-201608

main47323-0K040supersedes 47323-0K050iTGN51..KZS201107-201703

main47323-0K100iGGN50,60..ANCOM201204-201609

main47323-0K130iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);GGN50,60,KUN51..RHD..(4FC,5FC)..(IND,SA,TH)201107-201608

main47323-0K140iGGN50,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA)201110-201510

main47323-0K050iGGN50..GCC; TGN61..GCC;TGN51..4FC..GCC;TGN51..SUVW..5F..GCC201107-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

47325TUBE, REAR BRAKE, NO.5

main47325-0K100iKUN50,TGN51..MA201109-201601

main47325-0K140iKUN61..5F..IND201107-201301

main47325-0K160iGGN50,60..ANCOM201204-201609

main47325-0K170iKUN51..DLX;KUN51..SUVW..DCR..(CO,LA);GGN50,TGN51,61..SUVW..(4FC,5F)..(CO,LA)201110

main47325-0K180iKUN51..IND201107-201301

main47325-0K190iKUN51..IND201301-201608

47327TUBE, REAR BRAKE, NO.7

main47327-0K060iKUN61..(5F,5FC)..IND201107-201405

main47327-0K070iGGN50,60..ANCOM201204-201609

main47327-0K110iKUN51..THSUV;KUN51,6#..RHD..5F..SA;KUN51..IDSUV..(4FC,5F)..LA;KUN51..SUVW..(5F,5FC)..DCR..LA;GGN50..(IDSUV,THSUV)..5FC..(GEN,LA); KUN60..4FC..SA;KUN51,61..RHD..(4FC,5FC)..(SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201512

VSC-WITH

main47327-0K130iKUN50,TGN51..MA201109-201601

main47327-0K160iKUN6#..IND201405-201608

main47327-0K170iKUN51..IND201405-201608

47328TUBE, REAR BRAKE, NO.8

main47328-0K060iKUN61..(5F,5FC)..IND201107-201405

main47328-0K070iGGN50,60..ANCOM201204-201609

main47328-0K110iKUN51..IND201107-201405

main47328-0K150iKUN50,TGN51..MA201109-201601

main47328-0K160iKUN6#..IND201405-201608

main47328-0K170iKUN51..IND201405-201608

47329TUBE, REAR BRAKE, NO.9

main47329-0K030iKUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH201107-201703

main47329-0K040iGGN50,60..ANCOM201204-201609

main47329-0K060iKUN61..5F..IND201301-201608

main47329-0K100iKUN51..THSUV;KUN51,6#..RHD..5F..SA;KUN51..IDSUV..(4FC,5F)..LA;KUN51..SUVW..(5F,5FC)..DCR..LA;GGN50..(IDSUV,THSUV)..5FC..(GEN,LA); KUN60..4FC..SA;KUN51,61..RHD..(4FC,5FC)..(SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201512

VSC-WITH

main47329-0K110iKUN51..IND201301-201608

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

main47341-0K030iKUN60,TGN61..GEN,IDN,PHL,TH201203-201510

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-0K010iKUN60,TGN61..IDN,PHL,TH201107-201203

main47343-0K030iKUN60,TGN61..GEN,IDN,PHL,TH201203-201510

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-0K010iTGN51..KZS201107-201703

47351ABRACKET, FLEXIBLE HOSE, FRONT RH NO.1

main47353-0K020iTGN51..KZS201107-201703

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-0K030iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

47352ABRACKET, FLEXIBLE HOSE, FRONT LH NO.1

main47354-0K020iTGN51..KZS201107-201703

47355ABRACKET, FLEXIBLE HOSE, NO.5

main47355-0K020iGGN50,TGN51..EPT201107-201612

main47355-0K030iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201608

47371ACLAMP, BRAKE TUBE, NO.1

main90949-T1011×2iKUN51..RHD..GEN;KUN6#..4FC..(IDN,IND);KUN50,LAN50,TGN51,61..RHD;KUN51,61..RHD..5F..(SA,TH);KUN60..RHD..(5F,5FC)..(GEN,IDN,SA,TH)201107-201609

47371BCLAMP, BRAKE TUBE, NO.6

main90469-T0010iKUN6#..IND201301-201608

main90949-T1005iKUN60,TGN51,61..VN201109-201611

main90949-T1007iGGN50,TGN51..EPT201107-201612

47371CCLAMP, BRAKE TUBE, NO.7

main90461-T0001×4iGGN50,60..ANCOM201609

main90461-T0002×4iGGN50,60,KUN50,TGN51..ANCOM,MA201109-201609

47371DCLAMP, BRAKE TUBE, NO.8

main90949-T1010iKUN60,TGN51,61..VN201107-201611

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1008×3iKUN51,6#..(5F,5FC)..IND201107-201608

main90949-T1012×4iKUN60,TGN51,61..VN201107-201611

47375CLAMP, BRAKE TUBE, NO.5

main90469-T0006iKUN60,TGN51,61..VN201109-201611

NO.1

main90469-T0007iKUN51,61..5F..IND201107-201301

NO.1

main90469-T0008iKUN51,6#..IND201301-201608

NO.1

main90469-T0009×6iKUN51..IND; KUN6#..IND201301-201608

NO.2

main90949-T1004×5iKUN60,TGN51,61..VN201109-201611

NO.2

main90949-T1006×5iGGN50,TGN51..EPT201107-201612

NO.2

47381JBRACKET, BRAKE TUBE CLAMP, NO.2

main90949-T2001iGGN50,60,KUN5#,6#,LAN50,TGN51,61..RHD; GGN50,60,KUN51,60,LAN50,TGN51,61..LHD201107

47381LBRACKET, BRAKE TUBE CLAMP, NO.3

main90949-T2002iKUN60,TGN51,61..VN201107-201611

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-0K050iKUN6#..(5F,5FC)..IND201107-201608

47903BRACKET SUB-ASSY, LOADSENSING VALVE

main47903-0K020iKUN6#..(5F,5FC)..IND201107-201608

47910BPLUG, BLEEDER

main47547-27030iKUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH201107

7751FUEL TANK & TUBE

→ Go to FIG 77-51

90119T0029

main90119-T0029

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0166

main90119-T0166

90119T0244

main90119-T0244

90119T0339

main90119-T0339

90178T0115

main90178-T0115

9017908025

main90179-08025

90468T0004

main90468-T0004

49 parts on this diagram · 10 diagrams in section
