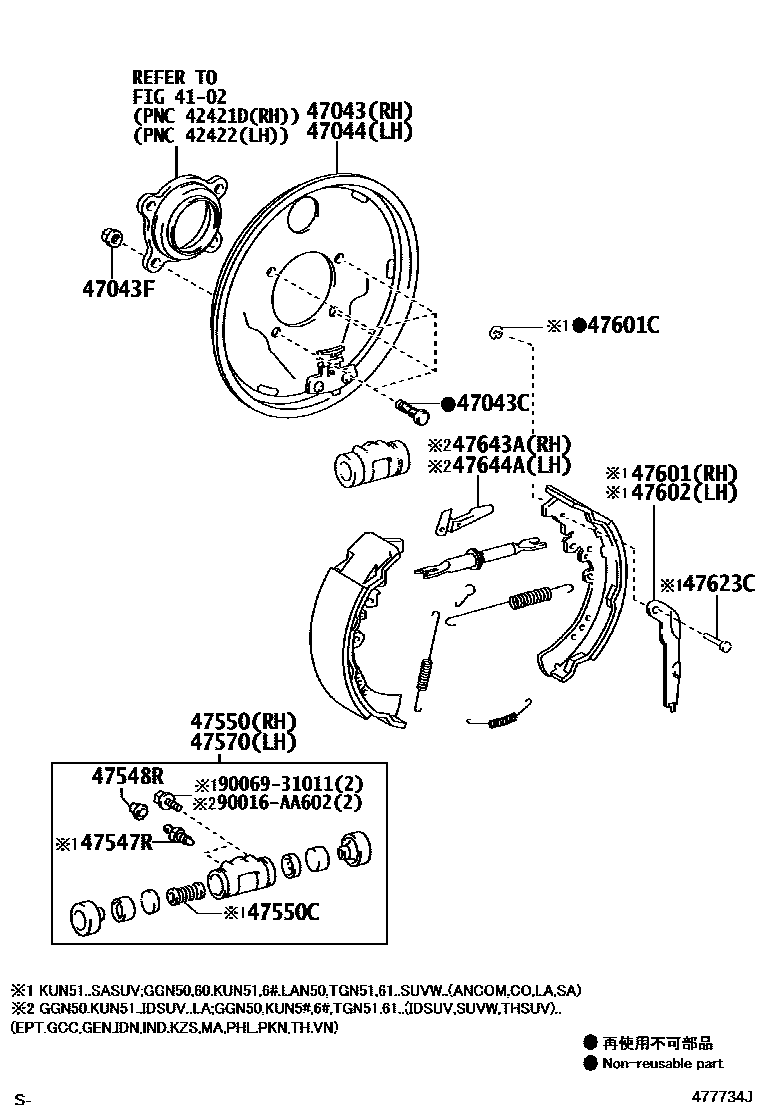

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0K050iKUN50,TGN51..MA201107-201601

main47043-0K060iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main47043-0K070iKUN51..SUVW..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..SUVW..(CO,LA)201110-201510

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-T0006iKUN51,6#..(5F,5FC)..IND201107-201703

*10-1.25PX41-18

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90178-T0077iGGN50,TGN51..EPT201107-201703

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0K050iGGN50,KUN51,6#,TGN51,61..(SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,PHL,PKN,TH,VN)201107-201601

main47044-0K060iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main47044-0K070iKUN51..4FC..CO;GGN50,60..ANCOM201110-201510

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main90069-0K072iLAN50..RHD;TGN51..5F..SA201108-201310

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-0K010iGGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,MA,PHL,PKN,TH,VN)201107-201304

main31478-0K020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main31478-0K030iGGN50,KUN51,60,TGN51,61..IDSUV..(GCC,IDN,PHL)201110-201601

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09070iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201601

main47550-09080iKUN51..SUVW..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..SUVW..(CO,LA)201110-201510

main47550-09090iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90069-51002iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201108-201310

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09070iKUN50,TGN51..MA201107-201601

main47550-09080iKUN51..4FC..CO;GGN50,60..ANCOM201110-201510

main47550-09090iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-0K060iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main47611-0K070iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

47601CWASHER, C(FOR REAR BRAKE)

main90069-52023iLAN50..RHD;TGN51..5F..SA201108-201310

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47612-0K060iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main47612-0K070iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

47623CPIN, PARKING BRAKE LEVER

main90069-35000iLAN50..RHD;TGN51..5F..SA201108-201410

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-0K050iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201601

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-0K050iGGN50,KUN5#,60,TGN51,61..IDSUV201107-201601

90016AA602

main90016-AA602

9006931011

main90069-31011

18 parts on this diagram · 2 diagrams in section
