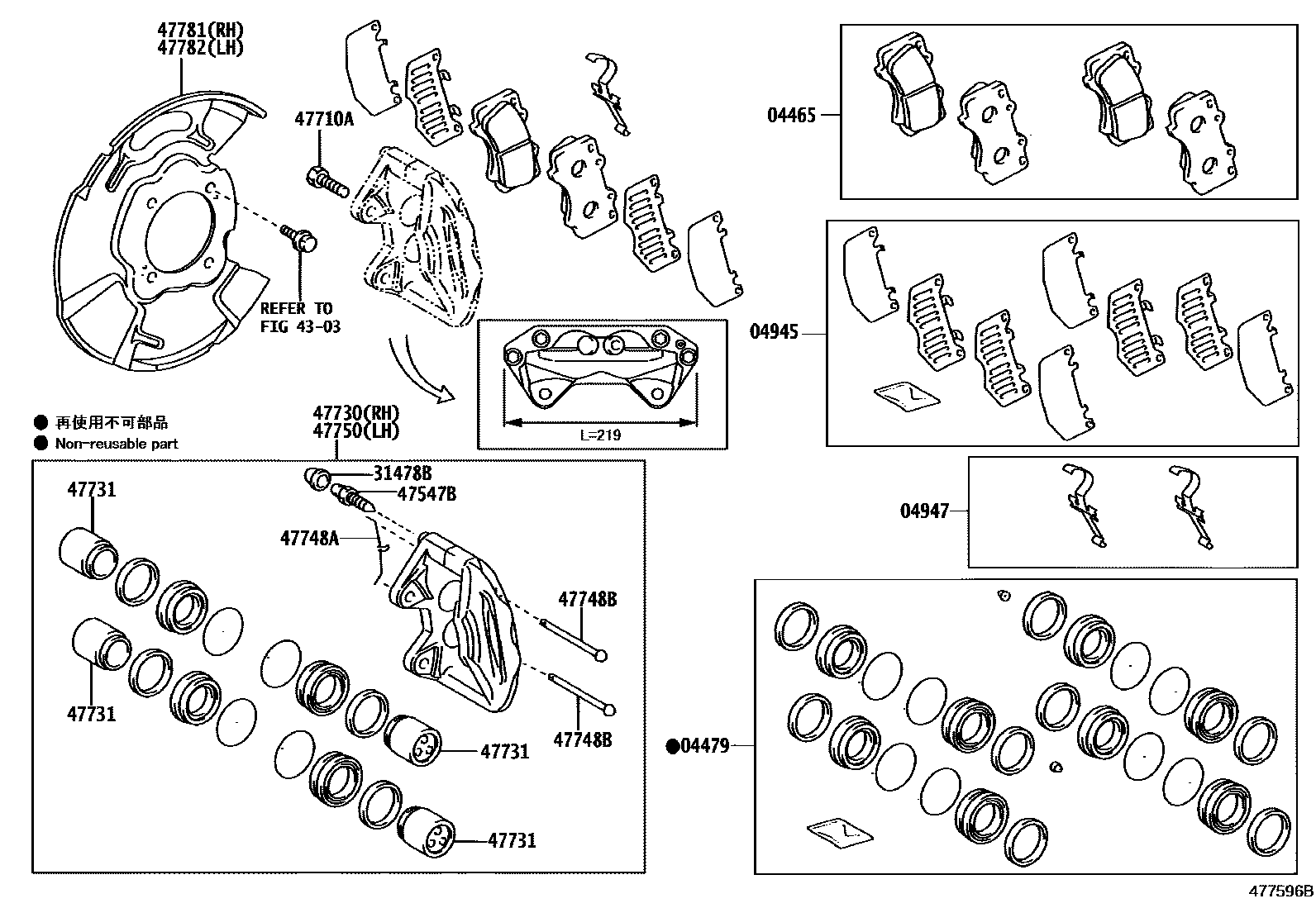

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1TYPE A 0002 1TYPE B 0003 1TYPE D

04465PAD KIT, DISC BRAKE, FRONT

main04465-0K020iKUN60,TGN61..IDN,PHL,TH201107-201203

MARK ADVICS PS558H,TYPE A:REFER ILLUST.

main04465-0K090iGGN50,KUN51..IDSUV..LA;KUN60,TGN61..GCC,IND,VN;GGN50,KUN5#,61,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201703

MARK SUMITOMO PS558H,TYPE B:REFER ILLUST.

main04465-0K280iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

MARK SUMITOMO PS558H,TYPE B:REFER ILLUST.

main04465-0K320iKUN60,TGN61..IDN,PHL,TH201201-201203

MARK ADVICS PS558H,TYPE D:REFER ILLUST.

main04465-0K340iKUN60,TGN61..GEN,IDN,PHL,TH201203-201510

MARK ADVICS PS558H,TYPE D:REFER ILLUST.

main04465-35290iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

MARK SUMITOMO PS558H,TYPE B:REFER ILLUST.

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0K130iKUN60,TGN61..GEN,IDN,PHL,TH201201-201505

TYPE D:REFER ILLUST.

main04478-0K130iKUN60,TGN61..IDN,PHL,TH201107-201203

TYPE A:REFER ILLUST.

main04478-0K140iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

TYPE B:REFER ILLUST.

main04478-0K190iGGN50,KUN51..IDSUV..LA;KUN60,TGN61..GCC,IND,VN;GGN50,KUN5#,61,TGN51..(IDSUV,SUVW)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,VN)201505-201703

TYPE B:REFER ILLUST.

main04478-0K210iKUN60,TGN61..GEN,IDN,PHL201505-201510

TYPE D:REFER ILLUST.

main04478-60050iTGN61..IDSUV..GCC;GGN50,KUN51,TGN51..IDSUV;KUN6#..(5F,5FC)..(IND,VN);TGN51,61..EPT,KZS,MA,PKN,VN;GGN50,KUN5#..EPT,IDN,IND,MA201107-201512

TYPE B:REFER ILLUST.

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0K150iKUN60,TGN61..IDN,PHL,TH201107-201203

TYPE A:REFER ILLUST.

main04945-0K220iGGN50,KUN51..IDSUV..LA;KUN60,TGN61..GCC,IND,VN;GGN50,KUN5#,61,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201703

TYPE B:REFER ILLUST.

main04945-0K240iKUN60,TGN61..GEN,IDN,PHL,TH201201-201510

TYPE D:REFER ILLUST.

main04945-0K260iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

TYPE B:REFER ILLUST.

main04945-35120iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

TYPE B:REFER ILLUST.

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0K040iKUN60,TGN61..GEN,IDN,PHL,TH201201-201510

TYPE D:REFER ILLUST.

main04947-0K050iGGN50,KUN51,TGN61..LA201110-201111

TYPE B:REFER ILLUST.

main04947-0K100iGGN50,KUN51,6#,TGN51,61..EPT,IND,KZS,PKN,VN201601-201703

TYPE B:REFER ILLUST.

main04947-35050iGGN50,KUN51..IDSUV..LA;KUN60,TGN61..GCC,IND,SA,VN;GGN50,60,KUN5#,61,LAN50,TGN51..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201601

TYPE B:REFER ILLUST.

main04947-60080iKUN60,TGN61..IDN,PHL,TH201107-201203

TYPE A:REFER ILLUST.

main04947-71010iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201111

TYPE B:REFER ILLUST.

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0K030iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

TYPE B:REFER ILLUST.

main31478-30010iGGN50,KUN51..IDSUV..LA;KUN60,TGN61..GCC,IND,SA,VN;GGN50,60,KUN5#,61,LAN50,TGN51..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201107-201703

TYPE B:REFER ILLUST.

main31478-30010iKUN60,TGN61..IDN,PHL,TH201107-201203

TYPE A:REFER ILLUST.

main31478-30010iKUN60,TGN61..GEN,IDN,PHL,TH201201-201510

TYPE D:REFER ILLUST.

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iKUN60,TGN61..IDN,PHL,TH201107-201203

TYPE A:REFER ILLUST.

main47547-20030iKUN60,TGN61..GEN,IDN,PHL,TH201201-201510

TYPE D:REFER ILLUST.

main47547-27030iGGN50,KUN51..IDSUV..LA;KUN60,TGN61..GCC,IND,VN;GGN50,KUN5#,61,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201703

TYPE B:REFER ILLUST.

main47547-35020iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

TYPE B:REFER ILLUST.

main90069-39011iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

TYPE B:REFER ILLUST.

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107

*12-1.25PX35-27

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0K061iKUN60,TGN61..IDN,PHL,TH201107-201203

TYPE A:REFER ILLUST.

main47730-0K130iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

TYPE B:REFER ILLUST.

main47730-0K140iGGN50,KUN51..IDSUV..LA;KUN60,TGN61..GCC,IND,VN;GGN50,KUN5#,61,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201703

TYPE B:REFER ILLUST.

main47730-0K190iKUN60,TGN61..GEN,IDN,PHL,TH201201-201510

TYPE D:REFER ILLUST.

main47730-71010iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

TYPE B:REFER ILLUST.

47731PISTON, FRONT DISC BRAKE

main47731-0K060iKUN60,TGN61..IDN,PHL,TH201107-201203

TYPE A:REFER ILLUST.

main47731-0K060iKUN60,TGN61..GEN,IDN,PHL,TH201201-201510

TYPE D:REFER ILLUST.

main47731-0K130iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

TYPE B:REFER ILLUST.

main47731-35040iGGN50,KUN51..IDSUV..LA;GGN60,KUN50,60,LAN50,TGN61..GCC,MA,SA,VN;GGN50,KUN51,61,TGN51..EPT,GCC,GEN,IDN,IND,MA,PHL,PKN,SA,TH,VN201107-201403

TYPE B:REFER ILLUST.

main47731-71010iGGN50,KUN51..IDSUV..LA;KUN60,TGN61..GCC,IND,SA,VN;GGN50,60,KUN5#,61,LAN50,TGN51..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201403-201703

TYPE B:REFER ILLUST.

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-0K190iKUN60,TGN61..GEN,IDN,PHL,TH201201-201510

TYPE D:REFER ILLUST.

main47748-0K300iGGN50,KUN51,6#,TGN51,61..EPT,IND,KZS,PKN,VN201601-201703

TYPE B:REFER ILLUST.

main47748-35010iGGN50,KUN51..IDSUV..LA;KUN60,TGN61..GCC,IND,VN;GGN50,KUN5#,61,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201601

TYPE B:REFER ILLUST.

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12015iKUN60,TGN61..IDN,PHL,TH201107-201203

TYPE A:REFER ILLUST.

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90016-AE601iKUN60,TGN61..GEN,IDN,PHL201505-201510

TYPE D:REFER ILLUST.

main90016-AE602iGGN50,KUN51..IDSUV..LA;KUN60,TGN61..GCC,IND,VN;GGN50,KUN5#,61,TGN51..(IDSUV,SUVW)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,VN)201505-201703

TYPE B:REFER ILLUST.

main90069-35001iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

TYPE B:REFER ILLUST.

main90240-06014iKUN60,TGN61..GEN,IDN,PHL,TH201201-201505

TYPE D:REFER ILLUST.

main90240-06014iKUN60,TGN61..IDN,PHL,TH201107-201203

TYPE A:REFER ILLUST.

main90240-06158iKUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN60,KUN60,LAN50,TGN61..SUVW..(GCC,SA);GGN50,KUN51,TGN51..(SASUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,SA,TH)201107-201512

TYPE B:REFER ILLUST.

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0K061iKUN60,TGN61..IDN,PHL,TH201107-201203

TYPE A:REFER ILLUST.

main47750-0K130iGGN50,60,KUN51,TGN51,61..SUVW..(ANCOM,CO,LA)201110

TYPE B:REFER ILLUST.

main47750-0K140iGGN50,KUN51..IDSUV..LA;KUN60,TGN61..GCC,IND,VN;GGN50,KUN5#,61,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201703

TYPE B:REFER ILLUST.

main47750-0K190iKUN60,TGN61..GEN,IDN,PHL,TH201201-201510

TYPE D:REFER ILLUST.

main47750-71010iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

TYPE B:REFER ILLUST.

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0K031iKUN60,TGN61..IDN,PHL,TH201107-201203

PNC 47730=TYPE A

main47781-0K050iGGN50,60,KUN5#,61,LAN50,TGN51;KUN60,TGN61..CO,GCC,IND,LA,SA,VN201107

PNC47730=TYPE B OR D

main47781-0K070iKUN60,TGN61..GEN,IDN,PHL,TH201201

PNC 47730=TYPE D

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0K031iKUN60,TGN61..IDN,PHL,TH201107-201203

PNC 47750=TYPE A

main47782-0K050iGGN50,60,KUN5#,61,LAN50,TGN51;KUN60,TGN61..CO,GCC,IND,LA,SA,VN201107

PNC47750=TYPE B OR D

main47782-0K070iKUN60,TGN61..GEN,IDN,PHL,TH201201

PNC 47750=TYPE D
