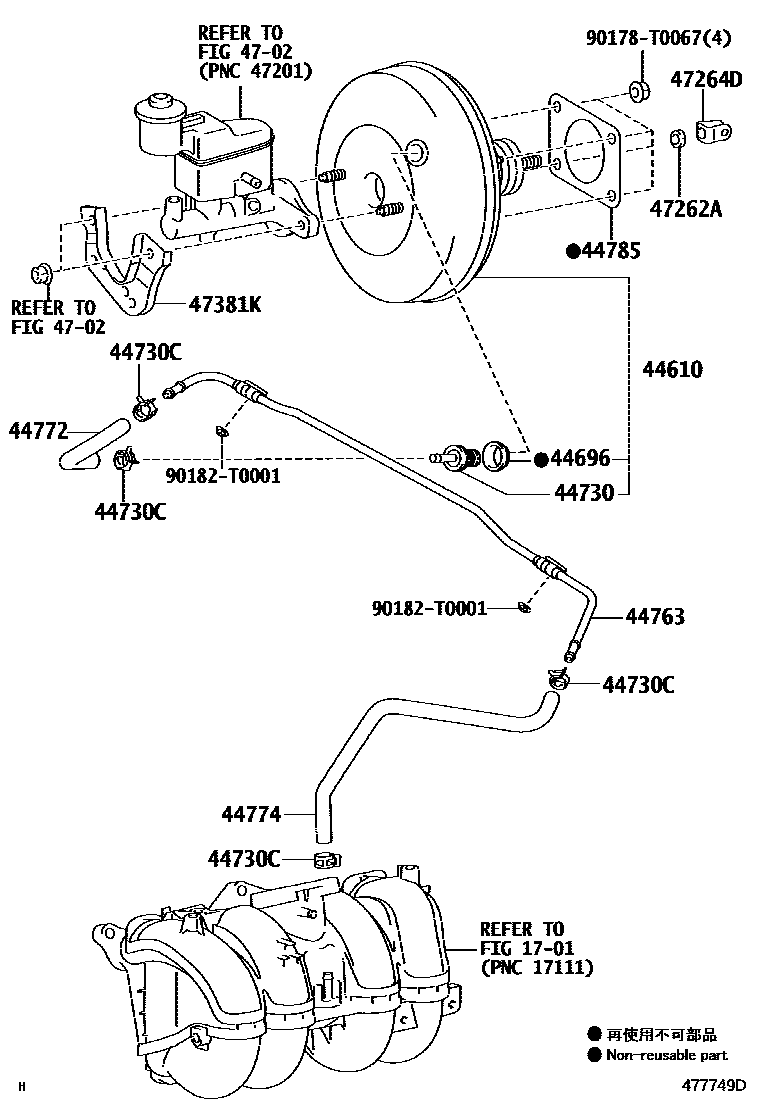

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1W(VSC) 0004 1 0005 1W(VSC) 0006 1 0007 1 0008 1W(VSC) 0009 1 0010 1 0011 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-09810iTGN51..4FC..CO;TGN51..5F..(CO,SA);GGN50,TGN61..SUVW..(4FC,5F)..(CO,LA)201108-201403

main44610-09820iKUN51..LHD..SASUV;KUN51,LAN50..LHD..SA201108-201310

main44610-09A90iKUN51..RHD..SASUV;KUN51,6#,LAN50..RHD..5F..SA201108-201310

main44610-09C50iGGN50,TGN51,61..SUVW..(4FC,5F)..(CO,LA)201403-201510

main44610-09C60iKUN51..DLX;KUN51..SUVW..DCR..(CO,LA)201403-201510

main44610-0K110iTGN61..RHD201107-201510

main44610-0K140iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH)201107-201608

main44610-0K150iKUN51..SR..IART201204-201510

main44610-0K160iGGN50..SUVW..5FC..(CO,LA)201110-201510

main44610-0K180iKUN51..5F..TH;KUN60..RHD..SR;KUN50,61..IDN,IND,MA;KUN51..RHD..(IDSUV,SUVW)..GEN201107-201608

main44610-0K190iKUN60..LHD;KUN51..IDSUV..4FC..LA;KUN51..LHD..(IDSUV,THSUV)..(5F,5FC);KUN51..LHD..(IDSUV,SUVW,THSUV)..4FC..(GEN,PHL,SA)201107-201611

main44610-0K200iTGN51..RHD201107-201609

main44610-0K210iGGN50..IDSUV..LA;GGN50,60,TGN51,61..LHD..(ANCOM,EPT,GCC,GEN,KZS,VN)201107

main44610-0K220iTGN61..PHL201107-201510

main44610-09B10supersedes 44610-0K130iGGN50,60..SA201210-201310

VSC-WITHOUT

44696GROMMET, CHECK VALVE

main90080-48050iKUN51..5F..IND;KUN60..4FC..SA;KUN51..SR..IART;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH); KUN6#..(5F,5FC)..IND201107-201608

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iKUN51,6#..(5F,5FC)..IND201107-201608

44730CCLIP(FOR VACUUM HOSE)

main90466-T0019×6iLAN50..LHD;KUN5#,6#..RHD201107-201608

44763TUBE, BOOSTER VACUUM

main44763-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

main44763-0K030iLAN50..LHD201108-201512

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0K010iKUN51..RHD..SASUV;KUN51,6#..RHD..5F..SA201310-201609

main44772-0K020iKUN51..RHD..SASUV;KUN51,6#..RHD..5F..SA201108-201310

main44772-0K030iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);GGN50,60,KUN51..RHD..(4FC,5FC)..(IND,SA,TH)201107-201502

main44772-0K031iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);GGN50,60,KUN51..RHD..SUVW..(4FC,5FC)201503-201608

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0K010iTGN51,61..RHD201107-201609

main44774-0K020iKUN51..4FC..CO;KUN61..4FC..(IND,TH);KUN60..SUVW..(GEN,IDN,PHL);KUN51..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)201107-201608

main44774-0K021iKUN5#,6#..(SASUV,SUVW)..(CO,GEN,LA,MA,SA,TH,VN)201503-201611

main44774-0K030iGGN50,60..SA201108-201512

44785GASKET, BRAKE BOOSTER

main44785-17010iKUN50,TGN51..MA201107-201510

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main47262-0K010iLAN50..LHD;KUN51..SASUV;TGN51..4FC..SA;KUN51,6#..5F..SA201108-201310

main90016-AC101iGGN50,TGN51..EPT201107-201612

(L)

main90179-10065iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201608

main94120-41000iGGN50,TGN51..EPT201107-201612

(J)

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0K010iGGN50,TGN51..EPT201107-201612

main47264-0K020iLAN50..RHD;KUN51..DLX;TGN51..4FC..CO;TGN51..5F..(CO,SA);KUN51..SUVW..DCR..(CO,LA);GGN50,TGN61..SUVW..(4FC,5F)..(CO,LA)201108-201510

main47264-0K050iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201608

47381KBRACKET, BRAKE BOOSTER TUBE CLAMP

main47381-09020iLAN50..LHD;KUN51..SASUV;TGN51..4FC..SA;KUN51,6#..5F..SA201108-201310

main47381-0K010iKUN60,TGN51,61..VN201107-201611

90178T0067

main90178-T0067

90182T0001

main90182-T0001

15 parts on this diagram · 11 diagrams in section
