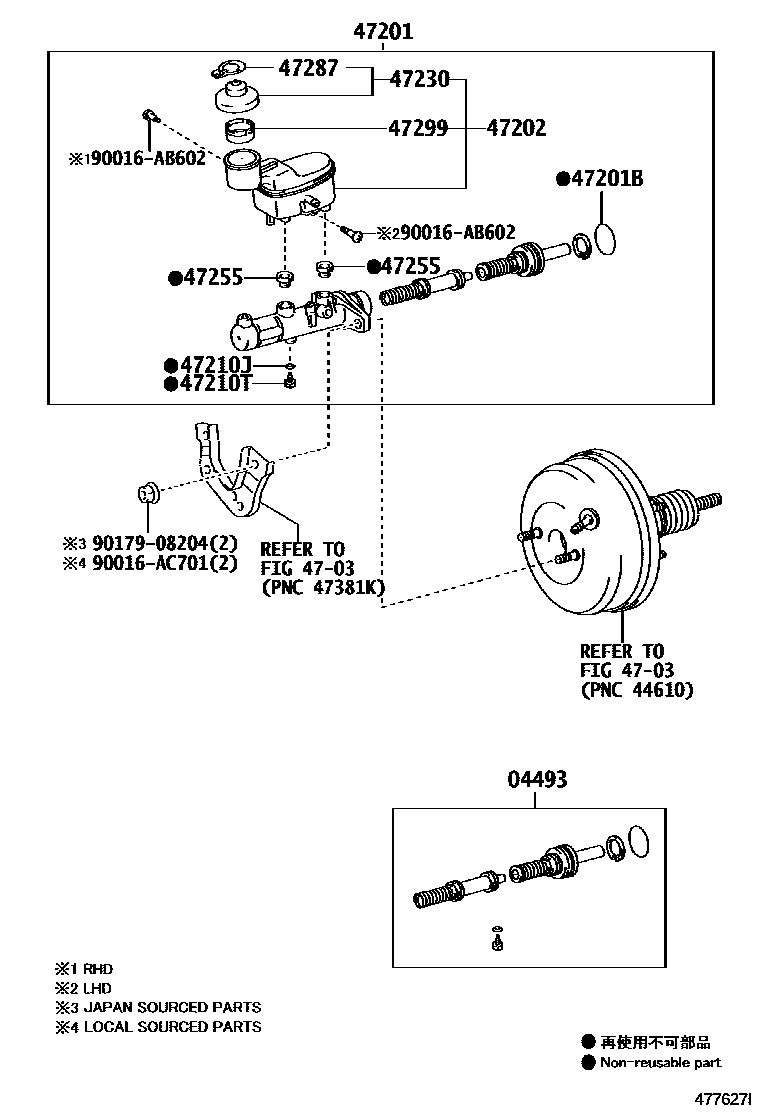

BRAKE MASTER CYLINDER

0001 1 0006 1W(VSC) 0009 1

04493CYLINDER KIT, BRAKE MASTER

main04493-0K010iKUN6#..(5F,5FC)..IND201107-201608

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09200iKUN51..RHD..SASUV201204-201310

main47201-09210iTGN51..5F..(CO,SA);GGN50,KUN51,TGN61..SUVW..5F..(CO,LA)201108-201510

main47201-09230iKUN51,6#,LAN50..RHD..5F..SA201108-201310

main47201-09240iKUN51..DLX;KUN51,TGN51,61..SUVW..(4FC,5FC)..(DCR,HTWC,HTWCF)..(CO,LA)201110-201510

main47201-0K010iKUN6#..5FC..IND201107-201608

main47201-0K020iKUN51..RHD..5F..(GEN,TH);KUN6#..RHD..5F..(GEN,IDN,IND,TH)201107-201608

main47201-0K030iGGN50,TGN51..EPT201107-201612

main47201-0K040iKUN51..LHD..(IDSUV,THSUV)..5F;GGN50,KUN60,TGN51,61..LHD..5F..SR..(GCC,GEN,KZS,LA,PHL)201107-201703

main47201-0K140iGGN50,60,KUN51,61..(4FC,5FC)..(SA,TH)201107-201202

main47201-0K141iGGN50,60,KUN51,61..(4FC,5FC)..(SA,TH)201203-201207

main47201-0K142iKUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);GGN50,60,KUN51..RHD..(4FC,5FC)..(IND,SA,TH)201208-201608

main47201-0K150iKUN51..IND201201-201202

main47201-0K151iKUN51..IND201203-201207

VSC-WITH

main47201-0K152supersedes 47201-0K020iKUN51..5F..IND201208-201608

main47201-0K160iGGN50..5FC..(CO,LA)201110-201202

main47201-0K161iGGN50,KUN51..5FC..SR..(CO,LA)201203-201207

VSC-WITH

main47201-0K162iKUN51..THSUV..4FC;KUN51..IDSUV..4FC..LA;KUN51..SUVW..5FC..DCR..LA;GGN50..(IDSUV,THSUV)..5FC..(GEN,LA)201208-201510

VSC-WITH

main47201-0K170iKUN51..5F..(GEN,LA)201107-201202

VSC-WITH

main47201-0K171iKUN51..(SUVW,THSUV)..5F..(GEN,LA)201203-201207

VSC-WITH

main47201-0K172iKUN51..LHD..(IDSUV,SUVW,THSUV)..5F..(GEN,LA)201208-201510

VSC-WITH

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201608

main90016-AH901iKUN6#..(5F,5FC)..IND201107-201608

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09070iKUN51..DLX;KUN51,TGN51,61..SUVW..(4FC,5FC)..(DCR,HTWC,HTWCF)..(CO,LA)201110-201510

main47220-09080iLAN50..RHD;TGN51..5F..(CO,SA);GGN50,KUN51,TGN61..SUVW..5F..(CO,LA)201108-201510

main47220-0K010iTGN51..SA;KUN51..SASUV..4FC201310

main47220-0K020iKUN60..VN201107-201611

main47220-0K080iKUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201608

main47220-0K090iKUN51..5F..IND201201-201608

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iKUN60,TGN51,61..VN201107-201611

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iKUN6#..(5F,5FC)..IND201107-201608

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iTGN51..PKN201508-201609

main47230-0K010iLAN50..RHD;KUN51..DLX;GGN50..5F..CO;TGN51..5F..SA;KUN61..4FC..(IND,TH);KUN51..LHD..SUVW..5FC..DCR;TGN61..SUVW..(CO,GCC,GEN,IDN,LA,PHL);GGN50,KUN60..(SUVW,THSUV)..(G201107-201510

main47230-0K011iGGN50..5FC..CO;KUN51..IDSUV..LA;GGN50,KUN51..SR..(HTWC,IART)..(ANCOM,EPT,GCC,LA,SA);GGN60,KUN5#,6#,LAN50,TGN51,61..ANCOM,EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN201502-201508

VSC-WITH

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iGGN50,TGN51..EPT201107-201612

main90016-AT001×2iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201608

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGGN50,TGN51..EPT201508-201612

main47287-20010iGGN50..5FC..CO;TGN51..4FC..SA;KUN51..IDSUV,SASUV;KUN51,60..IND,SA,VN;KUN61..(5F,5FC)..IND;TGN51..EPT,KZS,MA,PKN,VN;GGN50,60,KUN50,61..ANCOM,EPT,IDN,LA,MA,SA;GGN50,K201107-201508

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

90016AB602

main90016-AB602

90016AC701

main90016-AC701

9017908204

main90179-08204

14 parts on this diagram · 3 diagrams in section
