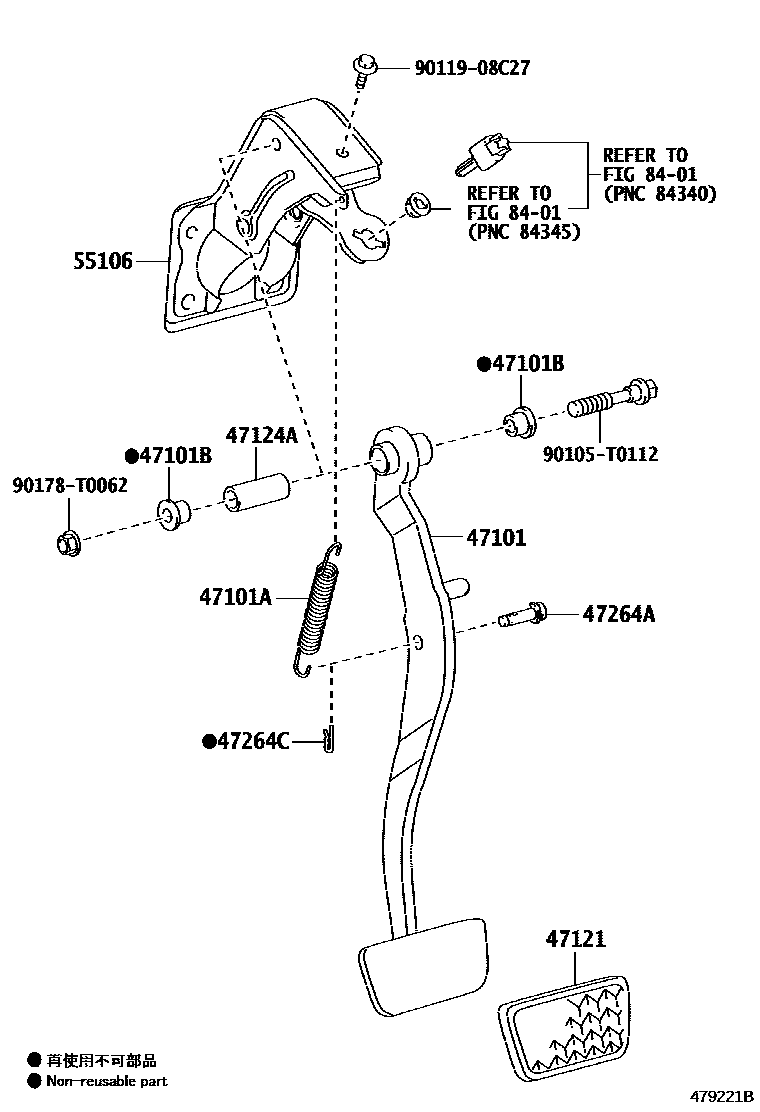

BRAKE PEDAL & BRACKET

0001 1W/O(VSC) 0007 1W(VSC)

47101PEDAL SUB-ASSY, BRAKE

main47101-0K010iKUN61..5F..IND201107-201210

main47101-0K020iGGN50,KUN51,60,TGN51,61..LHD..(SUVW,THSUV)..5F..(GCC,GEN,PHL)201107-201212

main47101-0K030iGGN50,KUN51,TGN51,61..SUVW..5F..(CO,LA)201110-201410

main47101-0K040iKUN51,6#,LAN50..RHD..5F..SA201108-201512

main47101-0K050iKUN51,LAN50,TGN51..LHD..(SASUV,SUVW)..5F..(GEN,SA)201108-201410

main47101-0K060iKUN51,61..RHD..(IDSUV,SUVW)..4FC..(GEN,IND);KUN50,60,TGN51,61..RHD..(4FC,5FC)..(GEN,IDN,MA,PKN,TH)201107-201609

main47101-0K070iGGN50,KUN51,60,TGN51,61..LHD..(SUVW,THSUV)..(4FC,5FC)..(EPT,GCC,GEN,KZS,PHL,VN)201107-201408

main47101-0K080iGGN50,KUN51,60,TGN51,61..LHD..IDSUV..(4FC,5FC)201107-201408

main47101-0K090iKUN51..DLX;GGN50,60..ANCOM;KUN51,TGN51,61..SUVW..(4FC,5FC)..(DCR,HTWC,HTWCF)..(CO,LA)201110-201410

main47101-0K100iKUN51..RHD..SASUV201204-201512

main47101-0K110iKUN51..LHD..SASUV..4FC;KUN51,TGN51..LHD..4FC..SA201204-201410

main47101-0K140iGGN50,KUN51,60,TGN51,61..LHD..(SUVW,THSUV)..5F..(GCC,GEN,KZS,PHL)201301-201408

main47101-0K210iKUN6#..5F..IND201210-201608

main47101-0K340iKUN60..LHD..5F;GGN50,KUN51,TGN51,61..LHD..IDSUV..5F201408-201611

main47101-0K350iTGN51..4FC..KZS201408-201703

main47101-0K360iKUN51,LAN50..LHD..5F..(GEN,SA)201410-201512

main47101-0K370iKUN51,TGN51..LHD..(SASUV,SUVW)..4FC..(GEN,SA)201410-201512

main47101-0K380iTGN51..5F..KZS201408-201703

main47101-0K390iGGN50,KUN51,TGN51,61..SUVW..5F..(CO,LA)201410-201510

main47101-0K400iKUN51..DLX;GGN50,60..ANCOM;KUN51,TGN51,61..SUVW..(4FC,5FC)..(DCR,HTWC,HTWCF)..(CO,LA)201410

main47101-0K410iGGN50,KUN51,60,TGN51,61..LHD..IDSUV..(4FC,5FC)201408-201510

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iKUN51,6#..(5F,5FC)..IND201107-201608

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iGGN50,TGN51..EPT201107-201612

47121PAD, BRAKE PEDAL

main31321-02010iGGN50,KUN51,TGN51,61..SUVW..5F..(CO,LA)201110-201510

main31321-52010iKUN51..IDSUV..5F..LA;KUN51,TGN61..5F..(GCC,GEN,SA,TH);GGN50,KUN6#,LAN50,TGN51..5F..(GCC,GEN,IDN,KZS,LA,PHL,SA,TH)201107-201703

main31321-52020iKUN51..5F..IND201509-201608

main47121-02010iKUN51..DLX;GGN50,60..ANCOM;KUN51,TGN51,61..SUVW..(4FC,5FC)..(DCR,HTWC,HTWCF)..(CO,LA)201110

main47121-52010iTGN51..PKN201107-201609

main47121-52020iKUN51..SR..IART;KUN51..RHD..SUVW..(4FC,5FC);GGN50,60,KUN6#..SUVW..(4FC,5FC)..(CO,LA,SA)201509-201608

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iKUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH201107

main90387-10121iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201608

47264APIN(FOR PUSH ROD)

main47148-35010iKUN60,TGN51,61..VN201107-201611

main90240-06025iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201608

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iKUN61..5F..IND201107-201210

main90468-16142iKUN61..5F..IND201210-201608

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0K011iTGN51..PKN201107-201609

main55106-0K030iKUN51..DLX;GGN50..ANCOM;GGN50..5F..CO;GGN60,KUN51,TGN51,61..SUVW..(DCR,HTWC,HTWCF)..(ANCOM,CO,LA)201110

main55106-71011iKUN51..5F..IND;KUN60..4FC..SA;KUN61..(4FC,5FC)..(SA,TH);KUN51..RHD..(4FC,5FC)..(IND,SA,TH);GGN50,60,KUN51..SUVW..5FC..SR..(HTWC,IART)..(CO,LA,SA)201107-201608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

12 parts on this diagram · 2 diagrams in section
