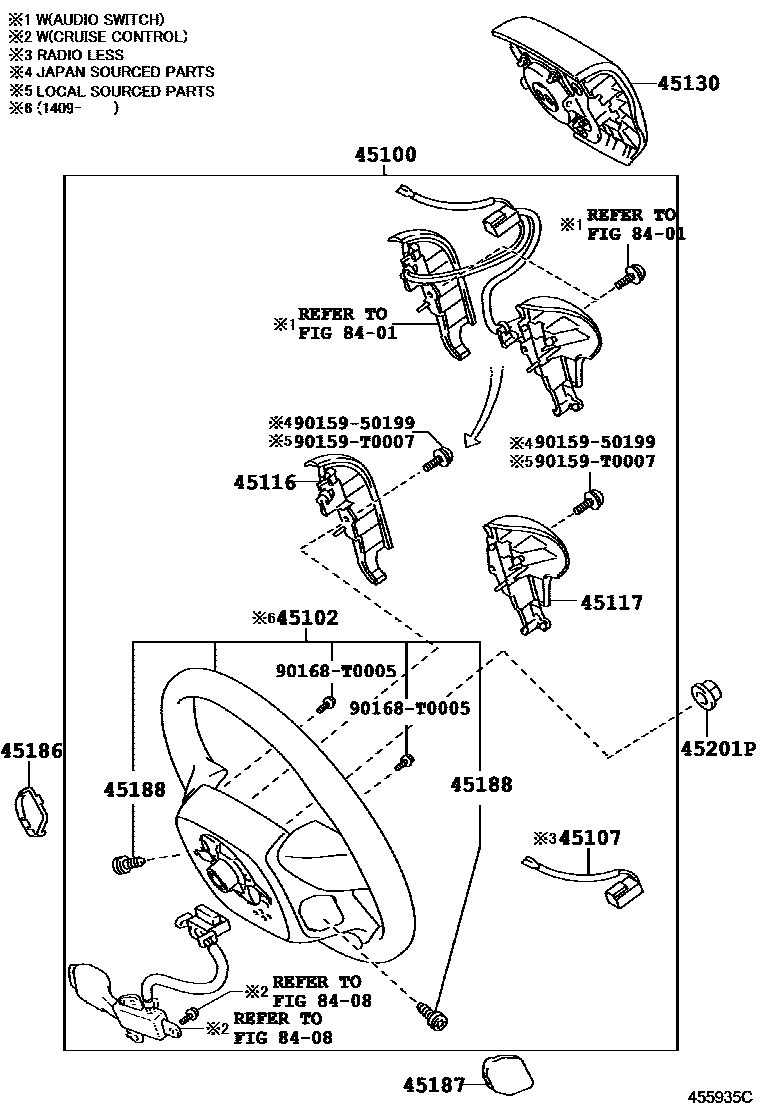

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0K430-E0i201107-201308

4-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-0K450-E0i201107-201308

4-SPOKE,URETHANE,ASH BROWN,TRIM4#; 4-SPOKE,URETHANE,AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#

main45100-0K620-E0i201107-201308

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-0K630-E0i201107-201308

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-0K670-E0supersedes 45100-0K800-E0i201108-201310

4-SPOKE,LEATHER,ASH BROWN,TRIM4#; 4-SPOKE,LEATHER,MULTI INFORMATION DISPLAY-CLOCK ONLY&AUDIO-*DA(EXTRA) & CD & 6SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,LEATHER,MULTI INFORMATION DISPLAY-CLOCK ONLY,ASH BROWN,TRIM4#

main45100-0K680-E0i201204-201308

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#

main45100-0K720-E0i201107-201308

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,AUDIO-WITHOUT(AUDIO) & 6SPEAKER,ASH BROWN,TRIM4#

main45100-0K760-E0i201107-201401

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#

main45100-0K770-B0i201208-201308

4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM1#

main45100-0K770-E0supersedes 45100-0K730-E0i201107-201401

4-SPOKE,WOOD&LEATHER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),ASH BROWN,TRIM4#

main45100-0K830-E0i201204-201310

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-0K840-E0i201204-201310

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-0K860-E0i201111-201310

4-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-0K870-E0i201110-201310

4-SPOKE,URETHANE,ASH BROWN,TRIM4#

main45100-0KA50-E0i201204-201310

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-0KA60-E0i201111-201310

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-0KA70-E0i201110-201310

4-SPOKE,LEATHER,ASH BROWN,TRIM4#

main45100-0KG10-C0i201308-201601

4-SPOKE,URETHANE,BLACK,TRIM2#

main45100-0KG20-C0supersedes 45100-0KG10-C0i201308-201503

4-SPOKE,URETHANE,BLACK,TRIM4#

main45100-0KG40-C0i201403-201703

4-SPOKE,URETHANE,BLACK,TRIM2#

main45100-0KJ00-C0i201308-201405

4-SPOKE,LEATHER,AIR CONDITIONER-AIR CONDITIONER DUAL&AUDIO-*DA(EXTRA) & CD & 6SPEAKER,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,AIR CONDITIONER-AIR CONDITIONER DUAL&AUDIO-*DA(EXTRA) & DVD & 6SPEAKER,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-0KJ01-C0i201406-201611

4-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-0KJ10-C0i201308-201405

4-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-0KJ11-C0i201406-201510

4-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-0KJ20-C0i201308-201405

4-SPOKE,WOOD&LEATHER,AUDIO-WITHOUT(AUDIO) & 6SPEAKER,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&AUDIO-WITHOUT(AUDIO) & 6SPEAKER,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-WITHOUT(AUDIO) & 6SPEAKER,BLACK,TRIM2#,4#

main45100-0KJ21-C0supersedes 45100-0KK71-C0i201406-201512

4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#

main45100-0KJ31-C0i201503-201612

4-SPOKE,WOOD&LEATHER,BLACK,TRIM4#

main45100-0KJ40-C0i201308-201405

4-SPOKE,WOOD&LEATHER,AUDIO-WITHOUT(AUDIO) & 6SPEAKER,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#; 4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,BLACK,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,4#

main45100-0KJ41-C0supersedes 45100-0KN90-C0i201406-201601

4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-0KJ60-C0i201403-201406

4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#

main45100-0KJ61-C0i201406-201501

4-SPOKE,WOOD&LEATHER,BLACK,TRIM4#

main45100-0KJ70-C0supersedes 45100-0KJ50-C0i201308-201405

4-SPOKE,WOOD&LEATHER,AUDIO-*DA(EXTRA) & DVD & 6SPEAKER,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,BLACK,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#,4#

main45100-0KJ71-C0supersedes 45100-0KJ51-C0i201406-201512

4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#,4#

main45100-0KJ81-C0i201501-201608

4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#

main45100-0KK71-C0i201501-201608

4-SPOKE,WOOD&LEATHER,BLACK,TRIM2#,4#

main45100-0KL30-C0i201310-201510

4-SPOKE,URETHANE,BLACK,TRIM2#,4#

main45100-0KL40-C0i201310-201510

4-SPOKE,URETHANE,BLACK,TRIM2#,4#

main45100-0KM20-C0i201310-201510

4-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-0KM30-C0i201310-201510

4-SPOKE,LEATHER,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,EXPORT FROM ARGENTINA,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,HIGH ALTITUDE COUNTRY SPEC,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,PERU SPEC,BLACK,TRIM2#,4#

main45100-0KM40-C0i201310-201510

4-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-0KN70-C0i201310-201512

4-SPOKE,LEATHER,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,MULTI INFORMATION DISPLAY-CLOCK ONLY,BLACK,TRIM2#,4#

main45100-0KP10-C0i201310-201512

4-SPOKE,LEATHER,AUDIO-*DA(EXTRA) & DVD & 6SPEAKER,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-0KP40-C0i201310-201512

4-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-0K370-E0supersedes 45100-0K510-E0i201108-201310

4-SPOKE,URETHANE,AUDIO-WITHOUT(AUDIO) & 4SPEAKER,ASH BROWN,TRIM4#

main45100-0K460-E0i201107-201308

4-SPOKE,URETHANE,MULTI INFORMATION DISPLAY-WITH&AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,URETHANE,MULTI INFORMATION DISPLAY-WITH,ASH BROWN,TRIM4#

main45100-0K480-E0i201208-201308

4-SPOKE,URETHANE,MULTI INFORMATION DISPLAY-WITH&AUDIO-*DA(EXTRA) & DVD & 6SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,URETHANE,MULTI INFORMATION DISPLAY-WITH&AUDIO-AVN(EXTRA) & DVD & 6SPEAKER& FOR ASIA,ASH BROWN,TRIM4#

main45100-0K550-E0i201107-201308

4-SPOKE,LEATHER,AUDIO-WITHOUT(AUDIO) & 6SPEAKER,ASH BROWN,TRIM4#

main45100-0K570-B0i201107-201308

4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

main45100-0K570-E0i201107-201308

4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#

main45100-0K580-B0i201107-201308

4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER&MULTI INFORMATION DISPLAY-WITH,DK.GRAY,TRIM1#

main45100-0K580-E0i201107-201308

4-SPOKE,LEATHER,AIR CONDITIONER-AIR CONDITIONER DUAL,ASH BROWN,TRIM4#; 4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER&MULTI INFORMATION DISPLAY-WITH,ASH BROWN,TRIM4#

main45100-0K680-B0supersedes 45100-0K760-B0i201208-201308

4-SPOKE,WOOD&LEATHER,AUDIO-WITHOUT(AUDIO) & 6SPEAKER,DK.GRAY,TRIM1#

main45100-0K700-B0i201208-201308

4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

main45100-0K700-E0supersedes 45100-0K800-E0i201108-201310

4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&MULTI INFORMATION DISPLAY-CLOCK ONLY&AUDIO-*DA(EXTRA) & CD & 6SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&MULTI INFORMATION DISPLAY-CLOCK ONLY,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#

main45100-0K730-E0i201108-201308

4-SPOKE,WOOD&LEATHER,AUDIO-AM/FM CD 4SPEAKER,ASH BROWN,TRIM4#; 4-SPOKE,WOOD&LEATHER,AUDIO-AM/FM CD RDS 4SPEAKER,ASH BROWN,TRIM4#

main45100-0K760-B0i201208-201308

4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM1#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&MULTI INFORMATION DISPLAY-WITH&AUDIO-*DA(EXTRA) & DVD & 6SPEAKER,DK.GRAY,TRIM1#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&MULTI INFORMATION DISPLAY-WITH&AUDIO-AVN(EXTRA) & DVD & 6SPEAKER & FOR ASIA,DK.GRAY,TRIM1#

main45100-0K780-E0i201107-201208

4-SPOKE,WOOD&LEATHER,AUDIO-AVN & DVD & *BT & 6SPEAKER,ASH BROWN,TRIM4#

main45100-0K800-E0i201210-201310

4-SPOKE,LEATHER,MULTI INFORMATION DISPLAY-WITH,ASH BROWN,TRIM4#

main45100-0KA30-E0i201110-201310

4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),ASH BROWN,TRIM4#

main45100-0KG30-C0supersedes 45100-0KG10-C0i201308-201510

4-SPOKE,URETHANE,MULTI INFORMATION DISPLAY-WITH&AUDIO-AM/FM(EXTRA) & CD & 6SPEAKER,BLACK,TRIM4#

main45100-0KG60-C0i201308-201405

4-SPOKE,LEATHER,AUDIO-WITHOUT(AUDIO) & 6SPEAKER,BLACK,TRIM2#,4#

main45100-0KG61-C0i201406-201510

4-SPOKE,LEATHER,AUDIO-WITHOUT(AUDIO) & 6SPEAKER,BLACK,TRIM2#,4#

main45100-0KG70-C0supersedes 45100-0KG20-C0i201308-201405

4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,4#

main45100-0KG71-C0supersedes 45100-0KG20-C0i201406-201504

4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,4#

main45100-0KG80-C0i201308-201405

4-SPOKE,LEATHER,AIR CONDITIONER-AIR CONDITIONER DUAL,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,AIR CONDITIONER-AIR CONDITIONER DUAL,BLACK,TRIM4#; 4-SPOKE,LEATHER,AUDIO-WITHOUT(AUDIO) & 6SPEAKER,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER&MULTI INFORMATION DISPLAY-WITH,BLACK,TRIM2#,4#

main45100-0KG81-C0i201406-201412

4-SPOKE,LEATHER,AIR CONDITIONER-AIR CONDITIONER DUAL,BLACK,TRIM4#

main45100-0KJ30-C0i201310-201405

4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&MULTI INFORMATION DISPLAY-CLOCK ONLY,BLACK,TRIM2#,4#

main45100-0KJ50-C0i201310-201405

4-SPOKE,WOOD&LEATHER,AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER & RDS,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER,BLACK,TRIM2#,4#

main45100-0KJ51-C0i201406-201512

4-SPOKE,WOOD&LEATHER,AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER & RDS,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER,BLACK,TRIM2#,4#

main45100-0KJ80-C0supersedes 45100-0KM80-C0i201310-201405

4-SPOKE,WOOD&LEATHER,AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL,BLACK,TRIM2#,4#

main45100-0KK30-C0supersedes 45100-0KG40-C0i201308-201504

4-SPOKE,URETHANE,AUDIO-AVN(EXTRA) & DVD & 6SPEAKER,BLACK,TRIM2#,4#

main45100-0KK70-C0i201310-201405

4-SPOKE,WOOD&LEATHER,EXPORT FROM ARGENTINA&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,HIGH ALTITUDE COUNTRY SPEC&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,PERU SPEC&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA,BLACK,TRIM2#,4#; 4-SPOKE,WOOD&LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA,BLACK,TRIM2#,4#

main45100-0KM00-C0i201310-201510

4-SPOKE,LEATHER,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),BLACK,TRIM2#,4#

main45100-0KM10-C0i201310-201510

4-SPOKE,LEATHER,AUDIO-AM/FM(EXTRA) & CD & 4SPEAKER,BLACK,TRIM2#,4#

main45100-0KM80-C0i201310-201410

4-SPOKE,LEATHER,AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&FOR BRAZIL,BLACK,TRIM2#,4#

main45100-0KN00-C0i201310-201510

4-SPOKE,LEATHER,AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,EXPORT FROM ARGENTINA&AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,HIGH ALTITUDE COUNTRY SPEC&AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,PERU SPEC&AUDIO-AVN(EXTRA)&DVD&DTV&6SPEAKER&ARGENTINA,BLACK,TRIM2#,4#

main45100-0KN10-C0supersedes 45100-0KN30-C0i201310-201512

4-SPOKE,URETHANE,AUDIO-WITHOUT(AUDIO) & 4SPEAKER,BLACK,TRIM2#,4#

45102WHEEL SUB-ASSY, STEERING

main45100-0KQ40-C0i201409-201611

BLACK,TRIM2#,4#,LEATHER

main45100-0KQ50-C0i201409

BLACK,TRIM4#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-02080i201111-201510

main45107-06040i201107-201601

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-0K020i201107-201308

AUDIO-WITHOUT(AUDIO) & 6SPEAKER; SEAT COVER MATERIAL-LEATHER&AUDIO-WITHOUT(AUDIO) & 6SPEAKER; SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)&AUDIO-WITHOUT(AUDIO) & 6SPEAKER

main45116-0K090i201308-201612

45117ORNAMENT, STEERING WHEEL, NO.2

main45117-0K020i201107-201310

main45117-0K040i201308-201601

45130BUTTON ASSY, HORN

main45130-0K110-B0i201107-201308

DK.GRAY,TRIM1#

main45130-0K110-E0i201107-201211

ASH BROWN,TRIM4#

main45130-0K111-C0i201308

BLACK,TRIM4#

main45130-0K130-E0i201108-201310

ASH BROWN,TRIM4#

main45130-0K131-C0i201310-201510

BLACK,TRIM2#,4#

main45130-0K140-E0i201110-201309

ASH BROWN,TRIM4#

main45130-0K141-C0i201410-201510

BLACK,TRIM4#

main45130-0K160-C0i201401-201501

BLACK,TRIM2#,40

main45130-0K160-E0i201211-201401

ASH BROWN,TRIM4#

main45130-0K111i201308-201310

SEAT COVER MATERIAL-LEATHER

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-06140-B0i201208-201311

DK.GRAY,TRIM1#

main45186-06140-C0i201308-201608

BLACK,TRIM2#,4#

main45186-06140-E0i201107-201308

ASH BROWN,TRIM4#

main45186-06150-B0i201402-201504

DK.GRAY,TRIM1#

main45186-06150-C0i201308-201601

BLACK,TRIM2#

main45186-06150-E0i201107-201601

ASH BROWN,TRIM4#

main45186-0K030-C0i201310-201512

BLACK,TRIM2#,4#

main45186-0K030-E0i201108-201310

ASH BROWN,TRIM4#

main45186-0K040-C0i201310-201512

BLACK,TRIM2#,4#

main45186-0K040-E0i201108-201310

ASH BROWN,TRIM4#

main45186-0K050-C0i201310-201510

BLACK,TRIM2#,4#; EXPORT FROM ARGENTINA,BLACK,TRIM2#,4#; HIGH ALTITUDE COUNTRY SPEC,BLACK,TRIM2#,4#; PERU SPEC,BLACK,TRIM2#,4#

main45186-0K050-E0i201110-201310

ASH BROWN,TRIM4#; EXPORT FROM ARGENTINA,ASH BROWN,TRIM4#; HIGH ALTITUDE COUNTRY SPEC,ASH BROWN,TRIM4#; PERU SPEC,ASH BROWN,TRIM4#

main45186-0K060-C0i201410-201510

BLACK,TRIM4#

main45186-0K060-E0i201110-201310

ASH BROWN,TRIM4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-06090-B0i201402-201504

DK.GRAY,TRIM1#

main45187-06090-C0i201308-201601

BLACK,TRIM2#

main45187-06090-E0i201201-201308

ASH BROWN,TRIM4#

main45187-0K020-C0i201310-201512

BLACK,TRIM2#,4#

main45187-0K020-E0i201108-201310

ASH BROWN,TRIM4#

main45187-0K030-C0i201310-201510

BLACK,TRIM2#,4#

main45187-0K030-E0i201110-201310

ASH BROWN,TRIM4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-0K010×2i201108-201512

L=18

main45188-60010×4i201308-201401

L=18; L=18,AUDIO-*DA(EXTRA) & CD & 6SPEAKER; L=18,AUDIO-*DA(EXTRA) & DVD & 6SPEAKER; L=18,AUDIO-AVN(EXTRA) & DVD & 6SPEAKER; L=18,AUDIO-WITHOUT(AUDIO) & 6SPEAKER; L=18,EXPORT FROM ARGENTINA&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN); L=18,HIGH ALTITUDE COUNTRY SPEC&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN); L=18,PERU SPEC&SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN); L=18,SEAT COVER MATERIAL-LEATHER; L=18,SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

45201PNUT, STEERING WHEEL SET

main90179-12071i201201-201608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

90159T0007

main90159-T0007

90168T0005

main90168-T0005

15 parts on this diagram · 1 diagram in section
