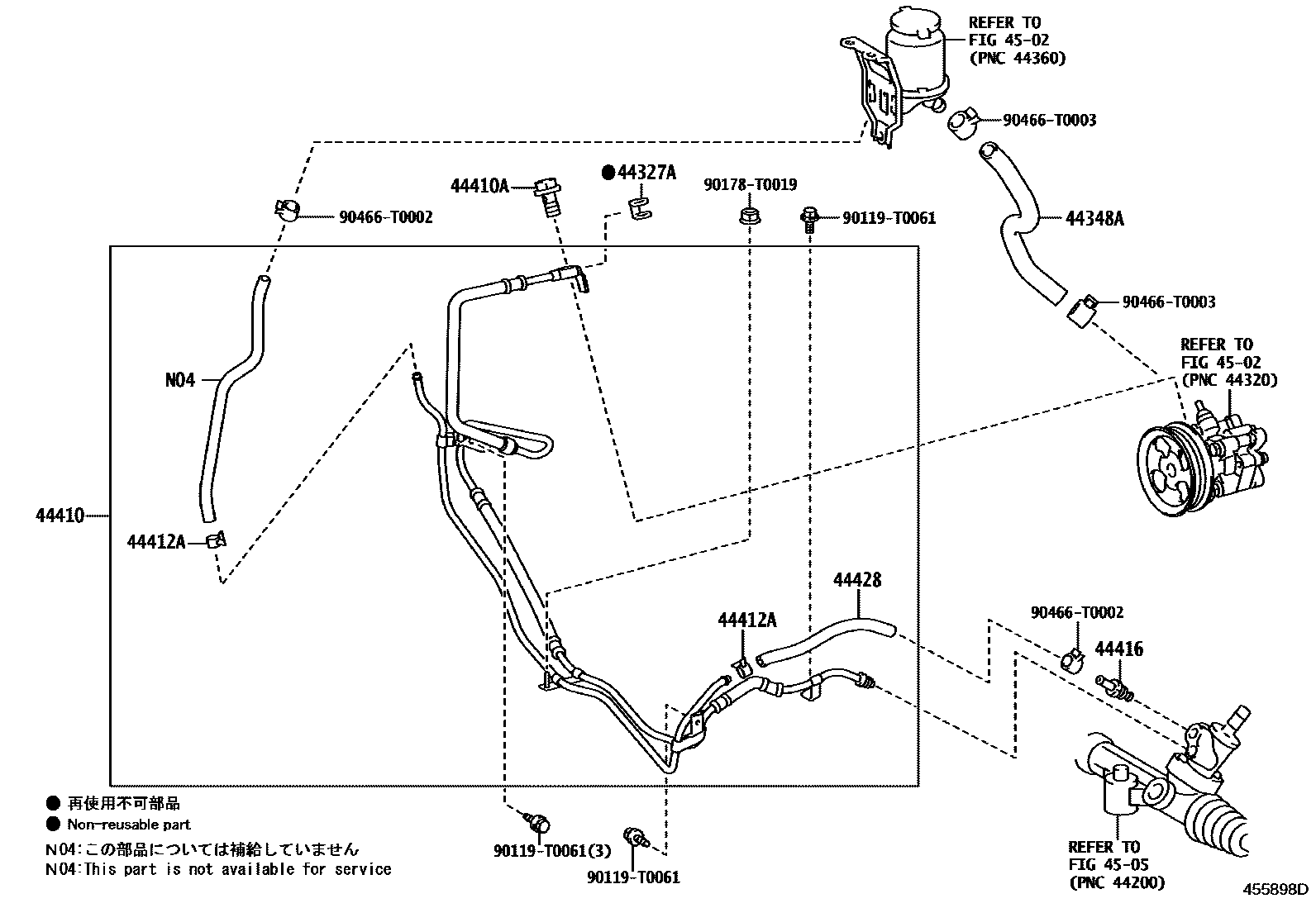

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iTGN51..PKN201107-201609

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K010iKUN51,6#..(5F,5FC)..IND201107-201608

main44348-0K030iLAN50201108-201512

main44348-0K040iGGN50..EPT201107-201612

44410TUBE ASSY, PRESSURE FEED

main44410-0K090iTGN51,61..RHD201107-201609

main44410-0K120iKUN5#,6#..RHD201107-201608

main44410-0K140iLAN50..RHD201108-201310

main44410-0K150iGGN50..IDSUV..GCC;GGN50..SUVW..(CO,EPT,GCC,LA)201107-201612

main44410-0K160iGGN50..IDSUV..LA;GGN50,60..ANCOM,GEN201107

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iTGN51,61..VN201107-201611

44412ACLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)

main90466-T0002×2iTGN51,61..RHD;GGN50..IDSUV..GCC;GGN50..SUVW..(CO,EPT,GCC,LA,SA);GGN60,KUN5#,6#,LAN50..CO,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN201107-201612

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K010iKUN60,TGN51,61..VN201107-201611

44428HOSE, RETURN, NO.2

main44428-0K050iGGN50,60..SA201108-201512

main44428-0K100iTGN51,61..RHD201107-201609

main44428-0K110iKUN5#,6#..RHD201107-201608

main44428-0K120iLAN50..RHD201108-201310

main44428-0K130iGGN50..IDSUV..GCC;GGN50..SUVW..(CO,EPT,GCC,LA)201107-201612

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

90119T0061

main90119-T0061

90178T0019

main90178-T0019

90466T0002

main90466-T0002

90466T0003

main90466-T0003

13 parts on this diagram · 8 diagrams in section
