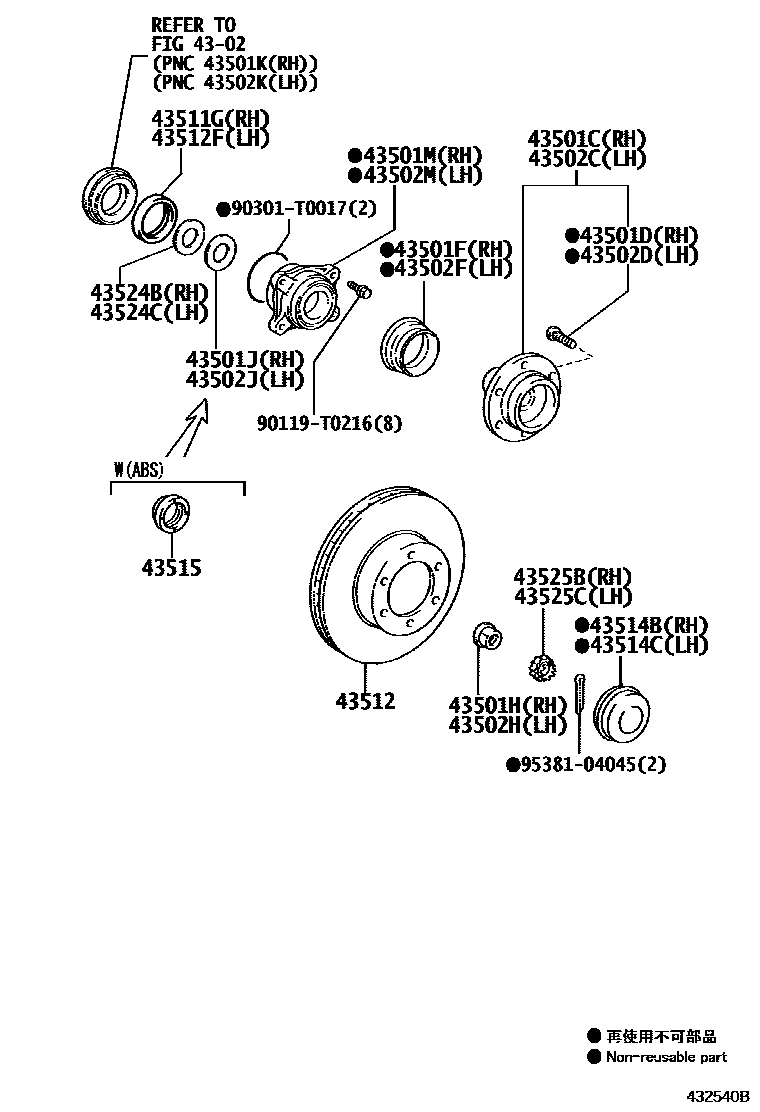

FRONT AXLE HUB

0001 1 0002 1

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-0K030iGGN50,KUN5#,LAN50,TGN51201107

main43502-0K050iGGN60,KUN6#,TGN61201107

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51,61..SUVW..(ANCOM,CO,LA,SA)201108

main90942-02081iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201703

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-T0001iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-28002iGGN50,KUN5#,LAN50,TGN51201107-201405

main90178-28002iGGN50,KUN5#,LAN50,TGN51201405

(J)

main90178-T0113iGGN50,KUN5#,LAN50,TGN51201405

(L)

43501JSPACER (FOR FRONT AXLE HUB RH)

main90560-52001iTGN61..GCC;TGN51..4FC..GCC;TGN51..SUVW..5F..GCC201112-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT,(J)

main90560-52001iTGN51..IDSUV..5F201112-201510

(J)

main90560-T0013iGGN50..GCC201107-201112

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main90560-T0013iTGN61..5F..HTWC..LA201112-201510

(L)

main90560-T0013iTGN61..GCC;TGN51..4FC..GCC;TGN51..SUVW..5F..GCC201112-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT,(L)

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90080-37030iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main90369-T0003iGGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN)201107

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-0K030iGGN50,KUN5#,LAN50,TGN51201107

main43502-0K050iGGN60,KUN6#,TGN61201107

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51,61..SUVW..(ANCOM,CO,LA,SA)201108

main90942-02081iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201703

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-T0001iGGN50,60,KUN5#,6#,LAN50,TGN51,61201107

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-28002iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN201405

(J)

main90178-28002iGGN50,KUN5#,LAN50,TGN51201107-201405

main90178-T0113iGGN50,TGN51..EPT201405-201612

main90178-T0113iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN201405

(L)

43502JSPACER (FOR FRONT AXLE HUB LH)

main90560-52001iTGN61..GCC;TGN51..4FC..GCC;TGN51..SUVW..5F..GCC201112-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT,(J)

main90560-52001iTGN51..IDSUV..5F201112-201510

(J)

main90560-T0013iTGN51,61..HTWC..(GCC,LA)201107-201112

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT

main90560-T0013iTGN61..GCC;TGN51..4FC..GCC;TGN51..SUVW..5F..GCC201112-201510

ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT,(L)

main90560-T0013iGGN50..GCC201112-201510

(L)

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90080-37030iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main90369-T0003iGGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN)201107

43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)

main90316-T0002iGGN50,KUN5#,LAN50,TGN51201107

43512DISC, FRONT

main43512-0K060iKUN60,TGN61..GEN,IDN,PHL,TH201107-201510

main43512-0K090iKUN51,61..TH201107-201703

main43512-0K100iKUN51..SASUV;GGN50,60,KUN51,6#,LAN50,TGN51..SA201108-201512

main43512-0K110iGGN50,KUN51,TGN51,61..CO201110-201208

main43512-0K140iKUN51..5FC..CO;TGN61..SUVW..GCC;KUN51..IDSUV..5FC;KUN61..4FC..(IND,TH);GGN50,TGN51..(SUVW,THSUV)..(GCC,GEN,IDN);KUN51..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)201205-201510

43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)

main90316-T0002iGGN50,KUN5#,LAN50,TGN51201107

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-0K010iGGN50,KUN5#,LAN50,TGN51201107

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-0K010iGGN50,KUN5#,LAN50,TGN51201107

43515ROTOR, SKID CONTROL, FRONT

main43515-0K020iKUN60,TGN51,61..VN201107-201703

43524BSPACER, FRONT WHEEL INNER BEARING, RH

main43524-0K020iGGN50,KUN5#,LAN50,TGN51201107

43524CSPACER, FRONT WHEEL INNER BEARING, LH

main43524-0K020iGGN50,KUN5#,LAN50,TGN51201107

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-71010iGGN50,KUN5#,LAN50,TGN51201107

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-71010iGGN50,KUN5#,LAN50,TGN51201107

90119T0216

main90119-T0216

90301T0017

main90301-T0017

9538104045

main95381-04045

26 parts on this diagram · 2 diagrams in section
