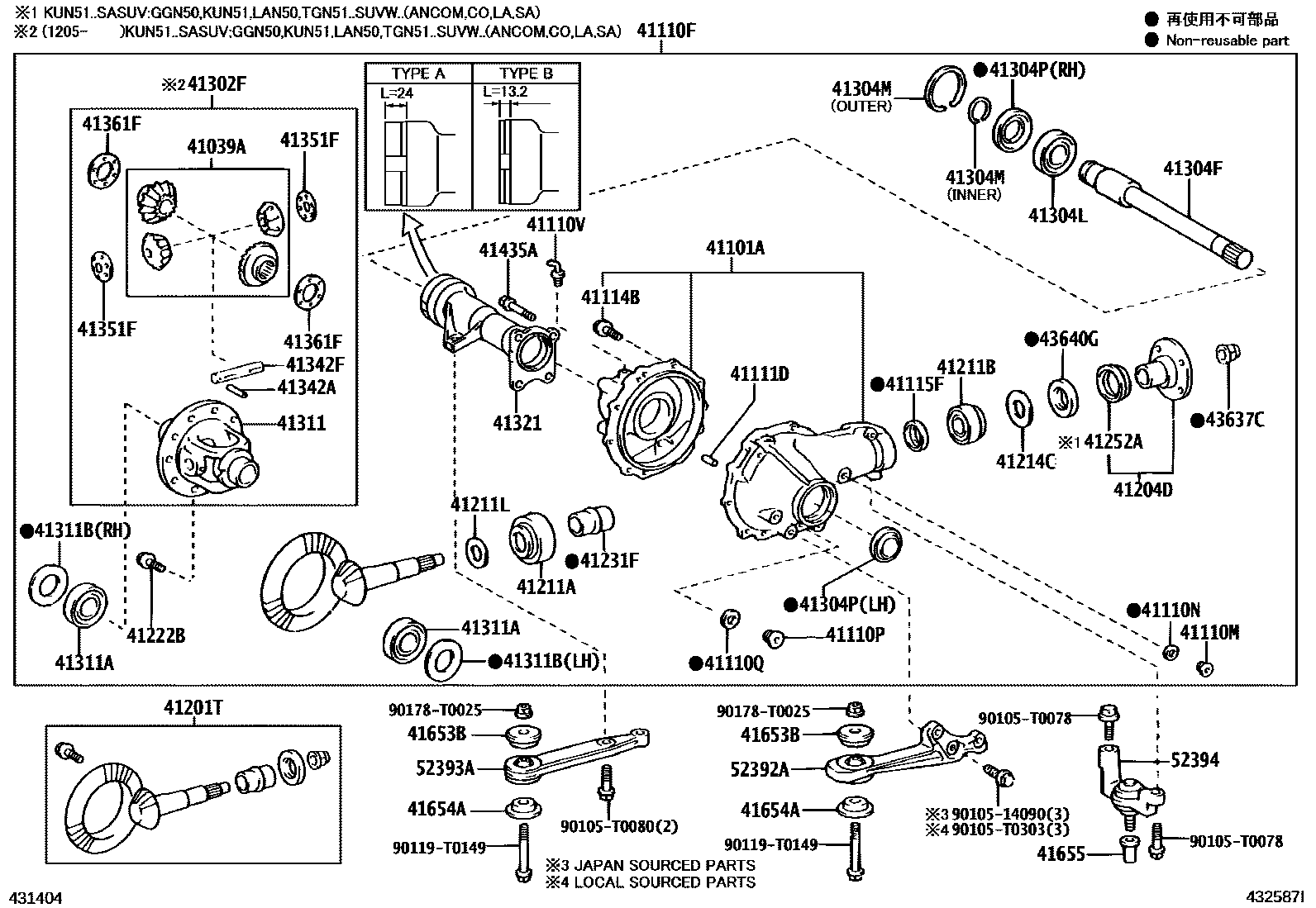

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
main41039-71020iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201406
PNC 41321=TYPE A
PNC 41321=TYPE B
main41039-71080iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201406-201407
PNC 41321=TYPE B
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
main41101-0K030iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201406
PNC 41321=TYPE A
main41101-0K031iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201406
PNC 41321=TYPE B
TYPE A:REFER 43-02
main41101-71020iKUN51..SASUV;KUN51..(5F,5FC)..CO;KUN51..SUVW..(LA,SA);GGN50,LAN50,TGN51..SUVW..(ANCOM,CO,LA,SA)201205
TYPE B:REFER 43-02
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
main41110-0K241iGGN50..EPT,GCC,GEN;GGN50,KUN51..IDSUV..(5F,5FC)..LA;KUN51..(IDSUV,SUVW,THSUV)..5F..(GEN,IND,TH)201107-201406
*FGR=43:12=3.583,PNC 41321=TYPE A
main41110-0K242iGGN50..IDSUV..LA;KUN51..IDSUV..5F..LA;GGN50,KUN51..(IDSUV,SUVW)..(5F,5FC)..(EPT,GCC,GEN,IND)201406-201411
*FGR=43:12=3.583,PNC 41321=TYPE B
main41110-0K243iGGN50..EPT,GCC;GGN50..IDSUV..LA;KUN51..IDSUV..5F..LA;KUN51..RHD..5F..(GEN,IND)201411-201504
*FGR=43:12=3.583
main41110-0K244iGGN50..EPT,GCC;GGN50..IDSUV..LA;KUN51..IDSUV..5F..LA;KUN51..RHD..5F..(GEN,IND)201504
*FGR=43:12=3.583
main41110-0K251iKUN51..IDSUV..4FC..LA;KUN5#..(IDSUV,SUVW,THSUV)..(4FC,5FC)..(GEN,MA,PHL,TH)201107-201406
*FGR=43:11=3.909,PNC 41321=TYPE A
main41110-0K252iKUN51..IDSUV..(4FC,5FC)..LA;KUN5#..(IDSUV,SUVW)..(4FC,5FC)..(GEN,IDN,MA,PHL,TH)201406-201411
*FGR=43:11=3.909,PNC 41321=TYPE B
main41110-0K253iKUN51..IDSUV..(4FC,5FC)..LA;KUN5#..(IDSUV,SUVW)..(4FC,5FC)..(GEN,IDN,IND,MA,PHL,TH)201411-201504
*FGR=43:11=3.909
main41110-0K254iKUN51..IDSUV..(4FC,5FC)..LA;KUN5#..(IDSUV,SUVW)..(4FC,5FC)..(GEN,IDN,IND,MA,PHL)201504-201608
*FGR=43:11=3.909
*FGR=41:10=4.100,PNC 41321=TYPE A
*FGR=41:10=4.100,PNC 41321=TYPE B
*FGR=41:10=4.100
*FGR=41:10=4.100
*FGR=41:9=4.555,COLOMBIA SPEC,PNC 41321=TYPE A; *FGR=41:9=4.555,ECUADOR SPEC,PNC 41321=TYPE A; *FGR=41:9=4.555,PNC 41321=TYPE A
*FGR=41:9=4.555,COLOMBIA SPEC,PNC 41321=TYPE B; *FGR=41:9=4.555,ECUADOR SPEC,PNC 41321=TYPE B; *FGR=41:9=4.555,PNC 41321=TYPE B
*FGR=41:9=4.555; *FGR=41:9=4.555,COLOMBIA SPEC; *FGR=41:9=4.555,ECUADOR SPEC
*FGR=41:9=4.555
*FGR=43:12=3.583,TYPE A:REFER 43-02
*FGR=43:11=3.909,TYPE A:REFER 43-02
*FGR=43:10=4.100,TYPE A:REFER 43-02
*FGR=41:9=4.555,TYPE A:REFER 43-02
main41110-71390iKUN51..SASUV..5F;KUN51..SUVW..5F..(CO,LA,SA);GGN50..SUVW..(ANCOM,CO,LA,SA)201205-201410
*FGR=43:12=3.583,TYPE B:REFER 43-02
*FGR=43:12=3.583
*FGR=43:12=3.583
*FGR=43:11=3.909,TYPE B:REFER 43-02
*FGR=43:11=3.909
*FGR=43:11=3.909
*FGR=43:10=4.100,TYPE B:REFER 43-02
*FGR=41:9=4.555,TYPE B:REFER 43-02
*FGR=41:9=4.555
*FGR=41:9=4.555
41110MPLUG, FRONT DIFFERENTIAL FILLER
(J)
main90341-T0002iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201510
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
main90341-T0003iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)201107-201703
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
41110VUNION (FOR FRONT DIFFERENTIAL)
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
(L)
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
main41201-79095iKUN51..SASUV..5F;KUN51..SUVW..5F..(CO,LA,SA);GGN50..SUVW..(ANCOM,CO,LA,SA)201107-201410
*FGR=43:12=3.583
main41201-79135iKUN51..4FC..CO;KUN51..IDSUV..(4FC,5FC)..LA;KUN5#..(IDSUV,SUVW,THSUV)..(4FC,5FC)..(GEN,IDN,MA,PHL,TH)201108-201411
*FGR=43:11=3.909
*FGR=41:9=4.556
*FGR=41:10=4.100
main41201-79465iKUN51..IDSUV..(4FC,5FC)..LA;KUN5#..(IDSUV,SUVW)..(4FC,5FC)..(GEN,IDN,MA,PHL,TH)201411-201608
*FGR=43:11=3.909
*FGR=41:10=4.100
*FGR=41:9=4.555
*FGR=43:12=3.583
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
main41204-0K030iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201411
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70,OD=47
OD=47,T=1.73,OD=47
OD=47,T=1.76,OD=47
OD=47,T=1.79,OD=47
OD=47,T=1.82,OD=47
OD=47,T=1.85,OD=47
OD=47,T=1.88,OD=47
OD=47,T=1.91,OD=47
OD=47,T=1.94,OD=47
OD=47,T=1.97,OD=47
OD=47,T=2.00,OD=47
OD=47,T=2.03,OD=47
OD=47,T=2.06,OD=47
OD=47,T=2.09,OD=47
OD=47,T=2.12,OD=47
OD=47,T=2.15,OD=47
OD=47,T=2.18,OD=47
OD=47,T=2.21,OD=47
OD=47,T=2.24,MARK 01,OD=47
OD=47,T=2.27,MARK 02,OD=47
OD=47,T=2.30,MARK 03,OD=47
OD=47,T=2.33,MARK 04,OD=47
OD=52,T=1.70,OD=52
OD=52,T=1.73,OD=52
OD=52,T=1.76,OD=52
OD=52,T=1.79
OD=52,T=1.82
OD=52,T=1.85,OD=52
OD=52,T=1.88
main90564-35116iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)201107
OD=52,T=1.91,OD=52
OD=52,T=1.94,OD=52
OD=52,T=1.97,OD=52
main90564-35119iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)201107
OD=52,T=2.00,OD=52
OD=52,T=2.03,OD=52
OD=52,T=2.06,OD=52
OD=52,T=2.09
OD=52,T=2.12,OD=52
OD=52,T=2.15,OD=52
OD=52,T=2.18,OD=52
main90564-35127iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)201107
OD=52,T=2.21,OD=52
main90564-35128iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)201107
OD=52,T=2.24,OD=52
OD=52,T=2.27,OD=52
main90564-35130iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)201107
OD=52,T=2.30,OD=52
OD=52,T=2.33,OD=52
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
main90105-T0310×10iGGN50,KUN51..IDSUV..(GCC,LA);KUN5#,TGN51..(IDSUV,SUVW)..(GCC,GEN,IDN,KZS,MA,PHL,TH)201407-201703
(L)
(J)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41302FCASE SUB-ASSY, FRONT DIFFERENTIAL
main41301-71060iKUN51..SASUV..4FC;LAN50,TGN51..CO,SA;KUN51..SUVW..(4FC,5FC)..(CO,LA,SA)201205-201506
TYPE B:REFER 43-02
TYPE B:REFER 43-02
main41301-71070iKUN51..SASUV..5F;KUN51..SUVW..5F..(CO,LA,SA);GGN50..SUVW..(ANCOM,CO,LA,SA)201205-201506
TYPE B:REFER 43-02
TYPE B:REFER 43-02
TYPE B:REFER 43-02
TYPE B:REFER 43-02
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
INNER
OUTER
INNER
OUTER
41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)
LH,TYPE A:REFER43-02
RH,TYPE A:REFER43-02
LH,TYPE B:REFER43-02
RH,TYPE B:REFER43-02
LH,TYPE B:REFER43-02
RH,TYPE B:REFER43-02
LH
LH,TYPE B:REFER43-02
RH,TYPE B:REFER43-02
RH
main90311-T0035iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201406
RH,PNC 41321=TYPE A
main90311-T0037iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201406
LH,PNC 41321=TYPE A
main90311-T0062iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201406-201505
LH,PNC 41321=TYPE B
main90311-T0063iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201406-201505
RH,PNC 41321=TYPE B
main90311-T0083iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,VN)201505-201703
LH
main90311-T0084iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,VN)201505-201703
RH
41311CASE, FRONT DIFFERENTIAL
main41311-0K050iGGN50..IDSUV..LA;GGN50..EPT,GCC,GEN;KUN51..IDSUV..5F..LA;KUN51..(IDSUV,SUVW,THSUV)..5F..(GEN,TH)201107-201612
main41311-71020iKUN51..SASUV..4FC;LAN50,TGN51..CO,SA;KUN51..SUVW..(4FC,5FC)..(CO,LA,SA)201108-201512
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=1.60,LH
T=1.66,LH
T=1.72,LH
T=1.78,LH
T=1.84,LH
T=1.90,LH
T=1.96,LH
T=2.02,LH
T=2.08,LH
T=2.14,LH
T=1.60,RH
T=1.66,RH
T=1.72,RH
T=1.78,RH
T=1.84,RH
T=1.90,RH
T=1.96,RH
T=2.02,RH
T=2.08,RH
T=2.14,RH
T=1.58,LH
T=1.62,LH
T=1.64,LH
T=1.68,LH
T=1.70,LH
T=1.74,LH
T=1.76,LH
T=1.80,LH
T=1.82,LH
T=1.86,LH
T=1.88,LH
T=1.92,LH
T=1.94,LH
T=1.98,LH
T=2.00,LH
T=2.04,LH
T=2.06,LH
T=2.10,LH
T=2.12,LH
T=2.16,LH
T=1.58,RH
T=1.62,RH
T=1.64,RH
T=1.68,RH
T=1.70,RH
T=1.74,RH
T=1.76,RH
T=1.80,RH
T=1.82,RH
T=1.86,RH
T=1.88,RH
T=1.92,RH
T=1.94,RH
T=1.98,RH
T=2.00,RH
T=2.04,RH
T=2.06,RH
T=2.10,RH
T=2.12,RH
T=2.16,RH
T=1.44,RH
T=1.46,RH
T=1.48,RH
T=1.50,RH
T=1.52,RH
T=1.54,RH
T=1.56,RH
T=2.18,LH
T=2.20,LH
T=2.22,LH
T=2.24,LH
T=2.26,LH
T=2.28,LH
T=2.30,LH
41321TUBE, DIFFERENTIAL EXTENSION FLANGE
main41321-0K010iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201406
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER 43-02
TYPE B:REFER 43-02
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-0K010iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201504
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
(L)
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.55
T=1.60
main41361-0K040×2iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)201107-201703
T=1.65
T=1.70
T=1.75
main41361-0K070×2iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)201107-201703
T=1.80
T=1.85
T=1.90
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
*12-1.25PX24-16.5,(J)
*12-1.25PX24-16.5,(L)
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1
43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
main90311-T0013iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201107-201411
main90311-T0064iGGN50,KUN51..IDSUV..LA;GGN50,KUN5#,TGN51..(IDSUV,SUVW)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)201411-201703
52392ASUPPORT, FRONT DIFFERENTIAL, NO.1
52393ASUPPORT, FRONT DIFFERENTIAL, NO.2
52394SUPPORT, FRONT DIFFERENTIAL, NO.3
9010514090
main90105-14090
90105T0078
main90105-T0078
90105T0080
main90105-T0080
90105T0303
main90105-T0303
90119T0149
main90119-T0149
90178T0025
main90178-T0025
48 parts on this diagram · 2 diagrams in section
