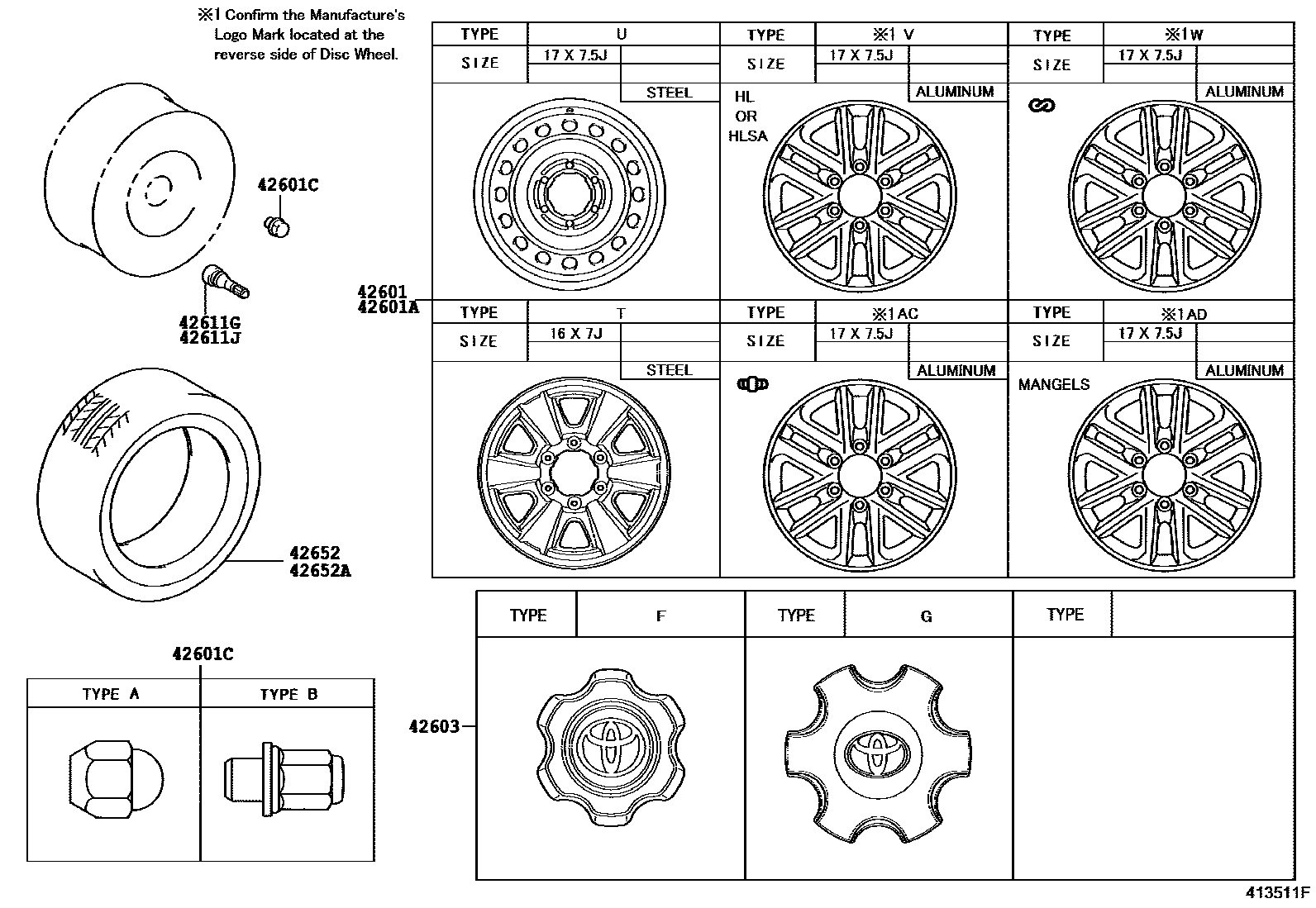

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE V:REFER ILLUST.
17X7.5J, #,TYPE V:REFER ILLUST.
main42611-0KE50×4iTGN61..5F..CO;TGN61..4FC..HTWC..(CO,LA);KUN51..SUVW..5FC..DCR..LA;KUN51,TGN51..SUVW..(4FC,5F)..(CO,LA)201308-201512
17X7.5J, #,TYPE V:REFER ILLUST.
17X7.5J, #,T/P AD:REFER ILLUST.
17X7.5J, #,T/P AD:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
main42611-0KF61×4iTGN51..IDSUV..(GCC,GEN);GGN50,KUN5#,60,TGN61..IDSUV..(GCC,GEN,IDN,LA)201301-201510
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,T/P AC:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE V:REFER ILLUST.
main42611-0KN11×4iGGN50,KUN50,60..GCC,GEN,IDN;KUN51,TGN61..IDSUV..4FC..(GEN,IDN); TGN51..IDN;KUN51,60,TGN61..PHL201408-201510
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE W:REFER ILLUST.; 17X7.5J, #,TYPE W:REFER ILLUST.
main42611-0KN21×4iGGN50,KUN50,60..GCC,GEN,IDN;KUN51,TGN61..IDSUV..4FC..(GEN,IDN); TGN51..IDN;KUN51,60,TGN61..PHL201408-201510
17X7.5J, #,T/P AC:REFER ILLUST.; 17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,T/P AC:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE V:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,T/P AD:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7.5J, #,TYPE W:REFER ILLUST.
main42611-0KE31iTGN61..SUVW..(GCC,IDN,PHL);KUN60,TGN51..SUVW..(GCC,GEN,IDN,PHL);GGN50,KUN51..LHD..SUVW..(GCC,GEN,PHL)201301-201503
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
main42611-0KE40iTGN61..SUVW..(GCC,IDN,PHL);KUN60,TGN51..SUVW..(GCC,GEN,IDN,PHL);GGN50,KUN51..LHD..SUVW..(GCC,GEN,PHL)201107-201212
17X7.5J, #,TYPE V:REFER ILLUST.
17X7.5J, #,TYPE V:REFER ILLUST.
17X7.5J, #,TYPE V:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
main42611-0KF61iKUN51..LHD..IDSUV..GEN;TGN51..IDSUV..(GCC,GEN);TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,60..IDSUV..(GCC,GEN,IDN)201301-201510
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE U:REFER ILLUST.
17X7.5J, #,TYPE U:REFER ILLUST.
main42611-0KF72iKUN51..5FC..CO;KUN51..IDSUV..4FC..LA;KUN51..LHD..SASUV..4FC;KUN51,TGN61..RHD..(IDSUV,SASUV)..GEN;GGN50,KUN51..LHD..(IDSUV,SASUV)..(5F,5FC)..(GEN,LA)201301
17X7.5J, #,TYPE U:REFER ILLUST.
main42611-0KG30iKUN51..LHD..IDSUV..GEN;TGN51..IDSUV..(GCC,GEN);TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,60..IDSUV..(GCC,GEN,IDN)201301-201510
17X7.5J, #,T/P AC:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE V:REFER ILLUST.
main42611-0KN11iTGN51..IDN;KUN51,60,TGN61..PHL; TGN61..IDN;KUN51..LHD..IDSUV..GEN;GGN50,KUN50,60..GCC,GEN,IDN201408-201510
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE W:REFER ILLUST.; 17X7.5J, #,TYPE W:REFER ILLUST.
main42611-0KN21iTGN51..IDN;KUN51,60,TGN61..PHL; TGN61..IDN;KUN51..LHD..IDSUV..GEN;GGN50,KUN50,60..GCC,GEN,IDN201408-201510
17X7.5J, #,T/P AC:REFER ILLUST.; 17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,T/P AC:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TYPE W:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE V:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01109×24supersedes 90942-01082iTGN61..SR;TGN61..4FC..LA;GGN50,60,KUN5#,6#,TGN51..(IDSUV,SUVW)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN)201503
(J),TYPE B:REF ILL.
main90942-T1005×24iTGN61..SR;TGN61..4FC..LA;GGN50,60,KUN5#,6#,TGN51..(IDSUV,SUVW)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN)201503
(L),TYPE B:REF ILL.
42603ORNAMENT SUB-ASSY, WHEEL HUB
main4260B-0K080×4supersedes 42603-0K050iKUN60,TGN61..TH;KUN51,61..5FC..TH;TGN51..IDSUV..IDN;KUN51,60,TGN61..IDSUV..PHL201107-201408
*ALU,TYPE G:REFER ILLUST.
*ALU,TYPE G:REFER ILLUST.
*ALU,TYPE G:REFER ILLUST.
main4260B-0K240×4iGGN50,KUN50,60..GCC,GEN,IDN;KUN51,TGN61..IDSUV..4FC..(GEN,IDN); KUN61,TGN51..IDN,TH;KUN60,TGN61..IND,PHL,TH;KUN51..(4FC,5FC)..(IND,PHL,TH)201408
*ALU,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE G:REFER ILLUST.; *ALU,TYPE G:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE G:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM,TYPE G:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90080-94031iKUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH);GGN50,KUN60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)201107-201703
42652TIRE
265/65R17
42652ATIRE (FOR SPARE)
265/65R17
8 parts on this diagram · 3 diagrams in section
