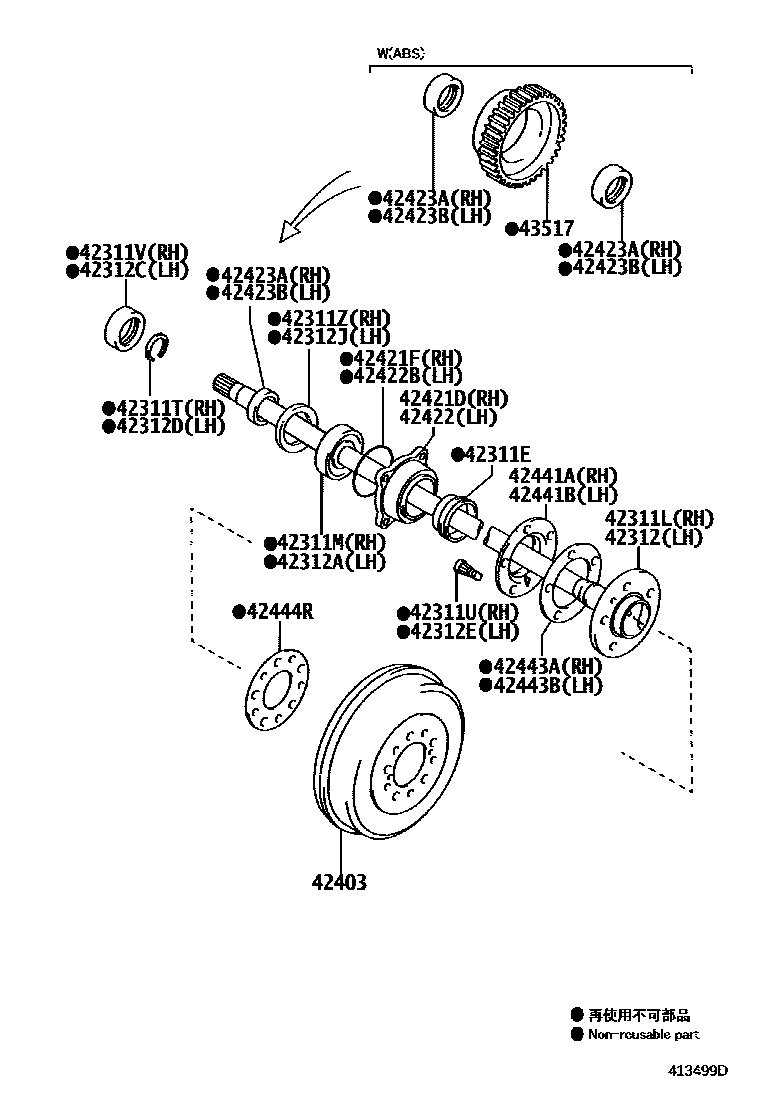

REAR AXLE SHAFT & HUB
42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)
42311LSHAFT, REAR AXLE, RH
ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT; DIFFERENTIAL LOCK-WITHOUT&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
42311MBEARING(FOR REAR AXLE SHAFT RH)
42311TRING, SNAP(FOR REAR AXLE SHAFT RH)
42311UBOLT, HUB(FOR REAR AXLE RH)
42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)
42311ZWASHER(FOR REAR AXLE SHAFT RH)
42312SHAFT, REAR AXLE, LH
ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT; DIFFERENTIAL LOCK-WITHOUT&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT
42312ABEARING(FOR REAR AXLE SHAFT LH)
42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)
42312DRING, SNAP(FOR REAR AXLE SHAFT LH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42312JWASHER(FOR REAR AXLE SHAFT LH)
42403DRUM SUB-ASSY, REAR BRAKE
42421DCASE, REAR AXLE BEARING, RH
42421FRING, O (FOR REAR AXLE BEARING CASE RH)
42422CASE, REAR AXLE BEARING, LH
42422BRING, O (FOR REAR AXLE BEARING CASE LH)
42423ARETAINER, REAR AXLE BEARING, INNER RH
main42423-71010×2iKUN51..SASUV;TGN61..5F..CO;TGN61..5F..HTWCF;TGN61..4FC..(CO,LA);GGN50,60,KUN51,6#,LAN50,TGN51..SUVW..(ANCOM,CO,LA,SA)201108
42423BRETAINER, REAR AXLE BEARING, INNER LH
main42423-71010×2iKUN51..SASUV;TGN61..5F..CO;TGN61..5F..HTWCF;TGN61..4FC..(CO,LA);GGN50,60,KUN51,6#,LAN50,TGN51..SUVW..(ANCOM,CO,LA,SA)201108
42441ADEFLECTOR, BRAKE DRUM OIL RH
42441BDEFLECTOR, BRAKE DRUM OIL LH
42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH
42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH
42444RGASKET, BRAKE DRUM (FOR REAR AXLE)
43517ROTOR, SKID CONTROL, REAR
26 parts on this diagram · 1 diagram in section
