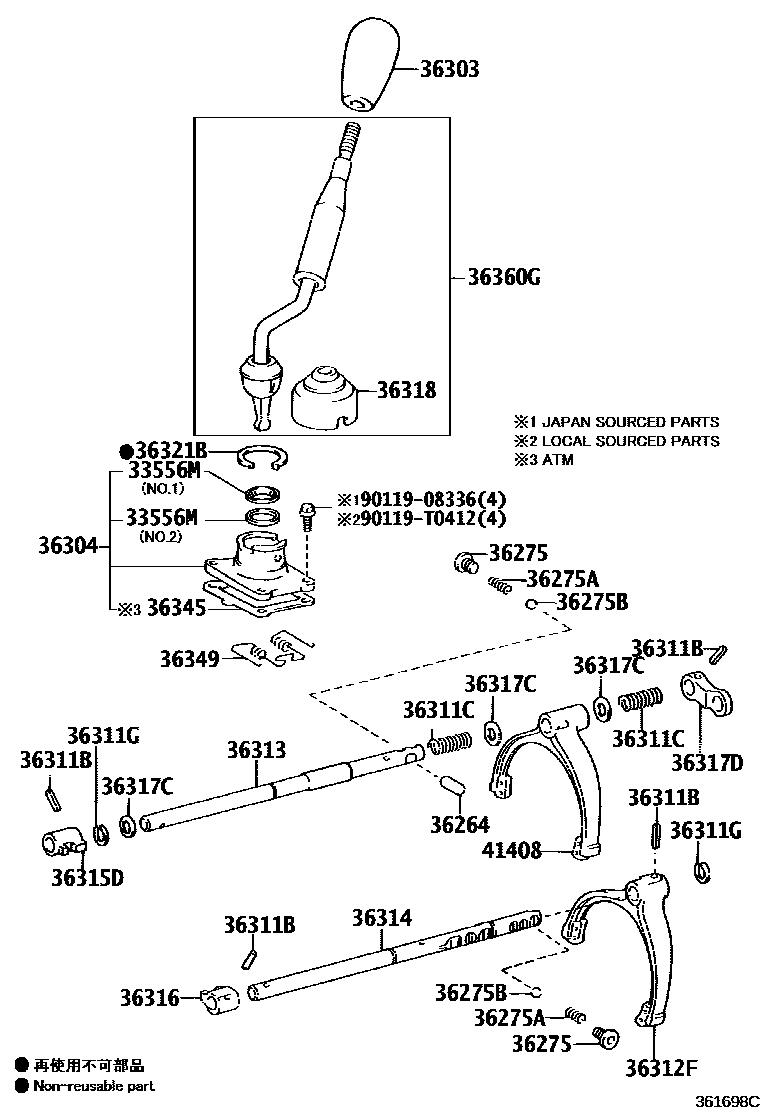

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33556MSEAT, TRANSFER SHIFT LEVER BALL

main33556-14010iTGN51..PKN201107-201609

NO.1

main33556-14020iGGN50,LAN50,TGN51..5F; TGN51..4FC..KZS201107-201703

NO.2; T/P B:SEE 36-08,NO.2,T/P A:SEE 36-08,NO.2

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-10020iKUN51..TH201107-201203

L=25.7,OD=9.53,TYPE A:REFER 36-08

main90250-T0025iGGN50,TGN51..EPT201303-201612

L=25.7,OD=9.53,TYPE B:REFER 36-08

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014×2iTGN51..KZS201107-201703

TYPE A:REFER 36-08

main90341-T0014×2iTGN51..KZS201411-201703

TYPE B:REFER 36-08

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116×2iTGN51..VN201107-201611

L=23,TYPE A:REFER 36-08

main90501-T0035×2iTGN51..KZS201303-201703

L=23,TYPE B:REFER 36-08

36275BBALL, SHIFT DETENT

main90360-10003×2iTGN51..VN201107-201611

OD=9.52,STEEL,TYPE A:REFER 36-08

main90360-T0008×2iTGN51..PKN201403-201609

OD=9.53,STEEL,TYPE B:REFER 36-08

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-0K010-C0iKUN50..MA201308-201601

BLACK,TRIM2#

main36303-0K010-E1iKUN51..5F..(GEN,TH);GGN50,KUN50..GEN,LA,MA;LAN50,TGN51..CO,EPT,GCC,SA;KUN51..LHD..DCR..(CO,LA,SA);KUN51..LHD..(SASUV,THSUV)..4FC201107-201308

ASH BROWN,TRIM4#

main36303-60290-B0iKUN51..TH201208-201308

DK.GRAY,TRIM1#

main36303-60290-C0iTGN51..PKN201308-201609

BLACK,TRIM4#

main36303-60290-E1iKUN51..IND,PHL;KUN51..RHD..5F..SA;KUN51..RHD..(4FC,5FC);KUN51..LHD..SUVW..GEN;GGN50..ANCOM,CO,EPT,GCC,SA;KUN51,TGN51..(HTWC,IART)..(GEN,IDN,LA,MA,PKN,VN); LAN50..RHD;KUN51..THSUV;KUN51..5F..TH;KUN51..LHD..SASUV..4FC;KUN51..LHD..DCR..(CO,LA,SA);GGN50,TGN51..LHD..(GEN,LA,SA)201107-201308

ASH BROWN,TRIM4#; SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-0K010iKUN51..5F201107-201608

TYPE C:REFER 33-01

main36304-60040iKUN51..5F; KUN51..5FC..IND201107-201608

TYPE D:REFER 33-01

main36304-60100iGGN50,LAN50,TGN51..5F201107-201703

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×4iKUN51..5FC..TH;KUN51..CO,GEN,LA,PHL,SA;GGN50,KUN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA)201107

L=22,TYPE A:REFER 36-08

main90254-T0003×4iGGN50,LAN50,TGN51..5F; TGN51..4FC..KZS201304-201703

L=22,TYPE B:REFER 36-08

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-18128×2iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH; KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA201107

TYPE A:REFER 36-08; TYPE B:REFER 36-08

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002×2iLAN50..RHD;TGN51..5F..SA;KUN51..(4FC,5FC)..CO;GGN50,TGN51..(SUVW,THSUV)..(GCC,GEN,IDN);KUN51..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)201107-201411

TYPE B:REFER 36-08

main90520-T0237×2iGGN50,KUN5#,LAN50,TGN51201411

TYPE B:REFER 36-08

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36302-60190iKUN51..IND201107-201608

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36313SHAFT, TRANSFER FRONT DRIVE SHIFT

main36313-60140iGGN50,LAN50,TGN51..5F201107-201703

TYPE B:REFER 36-08,TYPE A:REFER 36-08

main36313-60150iKUN51..5F..IND201107-201608

TYPE B:REFER 36-08,TYPE A:REFER 36-08

main36313-71020iGGN50..EPT201107-201612

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-60120iGGN50,LAN50,TGN51..5F201107-201703

TYPE B:REFER 36-08,TYPE A:REFER 36-08

main36314-60130iTGN51..4FC..(CO,GCC,GEN,IDN,KZS,MA,SA);KUN5#..(4FC,5F)..(CO,GEN,IDN,LA,MA,PHL,SA); TGN51..4FC..(CO,GCC,GEN,IDN,KZS,MA,SA);KUN5#..(4FC,5F)..(CO,GEN,IDN,LA,MA,PHL,SA,TH)201107-201703

TYPE A:REFER 36-08; TYPE B:REFER 36-08

main36314-71020iGGN50,KUN51..5FC..(ANCOM,CO,GCC,GEN,LA,SA,TH)201107

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36315-60030iTGN51..PKN201107-201609

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36316HEAD, TRANSFER GEAR SHIFT, NO.2

main36316-60010iKUN51..TH201107-201203

TYPE A:REFER 36-08

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-35020×3iKUN51..TH201107-201203

TYPE A:REFER 36-08

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-60020iKUN51..TH201107-201203

TYPE A:REFER 36-08

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iTGN51..PKN201107-201609

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iTGN51..VN201107-201611

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35040iTGN51..VN201107-201611

36349SPRING, TRANSFER SELECT RETURN

main36349-60010iGGN50,LAN50,TGN51..5F201107-201703

TYPE B:REFER 36-08,TYPE A:REFER 36-08

main36349-60020iTGN51..PKN201107-201609

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-71011iTGN51..RHD201107-201609

main36360-71021iTGN51..4FC..(CO,GCC,KZS,SA)201107-201703

main36360-71030iTGN51..5F201107-201703

main36360-71070iKUN5#..RHD..(4FC,5FC)201107-201608

main36360-71080iKUN51..RHD..5F201107-201608

main36360-71090iKUN51..LHD..(4FC,5FC)201107-201512

main36360-71100iKUN51..LHD..5F201107-201512

main36360-71190iGGN50..SA201108-201512

main36360-71200iLAN50..RHD201108-201310

main36360-71210iGGN50..EPT201107-201612

main36360-71220iGGN50,LAN50..LHD..5F201107-201512

41408FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK

main41408-60030iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH; KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA201107

TYPE A:REFER 36-08; TYPE B:REFER 36-08

9011908336

main90119-08336

90119T0412

main90119-T0412

25 parts on this diagram · 2 diagrams in section
