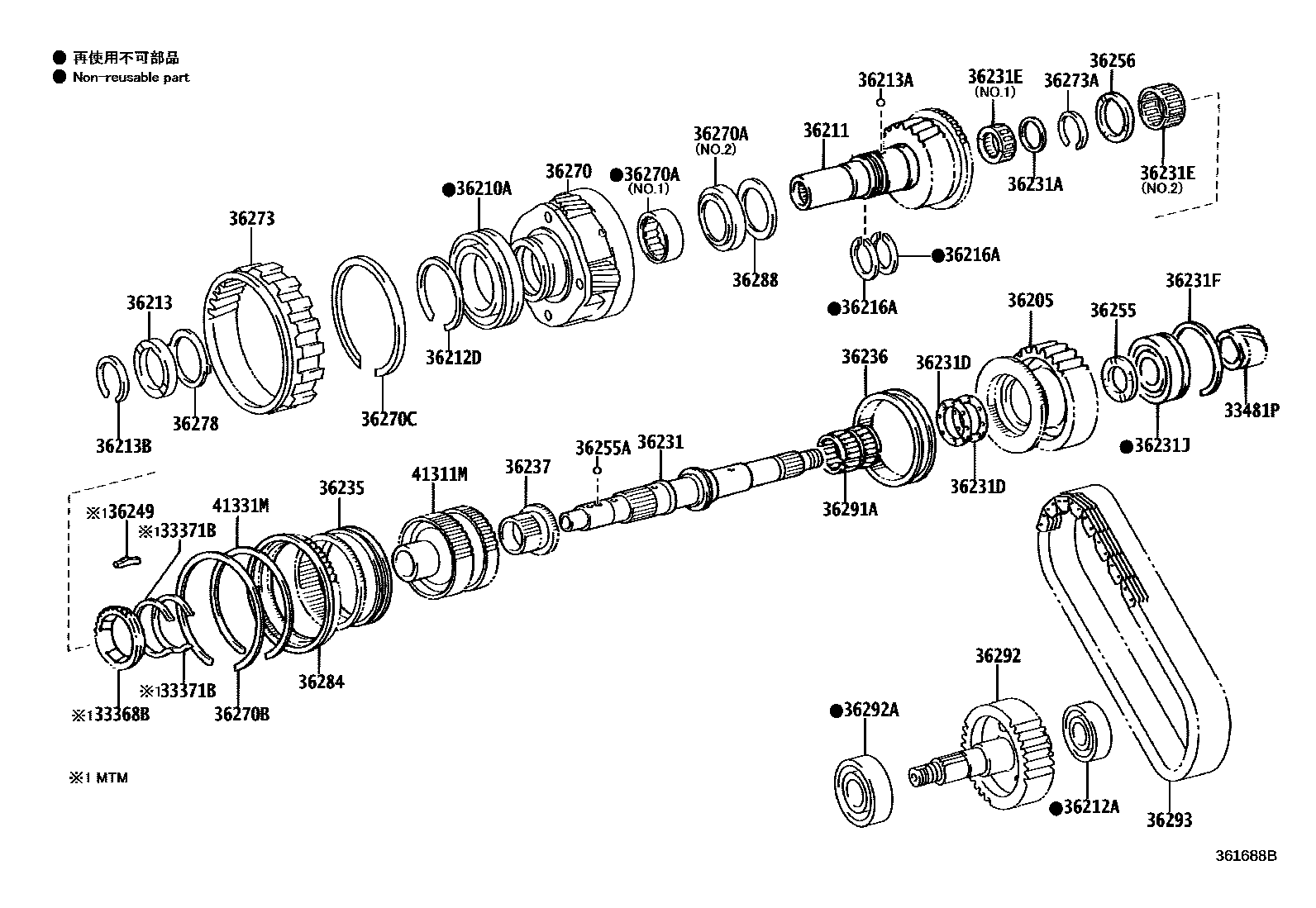

TRANSFER GEAR

33368BRING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH)

main33367-0K290iKUN51..5F..IND201306-201608

TYPE B:REFER 36-08

main33367-60130iKUN51,TGN51..5F..(GCC,TH)201107-201308

TYPE B:REFER 36-08

33371BSPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)

main33371-36030×2iGGN50,KUN51,LAN50,TGN51..5F..(CO,GCC,GEN,KZS,LA,SA); GGN50,KUN51,LAN50,TGN51..5F..(CO,GCC,GEN,KZS,LA,SA,TH)201107-201703

TYPE A:REFER 36-08; TYPE B:REFER 36-08

33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)

main33481-60130iKUN51..5FC..TH;TGN51..5F..(GCC,KZS,SA);KUN5#..(4FC,5FC)..(CO,GEN,IDN,LA,MA,PHL,SA); TGN51..5F..(GCC,KZS,SA);KUN5#..(4FC,5FC)..(CO,GEN,IDN,LA,MA,PHL,SA,TH)201107-201703

N=11,TYPE A:REFER 36-08; N=11,TYPE B:REFER 36-08

main33481-60150iTGN51..PKN201107-201609

N=10,TYPE B:REFER 36-08,TYPE A:REFER 36-08

main33481-71010iGGN50..EPT201107-201612

N=11,TYPE B:REFER 36-08,TYPE A:REFER 36-08

36205SPROCKET SUB-ASSY, TRANSFER DRIVE

main36205-0K010iGGN50,TGN51..EPT201107-201612

TYPE B:REFER 36-08

main36205-60020iKUN51..TH201107-201203

TYPE A:REFER 36-08

main36205-60040iTGN51..PKN201307-201609

TYPE A:REFER 36-08

36210ABEARING (FOR TRANSFER INPUT SHAFT)

main90363-75001iGGN50,TGN51..EPT201107-201612

TYPE A:REFER 36-08

main90363-T0038iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201303

TYPE B:REFER 36-08

36211SHAFT, TRANSFER INPUT

main36201-0K010iGGN50,KUN5#,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

TYPE B:REFER 36-08

main36201-0K020iKUN51..5F..IND201107-201608

TYPE B:REFER 36-08

main36201-0K030iLAN50201108-201512

TYPE B:REFER 36-08

main36201-60020iKUN51..5FC..IND201107-201608

TYPE A:REFER 36-08

main36201-60030iKUN51..5F..IND201107-201608

TYPE A:REFER 36-08

main36201-60040iLAN50201108-201512

TYPE A:REFER 36-08

36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)

main90363-28013iKUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN201107

TYPE A:REFER 36-08

36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)

main90520-72001iGGN50,KUN5#,LAN50,TGN51201107-201303

T=1.45,MARK 1,TYPE B:REFER 36-08

main90520-72002iKUN51..TH201107-201203

T=1.50,MARK 2,TYPE A:REFER 36-08

main90520-72003iKUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN201107

T=1.55,MARK 3,TYPE A:REFER 36-08

main90520-72004iGGN50,KUN5#,LAN50,TGN51201107-201303

T=1.60,MARK 4,TYPE B:REFER 36-08

main90520-72005iGGN50,KUN5#,LAN50,TGN51201107-201303

T=1.65,MARK 5,TYPE B:REFER 36-08

main90520-T0136iGGN50,KUN5#,LAN50,TGN51201303

T=1.45,MARK 1,TYPE B:REFER 36-08

main90520-T0137iGGN50,KUN5#,LAN50,TGN51201303

T=1.50,MARK 2,TYPE B:REFER 36-08

main90520-T0138iGGN50,KUN5#,LAN50,TGN51201303

T=1.55,MARK 3,TYPE B:REFER 36-08

main90520-T0139iGGN50,KUN5#,LAN50,TGN51201303

T=1.60,MARK 4,TYPE B:REFER 36-08

main90520-T0140iGGN50,KUN5#,LAN50,TGN51201303

T=1.65,MARK 5,TYPE B:REFER 36-08

36213STOPPER, TRANSFER INPUT GEAR

main36213-0K010iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201303

TYPE B:REFER 36-08

main36213-35020iTGN51..VN201107-201611

TYPE A:REFER 36-08

36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)

main90360-05012iKUN51..IND201107-201608

TYPE A:REFER 36-08

main90360-T0010iTGN51..KZS201405-201703

TYPE B:REFER 36-08

36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)

main90520-44003iKUN51..TH201107-201203

T=2.10-2.15,TYPE A:REFER 36-08

main90520-44004iKUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN201107

T=2.15-2.20,TYPE A:REFER 36-08

main90520-44005iKUN51..TH201107-201203

T=2.20-2.25,TYPE A:REFER 36-08

main90520-44006iKUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN201107

T=2.25-2.30,TYPE A:REFER 36-08

main90520-44007iLAN50..RHD;TGN51..5F..SA;KUN51..(4FC,5FC)..CO;GGN50,TGN51..(SUVW,THSUV)..(GCC,GEN,IDN);KUN51..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)201107-201411

T=2.30-2.35,TYPE B:REFER 36-08

main90520-44008iKUN51..TH201107-201203

T=2.35-2.40,TYPE A:REFER 36-08

main90520-44009iLAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA201107-201410

T=2.40-2.45,TYPE B:REFER 36-08

main90520-44010iLAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA201107-201410

T=2.45-2.50,TYPE B:REFER 36-08

main90520-44011iKUN51..TH201107-201203

T=2.50-2.55,TYPE A:REFER 36-08

main90520-44012iKUN51..TH201107-201203

T=2.55-2.60,TYPE A:REFER 36-08

main90520-44013iKUN51..TH201107-201203

T=2.60-2.65,TYPE A:REFER 36-08

main90520-44014iKUN51..TH201107-201203

T=2.65-2.70,TYPE A:REFER 36-08

main90520-44015iKUN51..TH201107-201203

T=2.70-2.75,TYPE A:REFER 36-08

main90520-44016iKUN51..TH201107-201203

T=2.75-2.80,TYPE A:REFER 36-08

main90520-44017iLAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA201107-201410

T=2.80-2.85,TYPE B:REFER 36-08

main90520-44018iKUN51..TH201107-201203

T=2.85-2.90,TYPE A:REFER 36-08

main90520-44019iKUN51..TH201107-201203

T=2.90-2.95,TYPE A:REFER 36-08

main90520-44020iKUN51..TH201107-201203

T=2.95-3.00,TYPE A:REFER 36-08

main90520-44021iKUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN201107

T=3.00-3.05,TYPE A:REFER 36-08

main90520-T0202iGGN50,KUN5#,LAN50,TGN51201411

T=2.10-2.15,TYPE B:REFER 36-08

main90520-T0203iGGN50,KUN5#,LAN50,TGN51201411

T=2.15-2.20,TYPE B:REFER 36-08

main90520-T0204iGGN50,KUN5#,LAN50,TGN51201411

T=2.20-2.25,TYPE B:REFER 36-08

main90520-T0205iGGN50,KUN5#,LAN50,TGN51201411

T=2.25-2.30,TYPE B:REFER 36-08

main90520-T0206iGGN50,KUN5#,LAN50,TGN51201411

T=2.30-2.35,TYPE B:REFER 36-08

main90520-T0207iGGN50,KUN5#,LAN50,TGN51201411

T=2.35-2.40,TYPE B:REFER 36-08

main90520-T0208iGGN50,KUN5#,LAN50,TGN51201411

T=2.40-2.45,TYPE B:REFER 36-08

main90520-T0209iGGN50,KUN5#,LAN50,TGN51201411

T=2.45-2.50,TYPE B:REFER 36-08

main90520-T0210iGGN50,KUN5#,LAN50,TGN51201411

T=2.50-2.55,TYPE B:REFER 36-08

main90520-T0211iGGN50,KUN5#,LAN50,TGN51201411

T=2.55-2.60,TYPE B:REFER 36-08

main90520-T0212iGGN50,KUN5#,LAN50,TGN51201411

T=2.60-2.65,TYPE B:REFER 36-08

main90520-T0213iGGN50,KUN5#,LAN50,TGN51201411

T=2.65-2.70,TYPE B:REFER 36-08

main90520-T0214iGGN50,KUN5#,LAN50,TGN51201411

T=2.70-2.75,TYPE B:REFER 36-08

main90520-T0215iGGN50,KUN5#,LAN50,TGN51201411

T=2.75-2.80,TYPE B:REFER 36-08

main90520-T0216iGGN50,KUN5#,LAN50,TGN51201411

T=2.80-2.85,TYPE B:REFER 36-08

main90520-T0217iGGN50,KUN5#,LAN50,TGN51201411

T=2.85-2.90,TYPE B:REFER 36-08

main90520-T0218iGGN50,KUN5#,LAN50,TGN51201411

T=2.90-2.95,TYPE B:REFER 36-08

main90520-T0219iGGN50,KUN5#,LAN50,TGN51201411

T=2.95-3.00,TYPE B:REFER 36-08

main90520-T0220iGGN50,KUN5#,LAN50,TGN51201411

T=3.00-3.05,TYPE B:REFER 36-08

36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1

main36216-35012×2iTGN51..KZS201107-201703

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36231SHAFT, TRANSFER OUTPUT, REAR

main36231-0K010iGGN50,KUN5#,LAN50,TGN51201107

TYPE B:REFER 36-08

main36231-35050iKUN51..TH201107-201203

TYPE A:REFER 36-08

main36231-35051iGGN50202012

TYPE A:REFER 36-08

36231ASPACER (FOR TRANSFER OUTPUT SHAFT)

main90560-28004iTGN51..VN201107-201611

T=4.0,TYPE B:REFER 36-08,TYPE A:REFER 36-08

36231DWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

main36275-35020×2iKUN51..TH201107-201203

TYPE A:REFER 36-08

36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)

main90364-28004iKUN51..TH201107-201203

T/P A:SEE 36-08,NO.1

main90364-35009iTGN51..PKN201107-201609

T/P B:SEE 36-08,NO.2,T/P A:SEE 36-08,NO.2

main90364-C0016iTGN51..VN201502-201611

T/P B:SEE 36-08,NO.1

36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)

main90520-82001iGGN50,KUN5#,LAN50,TGN51; KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN201107

T=1.65,TYPE A:REFER 36-08; T=1.65,TYPE B:REFER 36-08

36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)

main90363-32040iTGN51..KZS201107-201703

TYPE A:REFER 36-08

main90363-T0039iTGN51..VN201303-201611

TYPE B:REFER 36-08

36235SLEEVE, TRANSFER HIGH & LOW CLUTCH

main36235-0K010iTGN51..KZS201107-201703

TYPE B:REFER 36-08

main36235-35031iTGN51..PKN201107-201609

TYPE A:REFER 36-08

36236SLEEVE, FRONT DRIVE CLUTCH

main36236-0K010iTGN51..PKN201107-201609

TYPE B:REFER 36-08

main36236-60080iTGN51..VN201107-201611

TYPE A:REFER 36-08

36237HUB, TRANSFER CLUTCH

main36237-60060iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH; KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA201107

TYPE A:REFER 36-08; TYPE B:REFER 36-08

36249KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2

main36249-60030×3iKUN51..5F..TH201107-201203

TYPE A:REFER 36-08

36255SPACER, TRANSFER OUTPUT SHAFT, NO.1

main36255-35030iGGN50,TGN51..EPT201107-201612

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)

main90360-05012iKUN51..TH201107-201203

TYPE A:REFER 36-08

main90360-T0010iKUN51..IND201405-201608

TYPE B:REFER 36-08

36256SPACER, TRANSFER OUTPUT SHAFT, NO.2

main36256-35030iTGN51..PKN201107-201609

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36270GEAR ASSY, TRANSFER LOW PLANETARY

main36270-0K010iKUN51..IND201107-201608

TYPE B:REFER 36-08

main36270-35040iKUN51..IND201107-201608

TYPE A:REFER 36-08

36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)

main90364-47001iTGN51..VN201107-201611

T/P A:SEE 36-08,NO.1

main90364-T0033iTGN51..KZS201303-201703

T/P B:SEE 36-08,NO.1

main90374-49001iTGN51..VN201107-201611

T/P A:SEE 36-08,NO.2

main90374-C0017iTGN51..PKN201502-201609

T/P B:SEE 36-08,NO.2

36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)

main90520-99078iKUN51..TH201107-201203

T=2.0,TYPE A:REFER 36-08

36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)

main90520-99072iLAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA201107-201410

TYPE B:REFER 36-08

main90520-T0188iGGN50,KUN5#,LAN50,TGN51201411

TYPE B:REFER 36-08

36273GEAR, TRANSFER LOW PLANETARY RING

main36273-0K010iGGN50,TGN51..EPT201107-201612

TYPE B:REFER 36-08

main36273-35030iKUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA201107

TYPE A:REFER 36-08

36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)

main90520-29052iGGN50,KUN5#,LAN50,TGN51; KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN201107

TYPE A:REFER 36-08; TYPE B:REFER 36-08

36278WASHER, MANUAL TRANSFER PLANETARY CARRIER

main36278-0K010iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201403

T=0.95-1.05,TYPE B:REFER 36-08

main36278-35020iTGN51..VN201107-201611

T=0.95-1.05,TYPE A:REFER 36-08

36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE

main36284-0K010iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

TYPE B:REFER 36-08

main36284-35031iKUN51..IND201107-201608

TYPE A:REFER 36-08

36288RACE, TRANSFER THRUST BEARING, NO.1

main36288-0K010iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201502

TYPE B:REFER 36-08

main36288-28010iTGN51..KZS201107-201703

TYPE A:REFER 36-08

36291ABEARING (FOR TRANSFER DRIVE SPROCKET)

main90364-37013iGGN50,KUN5#,LAN50,TGN51; KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN201107

TYPE A:REFER 36-08; TYPE B:REFER 36-08

36292SPROCKET, TRANSFER DRIVEN

main36292-0K010iGGN50,TGN51..EPT201107-201612

TYPE B:REFER 36-08

main36292-35050iKUN51..TH201107-201203

TYPE A:REFER 36-08

main36292-35070iTGN51..KZS201307-201703

TYPE A:REFER 36-08

36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)

main90363-32037iKUN51..TH201107-201203

TYPE A:REFER 36-08

main90363-T0036iKUN51..IND201303-201608

TYPE B:REFER 36-08

36293CHAIN, TRANSFER FRONT DRIVE

main36293-35040iGGN50,TGN51..EPT201107-201612

TYPE B:REFER 36-08

main36293-35050iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201307

TYPE A:REFER 36-08

41311MCASE, CENTER DIFFERENTIAL

main41301-60130iGGN50,KUN5#,TGN51..4FC,5FC; KUN51..5FC..TH;GGN50,KUN5#,TGN51..(4FC,5FC)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN)201107-201511

TYPE A:REFER 36-08; TYPE B:REFER 36-08

main41301-60131iGGN50,KUN5#,TGN51..4FC,5FC201511-201712

TYPE B:REFER 36-08,TYPE A:REFER 36-08

main41301-60132iGGN50201801

TYPE B:REFER 36-08,TYPE A:REFER 36-08

main41301-60140iGGN50,KUN51,LAN50,TGN51..5F; GGN50,KUN51,LAN50,TGN51..5F..(CO,GCC,GEN,IND,KZS,LA,SA)201107-201511

TYPE A:REFER 36-08; TYPE B:REFER 36-08

main41301-60141iKUN51,LAN50,TGN51..5F201511-201703

TYPE B:REFER 36-08,TYPE A:REFER 36-08

41331MRING, HOLE SNAP(FOR CENTER DIFFERENTIAL PLANETARY RING GEAR)

main90520-99079iKUN51..TH201107-201203

TYPE A:REFER 36-08

40 parts on this diagram · 1 diagram in section
