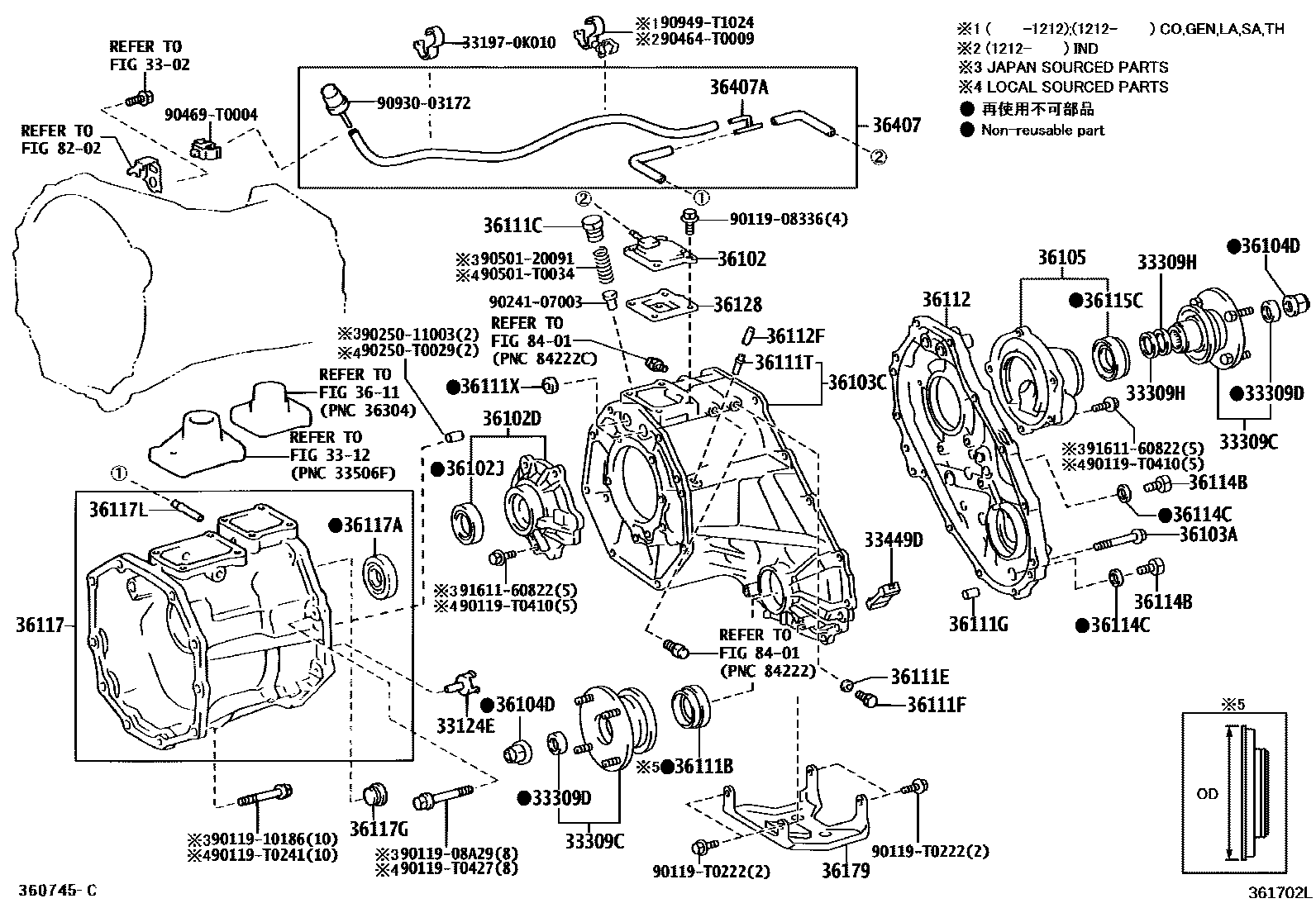

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1 0004 1 0005 1

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

33124EPIPE, OIL RECEIVER(FOR TRANSFER)

main33124-0K010iGGN50,KUN51,TGN51..5F; KUN51,TGN51..5F;GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC201107-201703

TYPE C:REFER 33-01; TYPE D:REFER 33-01

main33124-0K060iGGN50,KUN51,TGN51..(SUVW,THSUV)..5F..(GCC,GEN)201304-201308

TYPE B:SEE 33-01,(L)

main33124-35100iGGN50,KUN51,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,TH)201107-201308

TYPE B:SEE 33-01,(J)

main33124-36010iLAN50201108-201512

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-0K010iTGN51..4FC;GGN50,KUN5#,LAN50;TGN51..5F..(CO,KZS,SA)201303-201503

FR,TYPE B:REFER36-08

main33309-0K011iGGN50,KUN5#,LAN50,TGN51201503-201901

FR,TYPE B:REFER36-08

main33309-0K012iGGN50201902

FR,TYPE B:REFER36-08

main33309-0K020iTGN51..4FC;GGN50,KUN5#,LAN50;TGN51..5F..(CO,KZS,SA)201303

RR,TYPE B:REFER36-08

main33309-35111iKUN51..TH201107-201203

FR,TYPE A:REFER36-08

main33309-35112iGGN50,KUN5#,LAN50,TGN51201411-201904

FR,TYPE A:REFER36-08

main33309-35113iGGN50201905

FR,TYPE A:REFER36-08

main33309-35120iTGN51..4FC;KUN51..5FC..TH;TGN51..5F..(CO,SA);GGN50,KUN5#,LAN50..ANCOM,CO,EPT,GCC,GEN,IND,LA,MA,PHL,SA201107-201303

RR,TYPE B:REFER36-08

33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)

main90312-23001×2iTGN51..5F..GCC;KUN51..(4FC,5F)..TH201107-201308

TYPE B:REFER 36-08

main90312-T0004×2iTGN51..4FC;GGN50,KUN5#,LAN50;TGN51..5F..(CO,KZS,SA)201303

TYPE B:REFER 36-08

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-35030×2iKUN51..TH201107-201203

N=31,OD=38,TYPE A:REFER 36-08

33449DMAGNET (FOR TRANSFER CASE)

main33449-32020iKUN51..TH201107-201203

TYPE A:REFER 36-08

36102COVER SUB-ASSY, TRANSFER CASE

main36102-0K020iKUN51;GGN50,KUN50,TGN51..4FC,5FC201303

TYPE B:REFER 36-08

main36102-35040iKUN51..TH201107-201203

TYPE A:REFER 36-08

36102DRETAINER SUB-ASSY, TRANSFER RH BEARING

main36102-0K010iKUN51..IND201303-201608

TYPE B:REFER 36-08

main36102-35060iTGN51..VN201107-201611

TYPE A:REFER 36-08

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-43008iKUN51..TH201107-201203

TYPE A:REFER 36-08

main90311-T0071iGGN50,KUN5#,LAN50,TGN51201403

TYPE B:REFER 36-08

36103ABOLT (FOR TRANSFER CASE)

main90119-08A28×12iKUN51..IND201107-201608

*8-1.25PX55-30,TYPE A:REFER 36-08

main90119-T0411×12iKUN51..IND201306-201608

*8-1.25PX55-30,TYPE B:REFER 36-08

36103CCASE, TRANSFER, FRONT

main36103-0K010iGGN50,KUN5#,LAN50,TGN51201107-201404

TYPE B:REFER 36-08

main36103-60350iTGN51..PKN201107-201609

TYPE A:REFER 36-08

main36111-0K011iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201404

TYPE B:REFER 36-08

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-22016×2iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH; KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA201107

TYPE A:REFER 36-08; TYPE B:REFER 36-08

36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT

main36105-60040iGGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH; KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA201107

TYPE A:REFER 36-08; TYPE B:REFER 36-08

3611TRANSFER LEVER & SHIFT ROD

→ Go to FIG 36-11

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-41013iKUN51..TH201107-201203

T/P A:SEE36-08,OD=80

main90311-41017iGGN50,KUN5#,LAN50,TGN51201411

T/P A:SEE36-08,OD=90

main90311-T0070iGGN50,KUN5#,LAN50,TGN51201403-201503

T/P B:SEE36-08,OD=80

main90311-T0082iGGN50,KUN5#,LAN50,TGN51201503

T/P B:SEE36-08,OD=90

36111CPLUG (FOR TRANSFER CASE)

main90341-14012iTGN51..VN201107-201611

TYPE A:REFER 36-08

main90341-T0013iTGN51..KZS201411-201703

TYPE B:REFER 36-08

36111EGASKET (FOR TRANSFER CASE)

main90430-18008iTGN51..5F..(CO,SA);GGN50,KUN51,LAN50..5F201107-201403

TYPE B:REFER 36-08

main90430-T0021iKUN51..5F..IND201403-201608

TYPE B:REFER 36-08

36111FPLUG (FOR TRANSFER CASE)

main90341-18006iKUN51..5F..TH201107-201203

TYPE A:REFER 36-08

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214×2iLAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA201107-201410

L=14,OD=10,TYPE B:REFER 36-08

main90250-T0026×2iTGN51..KZS201411-201703

L=14,OD=10,TYPE B:REFER 36-08

36111TTUBE (FOR TRANSFER CASE)

main90406-T0007iTGN51..PKN201303-201609

TYPE B:REFER 36-08

main90441-05001×2iGGN50..EPT; TGN51..EPT201107-201612

TYPE A:REFER 36-08

36111XSEAL, OIL (FOR TRANSFER CASE), NO.2

main90311-15008×2iGGN50,KUN5#,LAN50,TGN51; KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN201107

TYPE A:REFER 36-08; TYPE B:REFER 36-08

36112CASE, TRANSFER, REAR

main36112-0K010iGGN50,TGN51..EPT201107-201612

TYPE B:REFER 36-08

main36112-60180iKUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA201107

TYPE A:REFER 36-08

36112FCAP, TRANSFER, REAR CASE

main90339-04024iKUN51..TH201107-201203

TYPE A:REFER 36-08

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006×2iTGN51..PKN201107-201609

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008×2iTGN51..KZS201107-201703

TYPE A:REFER 36-08

main90430-T0021×2iTGN51..PKN201403-201609

TYPE B:REFER 36-08

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-41007iGGN50,KUN5#,LAN50,TGN51; KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN201107-201912

TYPE A:REFER 36-08; TYPE B:REFER 36-08

main90311-41020iGGN50201912

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36117ADAPTER, TRANSFER

main36107-0K010iKUN51..5F201107-201608

TYPE C:REFER 33-01

main36107-0K020iGGN50,TGN51..5F; TGN51..5F;GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC201107-201703

TYPE C:REFER 33-01; TYPE D:REFER 33-01

main36107-0K030iKUN51..5F201107-201608

TYPE D:REFER 33-01

main36107-0K050iKUN51..(SUVW,THSUV)..5F..(GEN,TH)201107-201308

TYPE B:REFER 33-01

main36107-0K060iGGN50,TGN51..(SUVW,THSUV)..5F..(GCC,GEN)201107-201308

TYPE B:REFER 33-01

main36107-60070iKUN51..5F..TH201107-201208

TYPE A:REFER 33-01

main36107-60080iTGN51..SUVW..5F..(GCC,KZS,SA)201204-201503

TYPE A:REFER 33-01

main36107-71010iLAN50201108-201512

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90311-43007iTGN51..SUVW..5F..(GCC,SA)201204-201503

TYPE A:REFER 33-01

main90311-T0018iGGN50,KUN51,TGN51..5F; KUN51,TGN51..5F;GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC201107-201511

TYPE C:REFER 33-01; TYPE D:REFER 33-01

main90311-T0028iGGN50,KUN51,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,TH)201107-201308

TYPE B:REFER 33-01

main90311-T0080iKUN51..5F..IND201511-201608

TYPE D:REFER 33-01,TYPE C:REFER 33-01

36117GPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-24006iKUN51..5F..TH201107-201208

TYPE A:REFER 33-01

36117LTUBE(FOR TRANSFER ADAPTER)

main90406-T0007iTGN51..5F..KZS201502

(L)

main90441-05001iKUN51..IDSUV;TGN51..4FC..CO;KUN51..SUVW..LA;KUN51..(5F,5FC)..CO;GGN50,KUN50..(4FC,5FC)..(CO,IDN,LA);GGN50,TGN51..IDSUV..(4FC,5FC)..(GCC,GEN,IDN)201107-201510

36128DEFLECTOR, BREATHER OIL

main36128-0K020iGGN50..5FC; KUN5#;TGN51..4FC201502

TYPE B:REFER 36-08

main36128-35060iGGN50,KUN50,TGN51..4FC,5FC;KUN51..(4FC,5F)..(CO,GEN,IND,LA,PHL,SA)201107

TYPE A:REFER 36-08

main36128-60061iGGN50,LAN50,TGN51..5F201107-201703

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36179PROTECTOR, TRANSFER CASE LOWER

main36179-0K010iLAN50..LHD;KUN51..5FC;TGN51..4FC..SA;KUN51..IDSUV,SASUV;TGN51..CO,EPT,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);GGN50,KUN50..ANCOM,CO,EPT,LA,MA,SA;KUN51..SUVW..(4FC,5F)..(CO,IND,LA,SA)201107-201310

main36179-0K011iTGN51..VN201311-201611

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60060iLAN50201108-201512

main36407-71010iTGN51..PKN201107-201609

main36407-71050iKUN51..5FC201204-201608

main36407-71070iGGN50,KUN51,TGN51..5F..(CO,GCC,GEN,KZS,LA,SA,TH)201107-201703

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04001iKUN51..5F..IND201107-201608

main90413-04008iTGN51..PKN201107-201609

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

331970K010CLAMP, TRANSMISSION BREATHER

main33197-0K010

9011908336

main90119-08336

9011908A29

main90119-08A29

9011910186

main90119-10186

90119T0222

main90119-T0222

90119T0241

main90119-T0241

90119T0410

main90119-T0410

90119T0427

main90119-T0427

9024107003

main90241-07003

9025011003

main90250-11003

90250T0029

main90250-T0029

90464T0009

main90464-T0009

90469T0004

main90469-T0004

9050120091

main90501-20091

90501T0034

main90501-T0034

9093003172

main90930-03172

90949T1024

main90949-T1024

9161160822

main91611-60822

55 parts on this diagram · 5 diagrams in section
