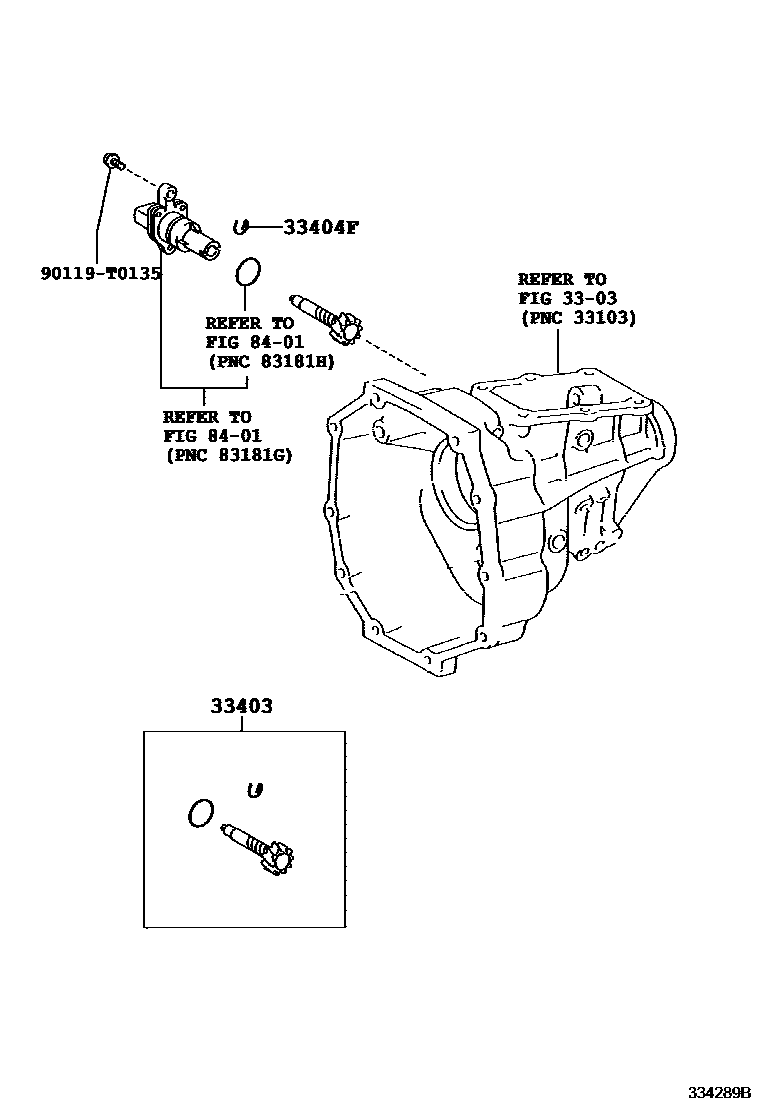

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1R150,R151 0002 1R150F,R151,R151F

3303EXTENSION HOUSING (MTM)

→ Go to FIG 33-03

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39355iTGN51..5F..CO;LAN50,TGN61..5F..(CO,SA)201108-201512

N=31,MARK 31:10

main33403-39365iTGN51,61..5F..(GCC,KZS,LA,SA)201107-201703

N=30,MARK 30:11

main33403-39515iKUN60..5F..IND201107-201608

N=29,MARK 29:11

main33403-39575iGGN50,KUN51..5F201107-201608

N=27,MARK 27:11

main33403-79015iKUN61..5F201108-201608

N=26,MARK 26:11

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iGGN50,KUN51,6#,LAN50,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH)201107-201703

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119T0135

main90119-T0135

5 parts on this diagram · 2 diagrams in section
