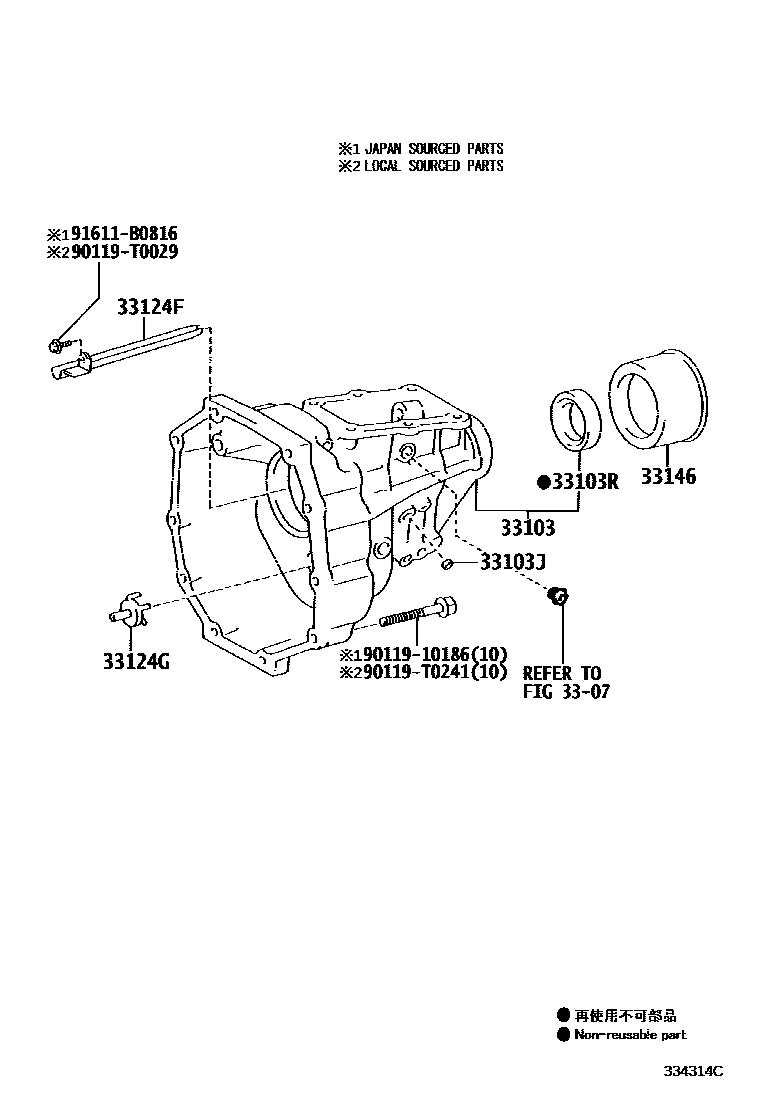

EXTENSION HOUSING (MTM)

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0K010iKUN6#,TGN61..5F201107-201406

TYPE C:REFER 33-01

main33103-0K011iKUN6#..5F..IND201407-201608

TYPE C:REFER 33-01

main33103-0K030iKUN6#,TGN61..5F..(DCR,HDCR,HTWC)201107-201406

TYPE D:REFER 33-01

main33103-0K031iKUN6#,TGN61..5F..(DCR,HDCR,HTWC)..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)201407-201611

TYPE D:REFER 33-01

main33103-0K040iKUN60,TGN61..SUVW..5F..(GCC,GEN,IDN,PHL,TH)201107-201502

TYPE B:REFER 33-01

main33103-0K041iKUN60..5F..TH201503-201504

TYPE B:REFER 33-01

main33103-35180iTGN61..5F..CO201204-201410

TYPE A:REFER 33-01

33103JPLUG, TIGHT(FOR EXTENSION HOUSING)

main90341-10065iKUN6#,TGN61..5F..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN); KUN6#,TGN61..5F..(DCR,HDCR,HTWC)..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)201107-201611

TYPE C:REFER 33-01; TYPE D:REFER 33-01

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-40032iKUN6#,TGN61..5F201107-201202

TYPE D:REFER 33-01

main90311-40035supersedes 90311-T0029iKUN60..5F..TH201107-201504

TYPE A:REFER 33-01

main90311-T0019iKUN6#,TGN61..5F201107-201203

TYPE C:REFER 33-01

main90311-T0029iKUN60..SUVW..5F..(GEN,IDN,PHL,TH)201107-201302

TYPE B:REFER 33-01

main90311-T0051iKUN60,TGN61..SUVW..5F..(GCC,GEN,IDN,PHL,TH)201306-201504

TYPE B:REFER 33-01

main90311-T0052iKUN6#..5F..IND201203-201608

TYPE C:REFER 33-01

main90311-T0067iKUN6#,TGN61..5F..(DCR,HDCR,HTWC)..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)201307-201611

TYPE D:SEE 33-01,(L)

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-0K020iKUN6#,TGN61..5F..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)201107-201611

TYPE C:REFER 33-01

main33124-0K040iKUN6#..5F..IND201107-201608

TYPE D:REFER 33-01

main33124-0K050iKUN60,TGN61..SUVW..5F..(GCC,GEN,IDN,PHL,TH)201107-201504

TYPE B:REFER 33-01

main33124-35090iTGN61..5F..CO201204-201410

TYPE A:REFER 33-01

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-0K010iKUN6#,TGN61..5F..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN); KUN6#,TGN61..5F..(DCR,HDCR,HTWC)..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)201107-201611

TYPE C:REFER 33-01; TYPE D:REFER 33-01

main33124-0K060iKUN60,TGN61..SUVW..5F..(GCC,GEN,IDN,PHL,TH)201304-201504

TYPE B:SEE 33-01,(L)

main33124-35100iTGN61..5F..CO201204-201410

TYPE A:REFER 33-01

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-04010iKUN6#,TGN61..5F..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)201107-201611

9011910186

main90119-10186

90119T0029

main90119-T0029

90119T0241

main90119-T0241

91611B0816

main91611-B0816

11 parts on this diagram · 1 diagram in section
