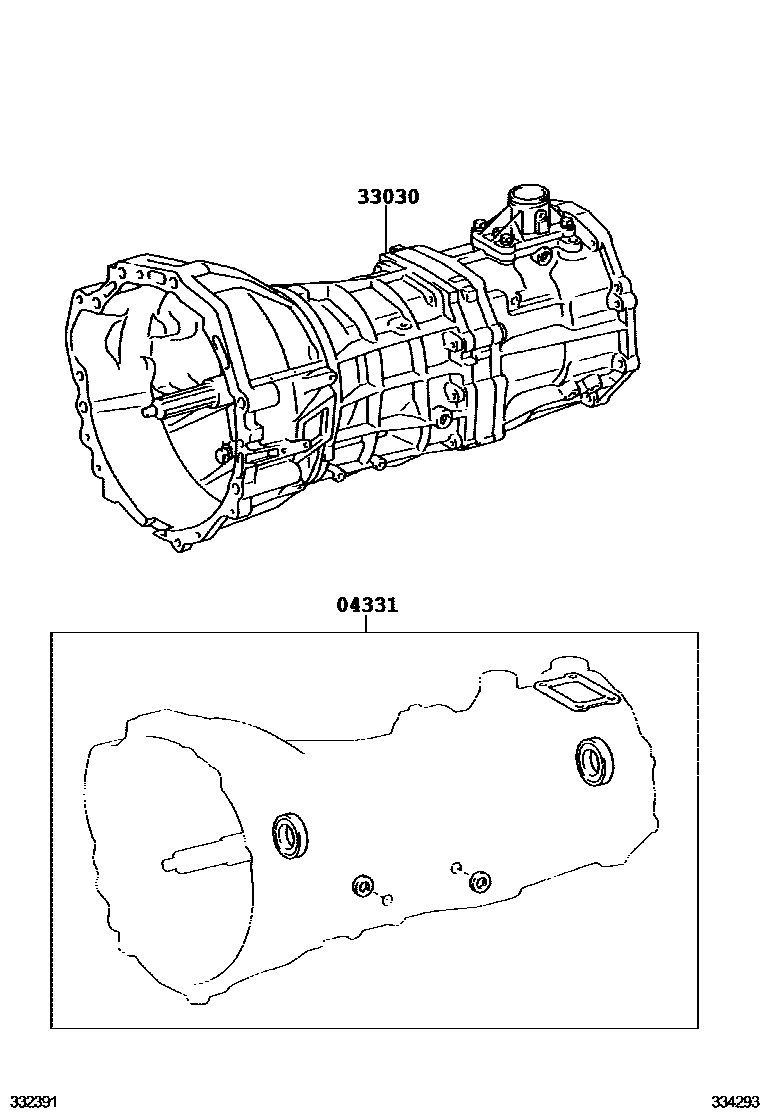

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-0K390i201107-201308

TYPE B:REFER ILLUST.

main04331-0K490i201107-201511

TYPE C:REFER ILLUST.; TYPE D:REFER ILLUST.

main04331-0K491i201511-201703

TYPE C:REFER ILLUST.,TYPE D:REFER ILLUST.

main04331-0K510i201107-201504

TYPE B:REFER ILLUST.

main04331-0K520i201107-201308

TYPE B:REFER ILLUST.

main04331-0K540i201107-201611

TYPE D:REFER ILLUST.

main04331-26210i201111-201611

TYPE C:REFER ILLUST.

main04331-60320i201108-201512

main04331-71190i201204-201410

TYPE A:REFER ILLUST.

main04331-71200i201204-201410

TYPE A:REFER ILLUST.

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-0K370i201107-201306

R150,TYPE D:REFER ILLUST.

main33030-0K372i201306-201404

R150,TYPE D:REFER ILLUST.

main33030-0K373i201404-201510

R150,TYPE D:REFER ILLUST.

main33030-0K380i201111-201308

R150,TYPE C:REFER ILLUST.

main33030-0K382i201306-201404

R150,COLOMBIA SPEC,TYPE D:REFER ILLUST.; R150,ECUADOR SPEC,TYPE D:REFER ILLUST.; R150,TYPE D:REFER ILLUST.

main33030-0K383i201404-201510

R150,COLOMBIA SPEC,TYPE D:REFER ILLUST.; R150,TYPE D:REFER ILLUST.

main33030-0K390i201107-201308

R150F,TYPE C:REFER ILLUST.

main33030-0K392i201306-201404

R150F,TYPE D:REFER ILLUST.

main33030-0K393i201404-201703

R150F,TYPE D:REFER ILLUST.

main33030-0K400i201107-201306

R150F,TYPE D:REFER ILLUST.

main33030-0K402i201306-201404

R150F,TYPE D:REFER ILLUST.

main33030-0K403i201404-201510

R150F,TYPE D:REFER ILLUST.

main33030-0K462i201308-201401

R150,TYPE C:REFER ILLUST.

main33030-0K463i201401-201510

R150,TYPE C:REFER ILLUST.

main33030-0K472i201308-201401

R150,COLOMBIA SPEC,TYPE C:REFER ILLUST.; R150,ECUADOR SPEC,TYPE C:REFER ILLUST.; R150,TYPE C:REFER ILLUST.

main33030-0K473i201401-201510

R150,COLOMBIA SPEC,TYPE C:REFER ILLUST.; R150,TYPE C:REFER ILLUST.

main33030-0K482i201308-201401

R150F,TYPE C:REFER ILLUST.

main33030-0K483i201401-201703

R150F,TYPE C:REFER ILLUST.

main33030-0K492i201308-201401

R150F,TYPE C:REFER ILLUST.

main33030-0K493i201401-201510

R150F,TYPE C:REFER ILLUST.

main33030-0K560i201107-201308

R150F,TYPE B:REFER ILLUST.

main33030-0K580i201107-201308

R150F,TYPE B:REFER ILLUST.

main33030-0K690i201107-201308

R151,TYPE C:REFER ILLUST.

main33030-0K692i201308-201405

R151,TYPE C:REFER ILLUST.

main33030-0K693i201405-201611

R151,TYPE C:REFER ILLUST.

main33030-0K700i201108-201308

R151,TYPE C:REFER ILLUST.

main33030-0K702i201308-201405

R151,TYPE C:REFER ILLUST.

main33030-0K703i201405-201608

R151,TYPE C:REFER ILLUST.

main33030-0K710i201107-201308

R151F,TYPE C:REFER ILLUST.

main33030-0K712i201308-201405

R151F,TYPE C:REFER ILLUST.

main33030-0K713i201405-201608

R151F,TYPE C:REFER ILLUST.

main33030-0K760i201107-201407

R151,TYPE B:REFER ILLUST.

main33030-0K763i201407-201408

R151,TYPE B:REFER ILLUST.

main33030-0K764i201409-201504

R151,TYPE B:REFER ILLUST.

main33030-0K780i201107-201308

R151F,TYPE B:REFER ILLUST.

main33030-0K830i201107-201306

R151,TYPE D:REFER ILLUST.

main33030-0K832i201306-201404

R151,TYPE D:REFER ILLUST.

main33030-0K833i201404-201611

R151,TYPE D:REFER ILLUST.

main33030-0K840i201108-201306

R151,TYPE D:REFER ILLUST.

main33030-0K842i201306-201404

R151,TYPE D:REFER ILLUST.

main33030-0K843i201404-201608

R151,TYPE D:REFER ILLUST.

main33030-0K850i201107-201306

R151F,TYPE D:REFER ILLUST.

main33030-0K852i201306-201404

R151F,TYPE D:REFER ILLUST.

main33030-0K853i201404-201608

R151F,TYPE D:REFER ILLUST.

main33030-0KA30i201210-201308

R150,TYPE C:REFER ILLUST.

main33030-0KA31i201308-201401

R150,TYPE C:REFER ILLUST.

main33030-0KA32i201401-201510

R150,TYPE C:REFER ILLUST.

main33030-71231i201108-201512

G58F

main33030-71260i201107-201208

R150F,TYPE A:REFER ILLUST.

main33030-0K550supersedes 33030-0K540i201107-201308

R150,COLOMBIA SPEC,TYPE B:REFER ILLUST.; R150,ECUADOR SPEC,TYPE B:REFER ILLUST.

2 parts on this diagram · 3 diagrams in section
