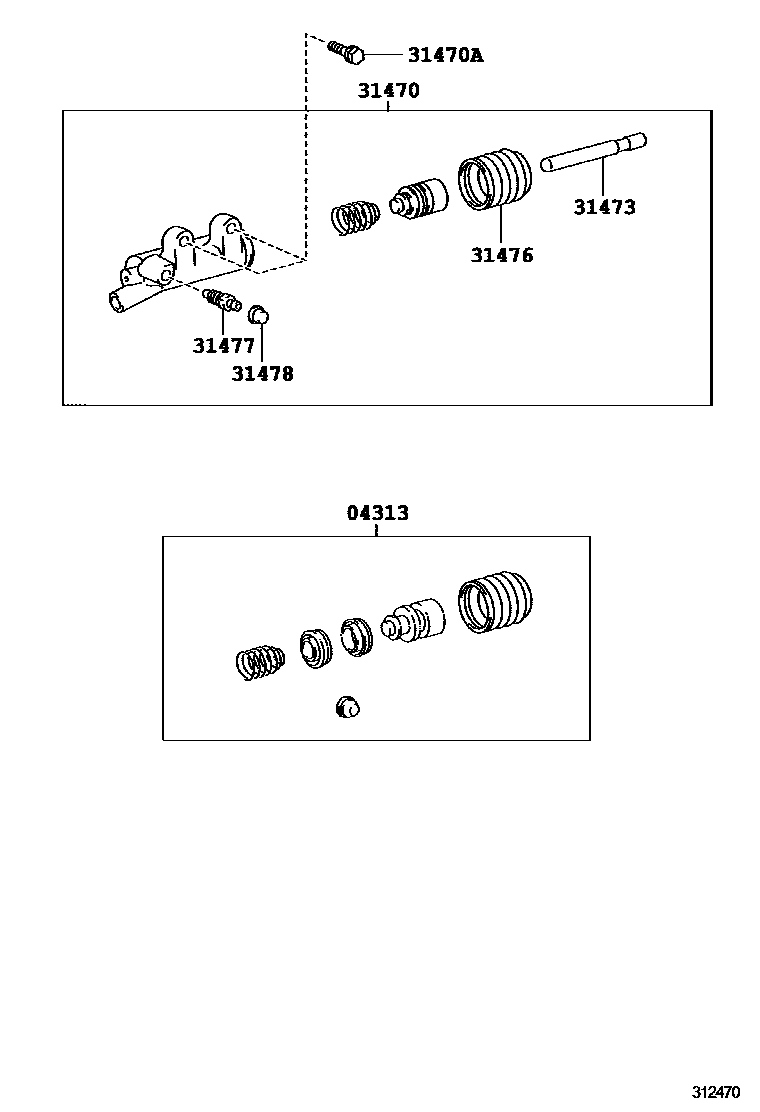

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0K010iTGN51,61..5F201107-201703

main04313-0K020iGGN50..5F201107-201510

main04313-0K040iKUN60..IDSUV..5F..GEN;KUN60..SUVW..5F..(GEN,IDN,PHL);KUN51..(SUVW,THSUV)..5F..(CO,GEN,LA,TH)201107-201510

main04313-0K050iLAN50201108-201512

main04313-0K070iKUN51..IDSUV..5F..LA;KUN51,61..5F..(GEN,SA);KUN60..5F..(IDN,PHL,SA,TH,VN)201411-201611

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0K010iLAN50201108-201311

main31470-0K030iKUN60..IDSUV..5F..GEN;KUN60..SUVW..5F..(GEN,IDN,PHL);KUN51..(SUVW,THSUV)..5F..(CO,GEN,LA,TH)201107-201510

main31470-0K051iTGN51,61..5F201107-201703

main31470-0K060iGGN50..5F201107-201510

main31470-0K150iLAN50201312-201512

main31470-0K160iKUN51..IDSUV..5F..LA;KUN51,61..5F..(GEN,SA);KUN60..5F..(IDN,PHL,SA,TH,VN)201411-201611

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0221iKUN60..VN201107-201703

*8-1.25PX25-20.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-04010iKUN60..5F..(SA,TH,VN);KUN51,61..5F..(IND,SA);KUN51..(IDSUV,SASUV)..5F;KUN60..IDSUV..5F..(IDN,PHL)201107-201510

main31473-0D020iKUN51,6#..5F..IND201411-201611

main31473-0K010iLAN50,TGN51,61..5F201107-201703

main31473-0K020iGGN50..5F201107-201510

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-04010iKUN60..VN201107-201703

main31476-0K010iGGN50..5F201107-201510

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKUN51,6#..5F..IND201107-201703

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKUN51,6#..5F..IND201107-201703

7 parts on this diagram · 4 diagrams in section
