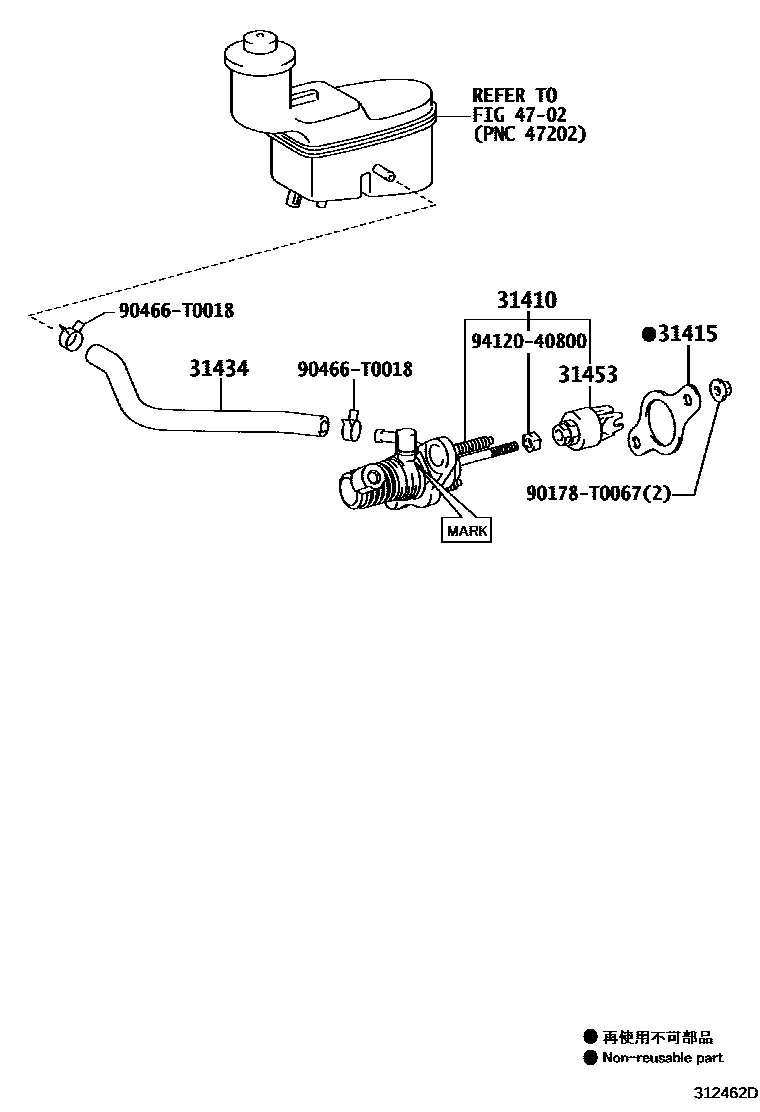

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K013iKUN60..VN201107-201303

main31420-0K021iGGN50..5F201107-201510

main31420-0K030iKUN60..VN201303-201306

main31420-0K050iKUN51..IDSUV..5F..LA;KUN51,61..5F..(GEN,IND,SA);KUN60..5F..(IDN,PHL,SA,TH,VN)201307-201411

MARK = 5/8

main31420-0K080iKUN51..IDSUV..5F..LA;KUN51,61..5F..(GEN,IND,SA);KUN60..5F..(IDN,IND,PHL,SA,TH,VN)201411-201611

MARK = 3/4

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iKUN51,6#..5F..IND201107-201608

31434TUBE, CLUTCH RESERVOIR

main31434-0K030iKUN60..IDSUV..5F..IDN201107-201208

main31434-71011iKUN60,LAN50..RHD..SR..(GEN,SA)201107-201510

main31434-71020iKUN60..5F..PHL201107-201208

main31434-71030iKUN60..5F..IDN201208-201608

main31434-71040iGGN50,KUN51..LHD..5F201107-201611

main31434-71070iKUN51..5F..IND201201-201608

main31434-71080iKUN51..LHD..(IDSUV,SUVW,THSUV)..5F..(GEN,LA)201107-201510

VSC-WITH

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-0K010iKUN51,61..5F..(GEN,IND,SA);KUN60..5F..(IDN,PHL,SA,TH,VN)201107-201307

main31453-35010iKUN51..IDSUV..5F..LA;KUN51,61..5F..(GEN,IND,SA);KUN60..5F..(IDN,PHL,SA,TH,VN)201307-201311

main31453-71010iKUN51..IDSUV..5F..LA;KUN51,61..5F..(GEN,IND,SA);KUN60..5F..(IDN,IND,PHL,SA,TH,VN)201312-201611

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90178T0067

main90178-T0067

90466T0018

main90466-T0018

9412040800

main94120-40800

8 parts on this diagram · 3 diagrams in section
