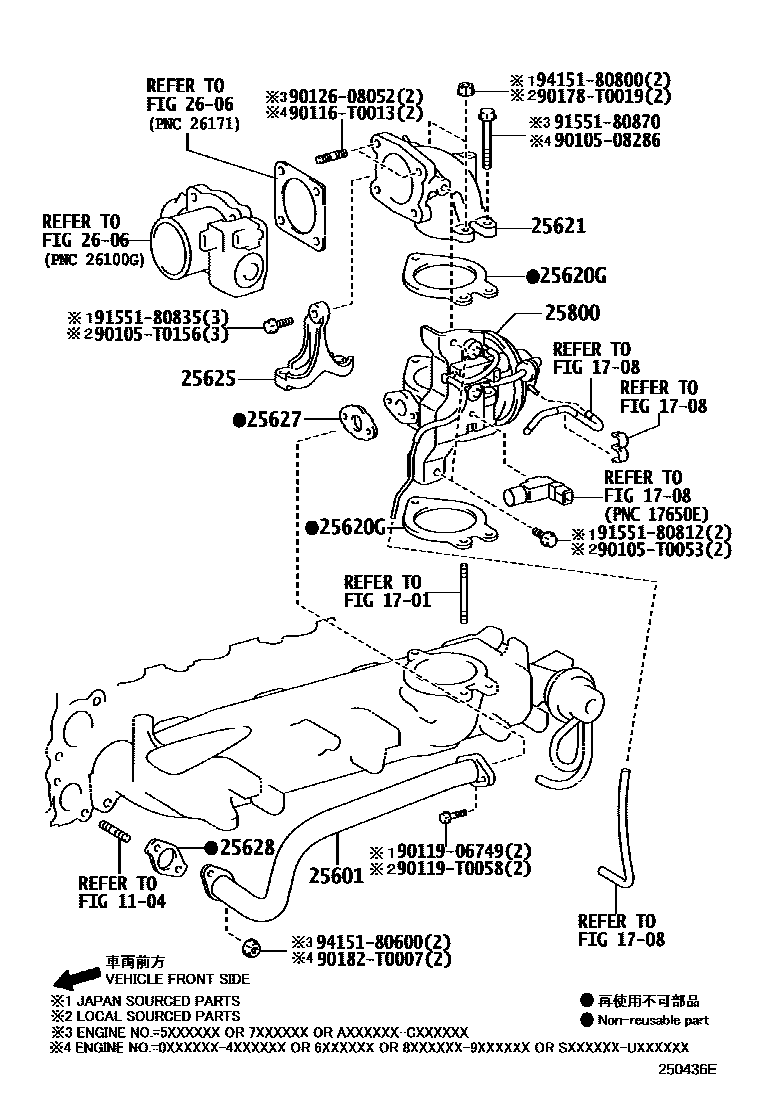

EXHAUST GAS RECIRCULATION SYSTEM
1104CYLINDER HEAD
1701MANIFOLD
1708VACUUM PIPING
25601PIPE SUB-ASSY, EGR, NO.1
*130
*130
main25601-0L021i1KDFTV..KUN51..IDSUV..5F..LA; 1KDFTV..KUN51..SUVW..(5F,5FC)..DCR..(CO,LA)201508-201510
COLOMBIA SPEC,*130
main25601-30070i2KDFTV..KUN60..PHL,VN;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(IDN,MA,PHL,SA,TH)201107-201607
*360
*130,(J)
25620GGASKET, DIESEL THROTTLE
*130; *130,NO.1
*130,NO.2
*360
25621CONNECTOR, INTAKE AIR(FOR GASKET)
main17861-0L010supersedes 17861-0L030i2KDFTV..KUN60..GEN;1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(PHL,SA,TH)201112-201512
*130,(L)
*130
main17861-30070i1KDFTV..KUN51..4FC..LA; 1KDFTV..KUN51..DCR..LA; 2KDFTV..KUN50,60..IDN,MA,PHL;1KDFTV..KUN51..IDSUV,SASUV,THSUV;1KDFTV..KUN51,61..SUVW..(CO,PHL,SA,TH)201112-201206
*130,(J); BRAZIL SPEC,*130,(J); EXPORT FROM ARGENTINA,*130,(J); HIGH ALTITUDE COUNTRY SPEC,*130,(J); PERU SPEC,*130,(J)
*360
25625BRACKET, EGR VALVE
*130
main26127-0L020supersedes 26127-30030i2KDFTV..KUN60..SUVW..4FC..PHL;2KDFTV..KUN60..IDSUV..(IDN,PHL);2KDFTV..KUN60..SUVW..5F..(IDN,PHL)201208-201611
*130
*130
main26127-30010i1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(PHL,SA,TH)201107-201512
*360
*360
*360
25627GASKET, EGR VALVE
*130; *130,NO.1
*360,NO.1
25628GASKET, EGR INLET
main25628-0L010supersedes 25628-30031i2KDFTV..KUN60..5F..SA;1KDFTV..KUN51..SUVW..4FC..LA201210-201611
*130
*130
main25628-30020i2KDFTV..KUN60..PHL,VN;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(IDN,MA,PHL,SA,TH)201107-201607
*360
main25628-30031i1KDFTV..KUN61..IND;1KDFTV..KUN61..5FC..TH;1KDFTV..KUN51..RHD..5FC;1KDFTV..KUN51..IDSUV..5FC;1KDFTV,2KDFTV..KUN51,60..5F..IND; 2KDFTV..KUN60..5FC;1KDFTV..KUN51..5FC..CO;1KDFTV..KUN51..SUVW..(5F,5FC)..LA201204-201608
*130
25800VALVE ASSY, ELECTRIC EGR CONTROL
main25800-0L010supersedes 25800-0L080i1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(PHL,SA,TH); 1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(PHL,SA,TH)201107-201512
*130; *360
main25800-0L020i2KDFTV..KUN60..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN; 2KDFTV..KUN60..GEN201107-201510
*130; *360
main25800-0L080supersedes 25800-30120i2KDFTV..KUN60..5F..IND;1KDFTV..KUN51,61..(5F,5FC)..IND201107-201608
*130
*360
2606VENTURI
9010508286
main90105-08286
90105T0053
main90105-T0053
90105T0156
main90105-T0156
90116T0013
main90116-T0013
9011906749
main90119-06749
90119T0058
main90119-T0058
9012608052
main90126-08052
90178T0019
main90178-T0019
90182T0007
main90182-T0007
9155180812
main91551-80812
9155180835
main91551-80835
9155180870
main91551-80870
9415180600
main94151-80600
9415180800
main94151-80800
25 parts on this diagram · 5 diagrams in section
