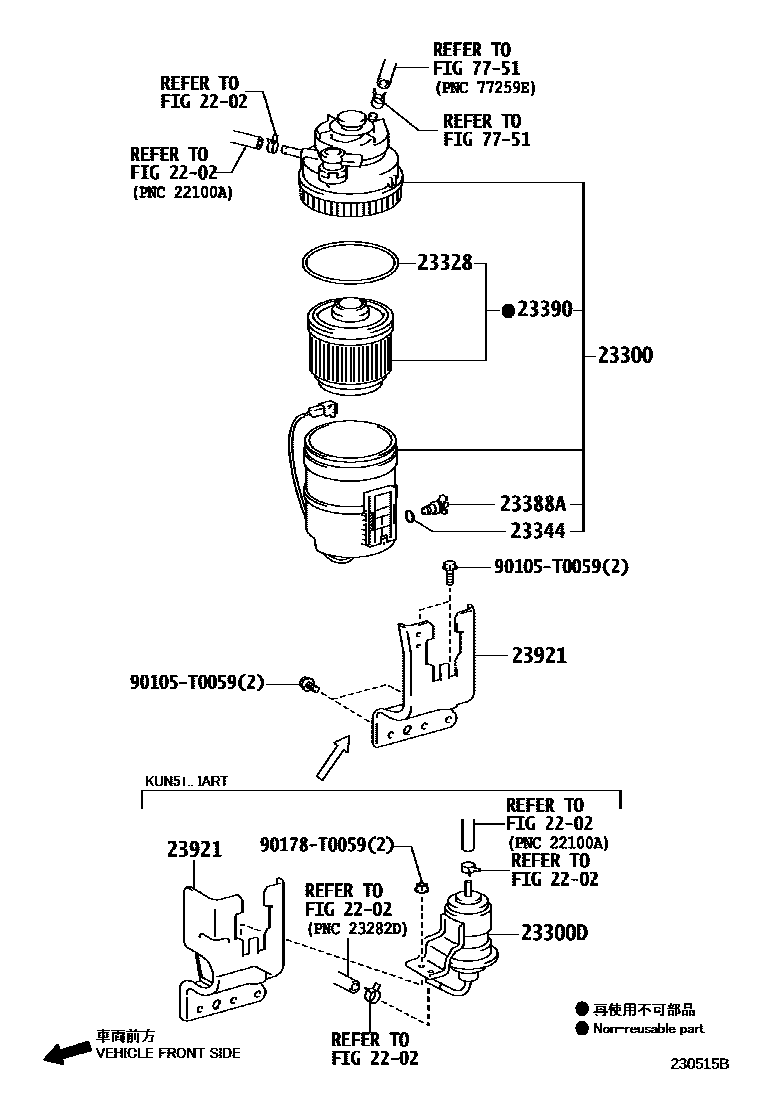

FUEL FILTER

0001 1 0002 1

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23300FILTER ASSY, FUEL

main23300-0L041supersedes 23300-0L060i1KDFTV..KUN51..IART;1KDFTV,2KDFTV..KUN5#,6#..CO,GEN,IDN,IND,MA,PHL,SA,TH,VN201107-201205

main23300-0L042supersedes 23300-0L061i1KDFTV,2KDFTV..KUN5#,6#..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH,VN)201206-201503

MARK=23300-0L042

main23300-0L050i1KDFTV..KUN51..IART201210-201510

main23300-0L061i1KDFTV..KUN51..SUVW..(5F,5FC)..DCR..LA201206-201404

main23300-0L120i1KDFTV..KUN51..SUVW..(5F,5FC)..DCR..LA201404-201510

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-30450i1KDFTV..KUN51..IART201204-201510

23328GASKET(FOR FUEL FILTER)

main23344-0L010i1KDFTV..KUN61..4FC;1KDFTV..KUN51..RHD..(GEN,SA,TH);1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN50,60..GEN,IDN,MA,PHL,SA,TH,VN201107-201611

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i1KDFTV..KUN61..4FC;1KDFTV..KUN51..RHD..(GEN,SA,TH);1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN50,60..GEN,IDN,MA,PHL,SA,TH,VN201107-201611

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i1KDFTV,2KDFTV..KUN51,6#..(5F,5FC)..IND201107-201608

23390ELEMENT ASSY, FUEL FILTER

main23390-0L041i1KDFTV..KUN51..SUVW..(5F,5FC)..DCR..LA201107-201404

main23390-0L050i1KDFTV..KUN51..IART201210-201510

23921SUPPORT, FUEL FILTER

main23921-0L010i2KDFTV..KUN60..SUVW..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(SUVW,THSUV)..(GEN,MA,PHL,TH)201107-201611

main23921-0L020i1KDFTV,2KDFTV..KUN5#,60..IDSUV201107-201510

main23921-0L030i1KDFTV..KUN51,61..IND;2KDFTV..KUN60..5F..IND201201-201608

main23921-0L040i1KDFTV..KUN51..SASUV..4FC;1KDFTV,2KDFTV..KUN51,6#..SA; 5LE..LAN50201108-201512

main23921-0L050i1KDFTV..KUN51..SUVW..DCR..(CO,LA)201110-201510

main23921-0L090i2KDFTV..KUN60..5FC201208-201608

main23921-30130i1KDFTV..KUN51..IART201204-201510

7751FUEL TANK & TUBE

→ Go to FIG 77-51

90105T0059

main90105-T0059

90178T0059

main90178-T0059

11 parts on this diagram · 2 diagrams in section
