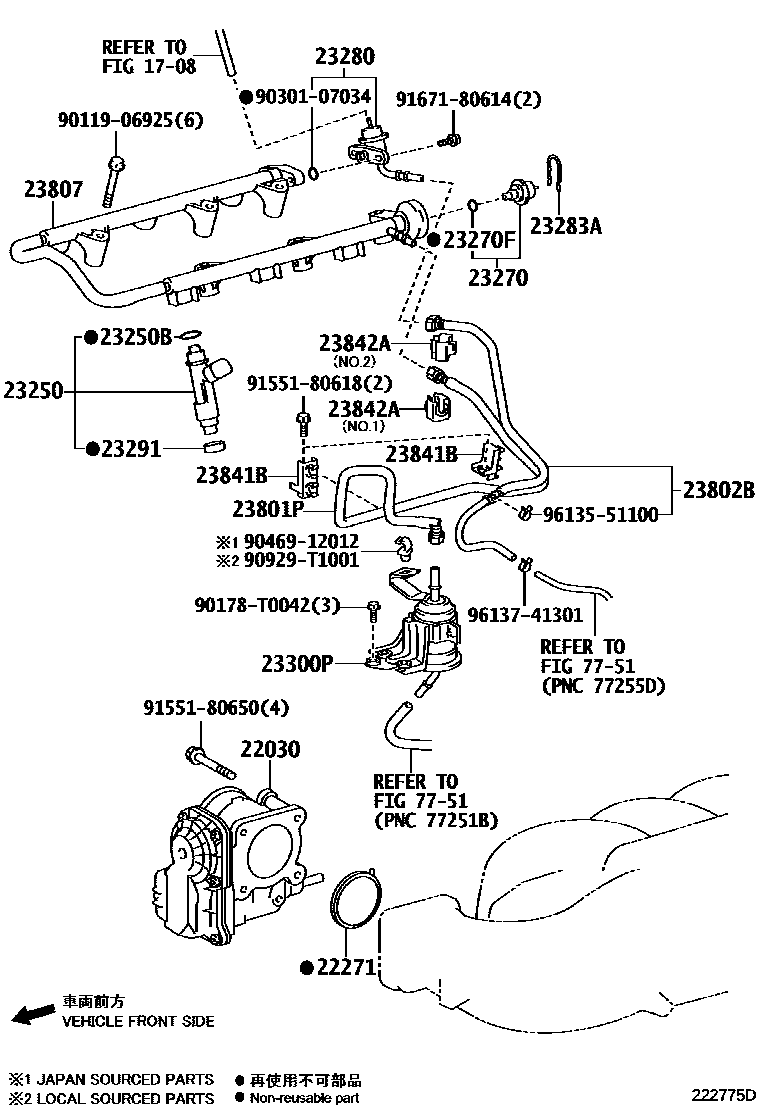

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1708VACUUM PIPING

→ Go to FIG 17-08

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C020i2TRFE..TGN51,61..CO,GCC,GEN,IDN,KZS,LA,MA,PHL,SA,TH201107-201703

main22030-31010i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

22271GASKET, THROTTLE BODY

main22271-0C020i2TRFE..TGN51,61201107-201110

main22271-0C021i2TRFE..TGN51..EPT201110-201612

main22271-31012i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

main22271-75060i2TRFE..TGN61..HTWCF201110-201510

23250INJECTOR ASSY, FUEL

main23209-09045×4i2TRFE..TGN51..EPT201107-201612

main23209-09180×4i2TRFE..TGN61..HTWCF201110-201510

main23209-09190×4i2TRFE..TGN51,61..IDSUV..GCC;2TRFE..TGN51,61..SUVW..(GCC,GEN,IDN,PHL)201107-201510

main23209-39075×6i1GRFE..GGN50..EPT201107-201612

main23209-09055×4i2TRFE..TGN51..5F..SA201108-201310

ENGINE-2TR-FE LEADED

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

main90301-07037×4i2TRFE..TGN51,61201107-201506

main90301-T0051×4i2TRFE..TGN51..EPT201506-201612

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31080i1GRFE..GGN50,60201107-201201

main23270-31140i1GRFE..GGN50..EPT201201-201612

main23270-75010i2TRFE..TGN51,61..HTWC..(CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,VN)201107-201502

main23270-75040i2TRFE..TGN61..HTWCF201110-201510

main23270-75050i2TRFE..TGN51..EPT201502-201612

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i1GRFE..GGN50..EPT201107-201612

main90301-07037i2TRFE..TGN51..EPT201107-201612

23280REGULATOR ASSY, FUEL PRESSURE

main23280-31010i1GRFE..GGN50..5F201107-201208

main23280-31040i1GRFE..GGN50,60..5FC201107-201201

main23280-31041i1GRFE..GGN50..EPT201409-201612

main23280-75040i2TRFE..TGN51,61..HTWC201107-201703

main23280-75090i2TRFE..TGN61..HTWCF201110-201510

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i1GRFE..GGN50..EPT201107-201612

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010×4i2TRFE..TGN51,61201107-201703

main23291-23010×6i1GRFE..GGN50..EPT201107-201612

23300PFILTER, FUEL(FOR EFI)

main23300-0D100i2TRFE..TGN61..HTWCF201110-201510

main23300-31120i1GRFE..GGN50..EPT201107-201612

main23300-75140i2TRFE..TGN51,61..HTWC..(CO,GCC,GEN,KZS,LA,MA,PHL,SA,TH)201107-201703

main23300-75160i2TRFE..TGN51,61..IDN201107-201510

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31110i1GRFE..GGN50..EPT201107-201612

main23801-75120i2TRFE..TGN61..HTWCF201110-201510

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-31050i1GRFE..GGN50..EPT201107-201612

main23802-31130i1GRFE..GGN50..5F..CO201111-201510

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-0C010i2TRFE..TGN51,61..HTWC..(CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,VN)201112-201502

(L)

main23807-0C012i2TRFE..TGN51,61..HTWC..(CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,TH,VN)201502-201703

main23807-0C020i2TRFE..TGN51..SA;2TRFE..TGN61..HTWCF201108-201502

main23807-31010i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

main23807-75050i2TRFE..TGN51,61..HTWC..(CO,EPT,GCC,IDN,LA,MA,PHL,TH,VN)201112-201206

(J)

main23807-75082i2TRFE..TGN51..SA;2TRFE..TGN61..HTWCF201502-201512

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31030×2i1GRFE..GGN50..EPT201107-201612

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i1GRFE..GGN50..EPT201107-201612

NO.1

main23842-31030i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

NO.2

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011906925

main90119-06925

90178T0042

main90178-T0042

9030107034

main90301-07034

9046912012

main90469-12012

90929T1001

main90929-T1001

9155180618

main91551-80618

9155180650

main91551-80650

9167180614

main91671-80614

9613551100

main96135-51100

9613741301

main96137-41301

27 parts on this diagram · 4 diagrams in section
