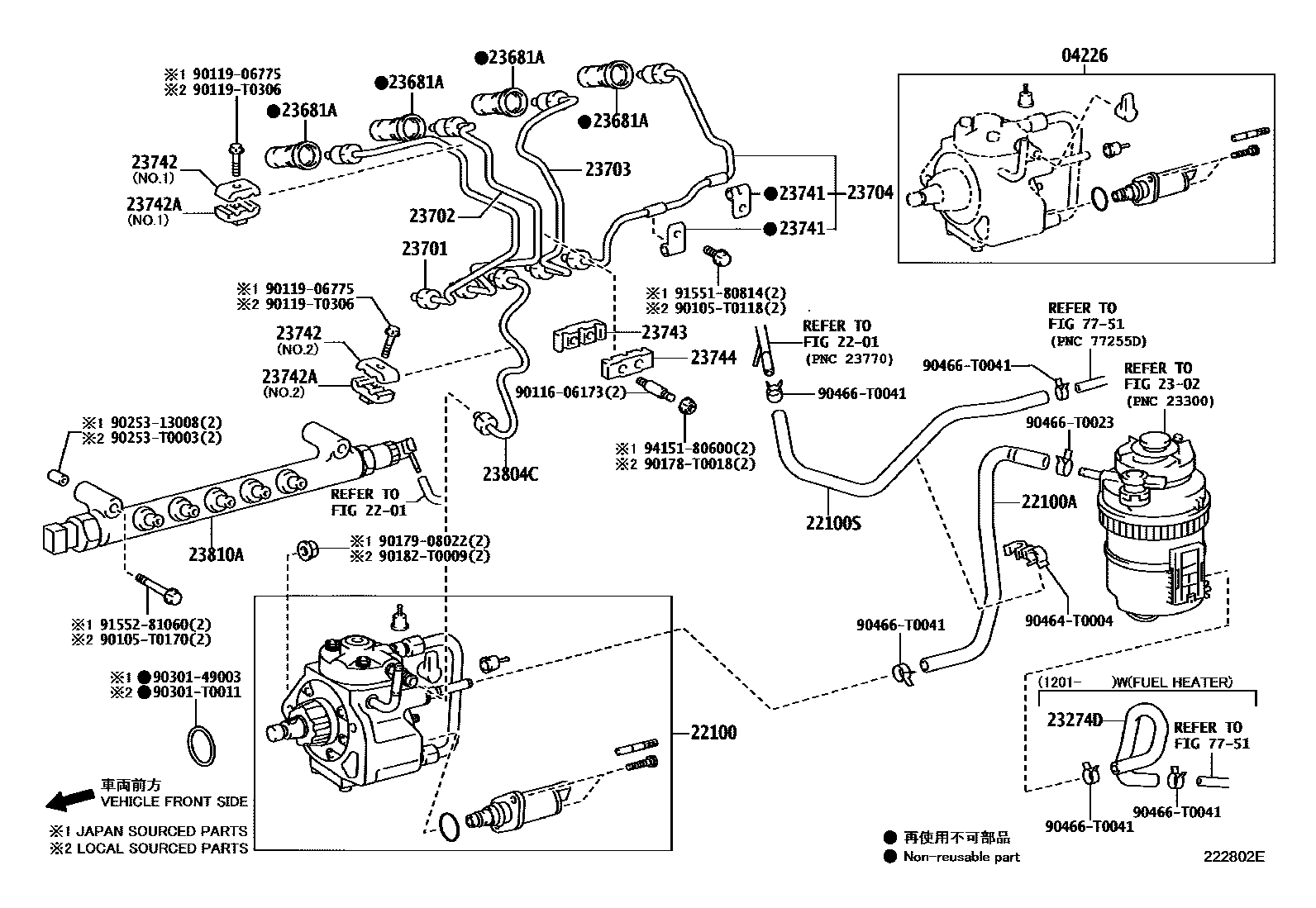

INJECTION PUMP ASSEMBLY

0001 1EXCEPT EURO 4 REGULATION 0003 1 0007 1 0008 1 0009 1

04226VALVE KIT, SUCTION CONTROL

main04226-0L020i1KDFTV..KUN51..IART201204-201510

main04226-0L020i2KDFTV..KUN60..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)201107-201512

*360

main04226-0L020i2KDFTV..KUN60..5F..IND;1KDFTV..KUN51,61..(5F,5FC)..IND201107-201611

*130

main04226-30020i2KDFTV..KUN50..MA201108-201607

*360

main04226-30020i2KDFTV..KUN60..5FC201208-201608

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0L060i1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL201107-201611

*130

main22100-0L060i2KDFTV..KUN60..IDN,PHL201107-201512

*360

main22100-0L100i1KDFTV..KUN51..IART201204-201303

sub22100-0L101

main22100-0L101i1KDFTV..KUN51..IART201303-201510

main22100-30090i2KDFTV..KUN50..IDN;2KDFTV..KUN60..SA,VN;2KDFTV..KUN60..SUVW..4FC..IDN201108-201607

*360

main22100-30160i2KDFTV..KUN60..5FC201208-201410

sub22100-30161

main22100-30161i2KDFTV..KUN60..5FC201411-201608

main22100-5D180i5LE..LAN50201108-201512

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-0L050i1KDFTV..KUN51..IART201204-201510

main23271-0L060i1KDFTV..KUN51..LHD..SASUV201107-201611

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-0L070i1KDFTV..KUN51,61..IND;2KDFTV..KUN60..5F..IND201301-201608

main23273-0L150i1KDFTV..KUN51..LHD..SASUV201303-201510

PERU SPEC,(L)

main23273-0L150i1KDFTV..KUN51..SUVW..4FC..LA201303-201611

(L)

main23273-0L160i1KDFTV..KUN51..SUVW..4FC..LA201303-201510

(L)

main23273-0L180i1KDFTV,2KDFTV..KUN51,60..5FC..(HDCR,IART)201303-201608

(L)

main23273-30170i1KDFTV..KUN51..DCR..LA201201-201303

main23273-30170i1KDFTV..KUN51..SUVW..(5F,5FC)..DCR..LA201303-201510

(J)

main23273-30250i1KDFTV..KUN51..SUVW..5F..LA201303-201611

(J)

main23273-30250i1KDFTV..KUN51..SUVW..5F..LA201303-201510

PERU SPEC,(J)

main23273-30250i1KDFTV..KUN61..4FC;2KDFTV..KUN60..4FC,5F;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#..CO,GEN,MA,PHL,SA,TH201107-201303

main23273-30350i1KDFTV,2KDFTV..KUN51,60..5FC..(HDCR,IART)201204-201303

main23273-30350i1KDFTV,2KDFTV..KUN51,60..5FC..(HDCR,IART)201303-201608

(J)

2302

23274DHOSE, FUEL, NO.3

main23274-0L090i1KDFTV..KUN51..SUVW..(5F,5FC)..DCR..LA201303-201510

(L)

main23274-30040i1KDFTV..KUN51..SUVW..(5F,5FC)..DCR..LA201303-201510

(J)

main23274-30040i1KDFTV..KUN51..DCR..LA201201-201303

23681ASEAL, NOZZLE HOLDER

main23681-0L010i1KDFTV..KUN51..IART201204-201510

main23681-0L010i2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL201107-201611

*130

main23681-30010i2KDFTV..KUN60..5F..TH201107-201607

*360

main23681-30010i2KDFTV..KUN60..5FC201208-201608

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-0L010i1KDFTV..KUN51..5F..CO201107-201512

*130

main23701-0L020i2KDFTV..KUN60..SUVW..4FC..PHL;2KDFTV..KUN60..IDSUV..(IDN,PHL);2KDFTV..KUN60..SUVW..5F..(IDN,PHL)201107-201611

*130

main23701-30050i2KDFTV..KUN60..IDN,PHL201107-201512

*360

main23701-30060i2KDFTV..KUN50..MA201108-201607

*360

main23701-30100i1KDFTV,2KDFTV..KUN51,60..5FC..(HDCR,IART)201204-201512

sub23701-30101

main23701-30101i2KDFTV..KUN60..5FC201601-201608

main23701-54140i5LE..LAN50201108-201512

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-0L010i2KDFTV..KUN50201107-201512

*130

main23702-0L020i2KDFTV..KUN60..5F..(TH,VN);1KDFTV..KUN51..SUVW..5F..LA;2KDFTV..KUN60..RHD..SUVW..4FC;1KDFTV..KUN51,61..5FC..DCR..(CO,LA,TH);1KDFTV,2KDFTV..KUN50,61..4FC..(IDN,IND)201107-201611

*130

main23702-30050i2KDFTV..KUN50201107-201512

*360

main23702-30060i2KDFTV..KUN60..SUVW..4FC..PHL;2KDFTV..KUN60..IDSUV..(IDN,PHL);2KDFTV..KUN60..SUVW..5F..(IDN,PHL,TH)201108-201607

*360

main23702-30100i1KDFTV,2KDFTV..KUN51,60..5FC..(HDCR,IART)201204-201512

sub23702-30101

main23702-30101i2KDFTV..KUN60..5FC201601-201608

main23702-54140i5LE..LAN50201108-201512

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-0L010i2KDFTV..KUN50201107-201512

*130

main23703-0L020i2KDFTV..KUN60..SUVW..4FC..PHL;2KDFTV..KUN60..IDSUV..(IDN,PHL);2KDFTV..KUN60..SUVW..5F..(IDN,PHL)201107-201611

*130

main23703-30050i2KDFTV..KUN50201107-201512

*360

main23703-30060i2KDFTV..KUN50..MA201108-201607

*360

main23703-30100i1KDFTV,2KDFTV..KUN51,60..5FC..(HDCR,IART)201204-201512

sub23703-30101

main23703-30101i2KDFTV..KUN60..5FC201601-201608

main23703-54100i5LE..LAN50201108-201512

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-09015i2KDFTV..KUN50201107-201512

*130

main23704-09040i2KDFTV..KUN60..5F..(TH,VN);1KDFTV..KUN51..SUVW..5F..LA;2KDFTV..KUN60..RHD..SUVW..4FC;1KDFTV..KUN51,61..5FC..DCR..(CO,LA,TH);1KDFTV,2KDFTV..KUN50,61..4FC..(IDN,IND)201107-201611

*130

main23704-30090i1KDFTV,2KDFTV..KUN51,60..5FC..(HDCR,IART)201204-201512

sub23704-30091

main23704-30091i2KDFTV..KUN60..5FC201601-201608

main23704-39055i2KDFTV..KUN50..IDN;2KDFTV..KUN60..SA,VN;2KDFTV..KUN60..SUVW..4FC..IDN201108-201607

*360

main23704-39075i2KDFTV..KUN50201107-201512

*360

main23704-54100i5LE..LAN50201108-201512

23741CLAMP, INJECTION PIPE, NO.1

main23741-0L020i1KDFTV..KUN51..4FC..LA201107-201611

*130

sub23741-30020

main23741-30010i2KDFTV..KUN60..SUVW..4FC..PHL;2KDFTV..KUN60..IDSUV..(IDN,PHL);2KDFTV..KUN60..SUVW..5F..(IDN,PHL,TH)201108-201607

*360

main23741-30020i2KDFTV..KUN60..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)201107-201512

*360

main23741-54030i5LE..LAN50201108-201512

23742CLAMP, INJECTION PIPE, NO.2

main23742-0L011i1KDFTV..KUN51,61..5FC..TH;2KDFTV..KUN60..5F..(TH,VN);2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..DCR..(IND,LA)201107-201210

*130,NO.1

sub23742-0L090

main23742-0L011i1KDFTV..KUN51..IART201204-201210

sub23742-0L090

main23742-0L050i2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..SUVW..5F..GEN;1KDFTV..KUN51..IDSUV,SASUV,THSUV;1KDFTV,2KDFTV..KUN5#,61..SUVW..(DCR,HDCR)..(CO,IND,LA,MA,PHL,SA,TH)201107-201210

*130,NO.2

main23742-0L090i1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..IDSUV..5F..LA;1KDFTV..KUN51..4FC..(CO,LA,PHL,SA);1KDFTV,2KDFTV..KUN6#..SR..(GEN,SA);1KDFTV..KUN51..(IDSUV,SUVW)..5F..(GEN,201210-201611

*130,NO.1

main23742-0L090i1KDFTV..KUN51..SUVW..5F..LA201210-201510

HIGH ALTITUDE COUNTRY SPEC,*130,NO.1

main23742-0L090i1KDFTV..KUN51..SUVW..5F..LA201210-201510

PERU SPEC,*130,NO.1

main23742-0L090i1KDFTV..KUN51..SUVW..5F..LA201210-201510

EXPORT FROM ARGENTINA,*130,NO.1

main23742-0L110i1KDFTV..KUN61..4FC;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,SA,TH,VN);1KDFTV,2K201210-201611

*130,NO.2

main23742-27010i2KDFTV..KUN50..MA201107-201607

*360,NO.1

main23742-27010i2KDFTV..KUN60..5FC201208-201608

main23742-30010i2KDFTV..KUN60..5F..TH201107-201607

*360,NO.2

23742ACLAMP, INJECTION PIPE, NO.3

main23742-0L021i1KDFTV..KUN51..IART201204-201210

main23742-0L021i1KDFTV..KUN51,61..5FC..TH;2KDFTV..KUN60..5F..(TH,VN);2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..DCR..(IND,LA)201107-201210

*130,NO.1

main23742-0L060i2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..SUVW..5F..GEN;1KDFTV..KUN51..IDSUV,SASUV,THSUV;1KDFTV,2KDFTV..KUN5#,61..SUVW..(DCR,HDCR)..(CO,IND,LA,MA,PHL,SA,TH)201107-201210

*130,NO.2

main23742-0L100i1KDFTV..KUN51..IART201210-201510

HIGH ALTITUDE COUNTRY SPEC,*130,NO.1

main23742-0L100i1KDFTV..KUN51..5F..CO201210-201611

*130,NO.1

main23742-0L100i1KDFTV..KUN51..SUVW..5F..LA201210-201510

PERU SPEC,*130,NO.1

main23742-0L100i1KDFTV..KUN51..SUVW..5F..LA201210-201510

EXPORT FROM ARGENTINA,*130,NO.1

main23742-0L120i2KDFTV..KUN60..5F..IND;1KDFTV..KUN51,61..(5F,5FC)..IND201210-201611

*130,NO.2

main23742-30020i2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..K201107-201607

*360,NO.2

main23742-30030i2KDFTV..KUN60..5FC201208-201608

NO.1

main23742-58020i2KDFTV..KUN60..IDN,PHL201107-201607

*360,NO.1

main23742-58020i2KDFTV..KUN60..5FC201208-201608

NO.2

23743CLAMP, INJECTION PIPE, NO.3

main23743-0L012i2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..SUVW..5F..GEN;1KDFTV..KUN51..IDSUV,SASUV,THSUV;1KDFTV,2KDFTV..KUN5#,61..SUVW..(DCR,HDCR)..(CO,IND,LA,MA,PHL,SA,TH)201107-201210

*130

sub23743-0L040

main23743-0L012i1KDFTV..KUN51..IART201204-201210

sub23743-0L040

main23743-0L040i1KDFTV..KUN51..IART201210-201510

main23743-0L040i2KDFTV..KUN60..5F..IND;1KDFTV..KUN51,61..(5F,5FC)..IND201210-201611

*130

main23743-30011i2KDFTV..KUN60..5FC201208-201608

main23743-30011i2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..K201107-201607

*360

23744CLAMP, INJECTION PIPE, NO.4

main23743-0L012i1KDFTV..KUN51..IART201204-201210

sub23743-0L040

main23743-0L012i2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..SUVW..5F..GEN;1KDFTV..KUN51..IDSUV,SASUV,THSUV;1KDFTV,2KDFTV..KUN5#,61..SUVW..(DCR,HDCR)..(CO,IND,LA,MA,PHL,SA,TH)201107-201210

*130

sub23743-0L040

main23743-0L040i1KDFTV..KUN61..4FC;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,SA,TH,VN);1KDFTV,2K201210-201611

*130

main23743-0L040i1KDFTV..KUN51..IART201210-201510

main23743-30011i2KDFTV..KUN60..5FC201208-201608

main23743-30011i2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..K201107-201607

*360

23804CPIPE SUB-ASSY, FUEL INLET

main23804-0L010i1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL201107-201611

*130

main23804-30050i2KDFTV..KUN60..5F..TH201107-201607

*360

main23804-30100i1KDFTV,2KDFTV..KUN51,60..5FC..(HDCR,IART)201204-201512

sub23804-30101

main23804-30101i2KDFTV..KUN60..5FC201601-201608

23810ARAIL ASSY, COMMON

main23810-0L030i1KDFTV..KUN51..4FC..LA201110-201210

BRAZIL SPEC,*130

main23810-0L030i1KDFTV..KUN51..4FC..LA201110-201210

EXPORT FROM ARGENTINA,*130

main23810-0L030i1KDFTV..KUN51..4FC..LA201110-201210

HIGH ALTITUDE COUNTRY SPEC,*130

main23810-0L030i1KDFTV..KUN51..4FC..LA201110-201210

PERU SPEC,*130

main23810-0L030i1KDFTV..KUN51..4FC..CO;2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5F)..(GE201107-201611

*130

main23810-0L030i1KDFTV..KUN51..5F..CO201110-201608

main23810-0L040i1KDFTV..KUN51..IART201204-201510

main23810-30100i2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..K201107-201607

*360

main23810-30120i2KDFTV..KUN60..5FC201208-201608

7751

90105T0118

main90105-T0118

90105T0170

main90105-T0170

9011606173

main90116-06173

9011906775

main90119-06775

90119T0306

main90119-T0306

90178T0018

main90178-T0018

9017908022

main90179-08022

90182T0009

main90182-T0009

9025313008

main90253-13008

90253T0003

main90253-T0003

9030149003

main90301-49003

90301T0011

main90301-T0011

90464T0004

main90464-T0004

90466T0023

main90466-T0023

90466T0041

main90466-T0041

9155180814

main91551-80814

9155281060

main91552-81060

9415180600

main94151-80600

38 parts on this diagram · 5 diagrams in section
