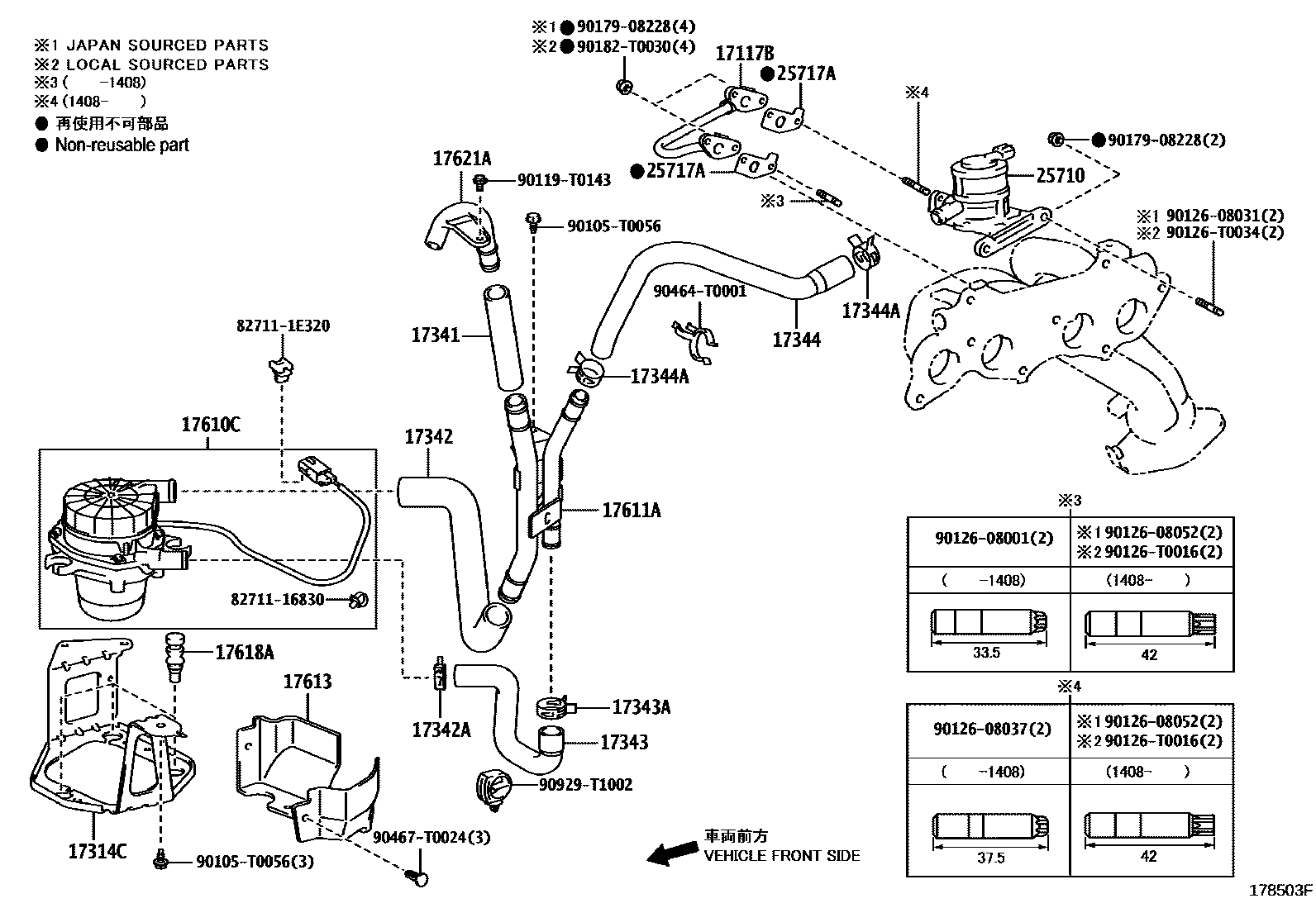

MANIFOLD AIR INJECTION SYSTEM

0001 1 0003 1

17117BPIPE, INTAKE, NO.4

main17117-0C011i2TRFE..TGN61..LA,TH201107-201112

main17117-0C020i2TRFE..TGN51,61..KZS,LA,MA,TH201412-201703

main17117-75011i2TRFE..TGN61..LA,TH201112-201206

(J)

17314CBRACKET, AIR PUMP

main17314-0C010i2TRFE..TGN51,61..KZS,LA,TH201107-201703

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-0C010i2TRFE..TGN51,61..KZS,LA,TH201107-201703

main17341-0C060i2TRFE..TGN61..GEN201308-201510

SINGAPORE SPEC

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-0C010i2TRFE..TGN51,61..KZS,LA,TH201107-201703

main17342-0C060i2TRFE..TGN61..GEN201308-201510

SINGAPORE SPEC

17342ACLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)

main90466-T0034i2TRFE..TGN51,61..KZS,LA,TH201107-201703

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-0C010i2TRFE..TGN51,61..KZS,LA,TH201203-201703

*299

main17343-0C060i2TRFE..TGN61..GEN201308-201510

SINGAPORE SPEC,*303

17343ACLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)

main90466-T0034i2TRFE..TGN51..MA201309-201703

17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)

main17344-0C010i2TRFE..TGN51,61..KZS,LA,TH201203-201703

*299

main17344-0C060i2TRFE..TGN61..GEN201308-201510

SINGAPORE SPEC,*303

17344ACLAMP OR CLIP, NO.4(FOR AIR INJECTION SYSTEM HOSE, NO.4)

main90466-T0034×2i2TRFE..TGN51,61..KZS,LA,TH201107-201703

17610CPUMP ASSY, AIR

main17610-0C020i2TRFE..TGN51..MA201309-201703

17611APIPE, AIR PUMP INLET

main17611-0C010i2TRFE..TGN51,61..KZS,LA,TH201107-201703

17613COVER, AIR PUMP

main17613-0C010i2TRFE..TGN51,61..KZS,LA,TH201107-201404

17618AINSULATOR, AIR PUMP

main17618-0C010×3i2TRFE..TGN51,61..KZS,LA,TH201107-201703

17621AINLET, AIR PUMP

main17621-0C020i2TRFE..TGN51,61..KZS,LA,TH201107-201703

25710VALVE ASSY, AIR SWITCHING

main25710-75022i2TRFE..TGN61..LA,TH201107-201203

main25710-75023i2TRFE..TGN61..LA,TH201203-201208

main25710-75024i2TRFE..TGN61..LA,TH201208-201305

main25710-75025i2TRFE..TGN51,61..KZS,LA,TH201305-201703

25717AGASKET, AIR SWITCHING VALVE

main25717-75010×2i2TRFE..TGN51,61..KZS,LA,TH201107-201703

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E320

90105T0056

main90105-T0056

90119T0143

main90119-T0143

9012608001

main90126-08001

9012608031

main90126-08031

9012608037

main90126-08037

9012608052

main90126-08052

90126T0016

main90126-T0016

90126T0034

main90126-T0034

9017908228

main90179-08228

90182T0030

main90182-T0030

90464T0001

main90464-T0001

90467T0024

main90467-T0024

90929T1002

main90929-T1002

31 parts on this diagram · 2 diagrams in section
