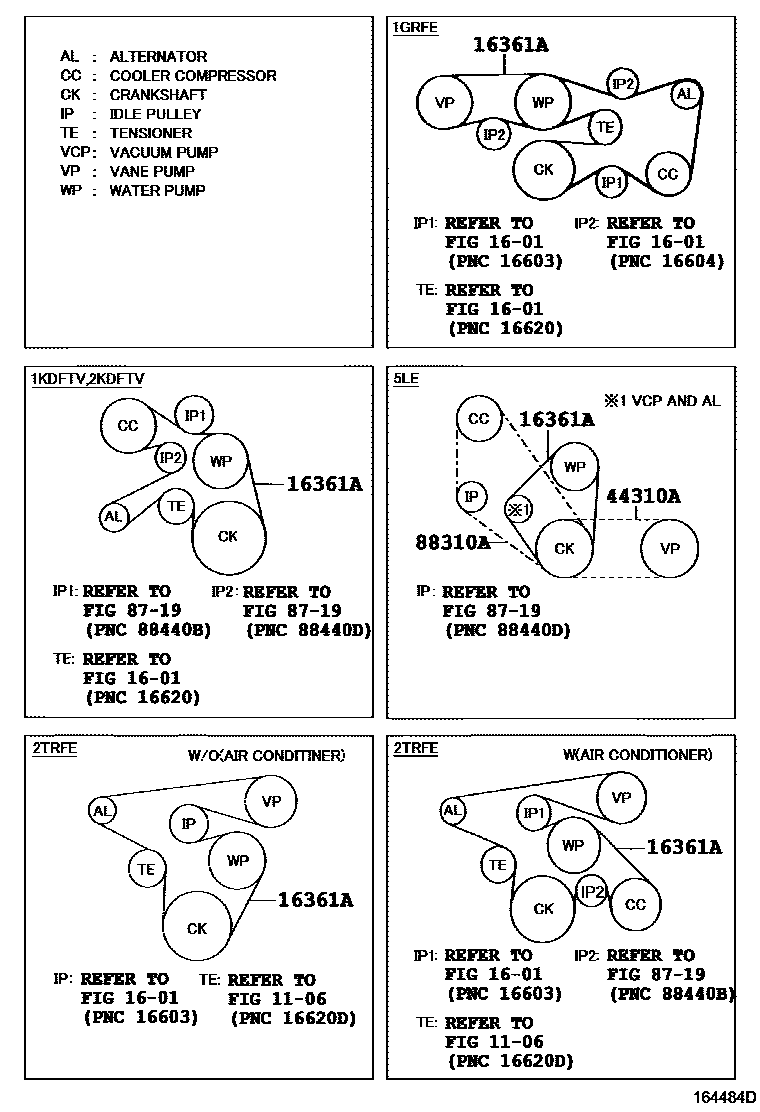

V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-92016i5LE..LAN50201108-201512

main90916-02571i1GRFE..GGN50,60201107-201909

main90916-02640i2TRFE..TGN51,61..GCC201107-201111

main90916-02708i2TRFE..TGN51,61..GCC201112-201510

main90916-T2006i1KDFTV,2KDFTV..KUN5#,6#201107-201611

main90916-T2024i2TRFE..TGN51,61..CO,EPT,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,VN201107-201703

main99367-H2120i1GRFE..GGN50,60201910

main90916-T2022i2TRFE..TGN61..GEN201308-201510

AIR CONDITIONER-WITHOUT

44310ABELT, V(FOR VANE PUMP)

main90916-T2020iLAN50201108-201512

L=825

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-T2008iLAN50201108-201512

L=1265

6 parts on this diagram · 1 diagram in section
