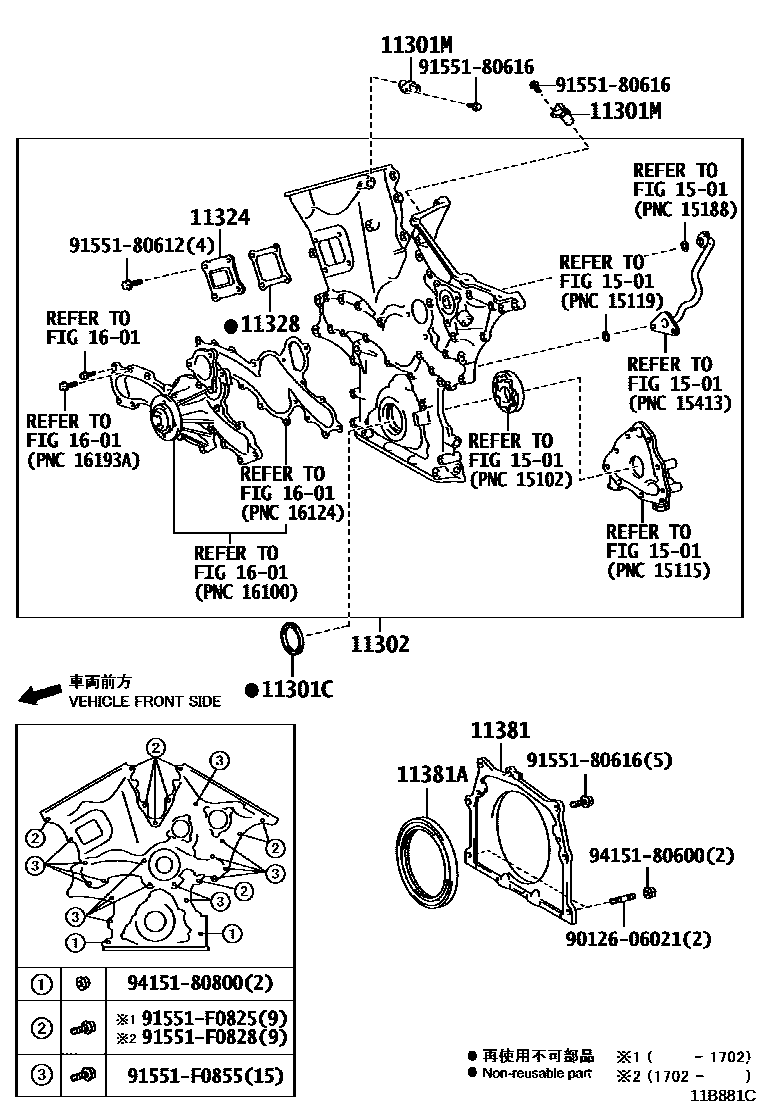

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11301CASE SUB-ASSY, TIMING GEAR

main11311-54052i5LE..LAN50201108-201512

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90080-31096i2KDFTV..KUN60..4FC..SA;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..SUVW..5F..GEN;1KDFTV..KUN51..IDSUV,SASUV,THSUV;1KDFTV,2KDFTV..KUN5#,61..SUVW..(CO,IND,LA,MA,PHL,SA,TH)201107-201211

*130

main90311-42031i5LE..LAN50201108-201512

main90311-42048i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

main90311-50017i2KDFTV..KUN60..IDN,PHL,SA;1KDFTV,2KDFTV..KUN5#,61..GEN,MA,PHL,SA,TH201107-201202

*360

main90311-50051i2KDFTV..KUN60..VN201202-201607

*360

main90311-T0032i2TRFE..TGN51,61201107-201501

main90311-T0054i1KDFTV..KUN61..4FC;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#..CO,IDN,LA,MA,PHL,SA,TH;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,SA,TH,VN)201211-201611

*130

main90311-T0060i2TRFE..TGN51,61..CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,VN201502-201703

main90311-T0061i2TRFE..TGN61..TH201502-201504

11301MSENSOR, CAM POSITION

main90919-05036i2TRFE..TGN51..PKN201107-201609

main90919-05060×2i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0C021i2TRFE..TGN51,61..SUVW..(GCC,GEN,IDN,PHL,TH)201107-201412

main11310-0C022i2TRFE..TGN51,61..CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,VN201412-201503

SIAMAISIN,11421=T/PA

main11310-0C023i2TRFE..TGN51,61..CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,VN201503-201703

SIAMAISIN,11421=T/PB

main11310-31013i1GRFE..GGN50,60201107-201508

main11310-31014i1GRFE..GGN50,60..ANCOM,CO,GCC,LA,SA201509

main11321-54020i5LE..LAN50201108-201112

main11321-54021i5LE..LAN50201112-201512

11324PLATE, TIMING CHAIN COVER

main11324-31020i1GRFE..GGN50..EPT201107-201612

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-05010i5LE..LAN50201108-201512

(L)

main11328-31030i1GRFE..GGN50..EPT201107-201612

main11328-54021i5LE..LAN50201108-201512

(J)

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0C011i2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..CO,LA,MA,SA201107-201112

main11381-0C012i2TRFE..TGN51..PKN201408-201609

(L)

main11381-0C021i2TRFE..TGN51,61..SUVW..(GCC,GEN,IDN,PHL,TH)201112-201502

(L)

main11381-0C022i2TRFE..TGN61..TH201502-201504

(L)

main11381-0K010i2KDFTV..KUN60..5F..IND;1KDFTV..KUN51,61..(5F,5FC)..IND201201-201608

*130,(L)

main11381-0L010i1KDFTV..KUN51..SUVW..(CO,LA)201110-201510

main11381-31010i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

main11381-54030i5LE..LAN50201108-201512

main11381-67020i2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH)201107-201608

*360

main11381-75011i2TRFE..TGN51,61201112-201206

(J)

11381ASEAL, ENGINE REAR OIL

main90080-31100i1KDFTV..KUN51..IDSUV,SASUV,THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH,VN;1KDFTV..KUN51,61..SUVW..(IND,PHL,SA,TH)201107-201208

*130

main90311-85008i5LE..LAN50201108-201402

main90311-85011i5LE..LAN50201402-201512

main90311-95008i2KDFTV..KUN60..IDN,PHL,SA,VN;1KDFTV,2KDFTV..KUN5#,61..GEN,MA,PHL,SA,TH201107-201205

*360

main90311-95015i2KDFTV..KUN60..5F..TH201208-201608

*360

main90311-99010i1GRFE..GGN50..EPT201107-201612

main90311-T0026i2TRFE..TGN51,61201107-201501

main90311-T0046i2KDFTV..KUN60..5F..IND;1KDFTV..KUN51,61..(5F,5FC)..IND201208-201608

*130

main90311-T0058i2TRFE..TGN51..PKN201502-201609

main90311-T0059i2TRFE..TGN61..TH201502-201504

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

9012606021

main90126-06021

9155180612

main91551-80612

9155180616

main91551-80616

91551F0825

main91551-F0825

91551F0828

main91551-F0828

91551F0855

main91551-F0855

9415180600

main94151-80600

9415180800

main94151-80800

18 parts on this diagram · 6 diagrams in section
