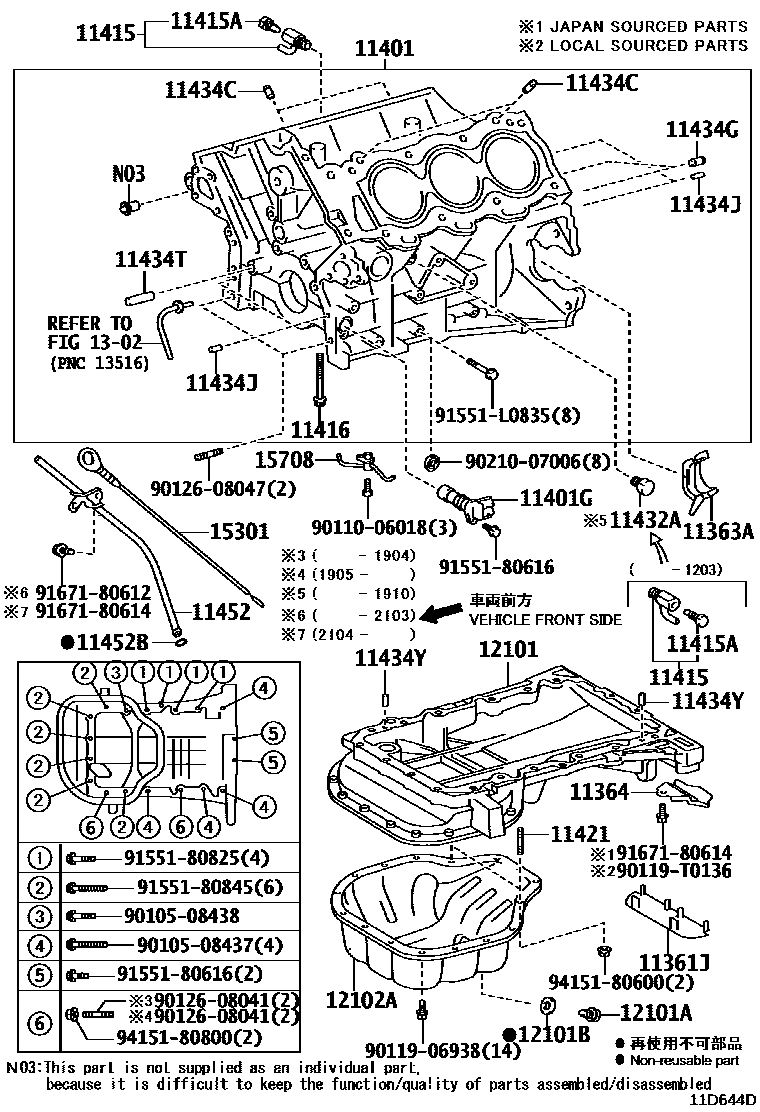

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-31040i1GRFE..GGN50..EPT201107-201612

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31020i1GRFE..GGN50,60201107-201501

main11363-31050i1GRFE..GGN50..EPT201502-201612

11364PLATE, UNDER COVER SUB, NO.1

main11364-0P010i1GRFE..GGN50,60201107-201612

(L)

main11364-31020i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

(J)

11401BLOCK SUB-ASSY, CYLINDER

main11401-09410i2TRFE..TGN51,61201107-201404

main11401-09411i2TRFE..TGN51,61201404-201408

main11401-09412i2TRFE..TGN51,61..VN201408-201611

main11401-09492i2KDFTV..KUN60..GEN201107-201510

main11401-09524i1KDFTV..KUN51..SUVW..DCR..(CO,LA)201310-201311

main11401-09702i1KDFTV..KUN51..IDSUV..5F..LA;1KDFTV..KUN51,61..5F..(GEN,SA); 1KDFTV..KUN51..IDSUV..5FC;1KDFTV..KUN51,61..IND,PHL,TH201107-201503

(L)

main11401-09703i1KDFTV..KUN51..IDSUV..5F..LA;1KDFTV..KUN51,61..5F..(GEN,SA)201503-201512

(L)

main11401-09770supersedes 11401-80780i2KDFTV..KUN60..5F..(IDN,PHL)201208

*130

main11401-39897i1KDFTV..KUN51..4FC..(PHL,TH); 1KDFTV..KUN51..IDSUV..4FC..LA;1KDFTV..KUN51,61..4FC..(GEN,SA); 1KDFTV..KUN51..IDSUV..5F..LA;1KDFTV..KUN51,61..5F..(GEN,SA)201107-201311

(J); AIR CONDITIONER-AUTO AIR CONDITIONER DUAL

main11401-39898i1KDFTV..KUN51,61..4FC..(CO,GEN,LA,SA);1KDFTV..KUN51..SUVW..(5F,5FC)..DCR..(CO,LA); 1KDFTV..KUN51..IDSUV..5F..LA;1KDFTV..KUN51,61..5F..(GEN,SA); 1KDFTV..KUN51..PHL201311-201510

*360; AIR CONDITIONER-AUTO AIR CONDITIONER DUAL

main11401-59767i5LE..LAN50201108-201512

main11401-80780i2KDFTV..KUN50..MA201210

*360

main11401-80795i1GRFE..GGN50,60201107-201702

main11401-80802i1KDFTV..KUN51..IART201204-201510

main11401-80803i2KDFTV..KUN60..5FC201208-201608

main11401-80837i1KDFTV..KUN51..IART201510

main11401-80838i1KDFTV..KUN51,61..4FC..(GEN,LA,SA);1KDFTV..KUN51..SUVW..(5F,5FC)..DCR..(CO,LA); 1KDFTV..KUN51..IDSUV..5F..LA;1KDFTV..KUN51,61..5F..(GEN,SA); 1KDFTV..KUN51..PHL201510

*360; AIR CONDITIONER-AUTO AIR CONDITIONER DUAL

main11401-80845i1GRFE..GGN50,60201702-201910

main11401-80858i1GRFE..GGN50,60201910

11401GSENSOR, CRANK POSITION

main90919-05005i5LE..LAN50201108-201512

main90919-05057i1GRFE..GGN50..EPT201107-201612

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09110i5LE..LAN50201108-201512

main90910-09118i2TRFE..TGN51,61201112-201206

(J)

main90910-09129×2i1GRFE..GGN50,60201107-201203

main90910-T9002i2TRFE..TGN51,61..VN201112-201611

(L)

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90334-14002i2KDFTV..KUN60..IDN,PHL201107-201208

*130,(J),*360

main90339-T0002i2KDFTV..KUN50201107-201210

*130,(L)

main90910-09087i1GRFE..GGN50..EPT201107-201612

main90910-T9001i2TRFE..TGN51..PKN201107-201609

(L)

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02061×10i5LE..LAN50201108-201512

main90910-02113×10i2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..LHD..5F..(GEN,PHL);2KDFTV..KUN50,60..RHD..(GEN,IDN,MA,SA);2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH)201107

*360

main90910-02176×16i1GRFE..GGN50,60201107

main90910-02179×10i2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..CO,EPT,KZS,LA,MA,PKN,SA,VN201107-201703

(J)

main90910-T2002×10i2TRFE..TGN51,61201107-201703

(L)

main90910-T2003×10i2KDFTV..KUN50;2KDFTV..KUN60..IDSUV;2KDFTV..KUN60..4FC..SA;2KDFTV..KUN60..5F..(TH,VN)201107-201501

*130

main90910-T2009×10i2KDFTV..KUN50,60..4FC,5F201502

*130

11421BOLT, STUD(FOR OIL PAN)

main90126-06015×2i2TRFE..TGN61..TH201107-201502

TYPE A

main90126-06028×2i1GRFE..GGN50..EPT201107-201612

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51006i5LE..LAN50201108-201512

main90345-52001i1GRFE..GGN50,60201203-201910

main90345-53009i2TRFE..TGN51..PKN201107-201609

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×4i1GRFE..GGN50,60201107

L=18,OD=8

main90253-15005×2i5LE..LAN50201108-201512

L=7,OD=14.5

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113×2i5LE..LAN50201108-201512

main90250-10192×2i2KDFTV..KUN60..VN201107-201607

*360

main90250-T0008×2i1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);1KDFTV,2KDFTV..KUN5#..IDN,MA,PHL,SA,TH;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN)201107-201611

*130

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90250-04097×4i1GRFE..GGN50,60201107

main90253-15016×2i2KDFTV..KUN60..VN201107-201607

*360

main90253-T0002×2i1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);1KDFTV,2KDFTV..KUN5#..IDN,MA,PHL,SA,TH;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN)201107-201611

*130

main90253-T0007×2i2TRFE..TGN51,61..VN201107-201611

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i1GRFE..GGN50,60201107

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097×2i1GRFE..GGN50..EPT201107-201612

main90253-T0006×2i2TRFE..TGN51,61..CO,GCC,GEN,IDN,KZS,LA,MA,PHL,SA,TH201107-201703

11452GUIDE, OIL LEVEL GAGE

main11409-0C011i2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..CO,EPT,KZS,LA,MA,PKN,SA,VN201107-201503

main11409-0C021i2TRFE..TGN51,61..SUVW..(GCC,GEN,IDN,PHL,TH)201107-201504

main11409-0C070i2TRFE..TGN51,61..VN201503-201611

main11452-0L010i2KDFTV..KUN60..5F..IND;1KDFTV..KUN51,61..(5F,5FC)..IND201202-201608

*130,(L)

main11452-0L020i1KDFTV..KUN51..SUVW..DCR..(CO,LA)201110-201510

main11452-30070i2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH)201107-201607

*360

main11452-30150i1KDFTV,2KDFTV..KUN51,60..5FC..(HDCR,IART)201204-201608

main11452-31070i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

main11452-54190i5LE..LAN50201108-201512

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-09018i5LE..LAN50201108-201512

main90301-T0025i2TRFE..TGN51,61201107-201703

main96723-19010i1GRFE..GGN50..EPT201107-201612

12101PAN SUB-ASSY, OIL

main12101-0C010i2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..CO,EPT,KZS,LA,MA,PKN,SA,VN201112-201503

*303

main12101-0C020i2TRFE..TGN51,61..SUVW..(GCC,IDN,PHL,TH)201107-201112

main12101-0C030i2TRFE..TGN51,61..VN201503-201611

*303

main12101-0C040i2TRFE..TGN61..TH201502-201504

main12101-0L030i2KDFTV..KUN60..LHD..5F;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH)201107-201505

*360,(L)

main12101-0L031i1KDFTV..KUN51,61..IND;2KDFTV..KUN60..5F..IND201505-201608

*130

main12101-30100i2KDFTV..KUN60..5F..TH201208-201505

*360,(J)

main12101-54340i5LE..LAN50201108-201512

main12101-75150i2TRFE..TGN51,61201112-201206

*300

main12111-31130i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

main90341-12032i2TRFE..TGN51,61..VN201605-201611

main90341-T0004i2TRFE..TGN61..TH201107-201502

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);1KDFTV,2KDFTV..KUN5#..CO,IDN,LA,MA,PHL,SA,TH;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN)201112-201611

*130,(L)

main90430-12031i2KDFTV..KUN60..VN201107-201607

*360

main90430-T0024i2TRFE..TGN51..KZS201605-201703

(L)

12102APAN SUB-ASSY, OIL, NO.2

main12102-0C010i2TRFE..TGN51..EPT201503-201612

(J)

main12102-0C020i2TRFE..TGN51,61..VN201503-201611

(L)

main12102-31060i1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA201107

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0C010i2TRFE..TGN51..4FC..SA;2TRFE..TGN51,61..IDSUV;2TRFE..TGN51,61..CO,EPT,KZS,LA,MA,PKN,VN201107-201503

main15301-0C020i2TRFE..TGN51..PKN201503-201609

MADE IN THAILAND

main15301-0C030i2TRFE..TGN51..PKN201503-201609

MADE IN INDONESIA

main15301-0L030i2KDFTV..KUN60..5F..IND;1KDFTV..KUN51,61..(5F,5FC)..IND201107-201608

*130

main15301-0L040i1KDFTV..KUN51..SUVW..(CO,LA)201110-201510

main15301-30070i2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH)201107-201607

*360

main15301-31060i1GRFE..GGN50..EPT201107-201612

main15301-54111i5LE..LAN50201108-201512

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0C010×4i2TRFE..TGN51..EPT201406-201612

MADE IN INDONESIA

main15708-0L011×4i2KDFTV..KUN60..5F..IND;1KDFTV..KUN51,61..(5F,5FC)..IND201202-201608

*130,(L)

main15708-30011×4i2KDFTV..KUN60..VN201107-201607

*360

main15708-31020×3i1GRFE..GGN50..EPT201107-201612

main15708-54060×4i5LE..LAN50201108-201512

main15708-75010×4i2TRFE..TGN51,61201107-201301

main15708-75020×4i2TRFE..TGN51,61..SUVW..(GCC,GEN,IDN,PHL,TH)201301-201504

9010508437

main90105-08437

9010508438

main90105-08438

9011006018

main90110-06018

9011906938

main90119-06938

90119T0136

main90119-T0136

9012608041

main90126-08041

9012608047

main90126-08047

9021007006

main90210-07006

9155180616

main91551-80616

9155180825

main91551-80825

9155180845

main91551-80845

91551L0835

main91551-L0835

9167180612

main91671-80612

9167180614

main91671-80614

9415180600

main94151-80600

9415180800

main94151-80800

40 parts on this diagram · 7 diagrams in section
