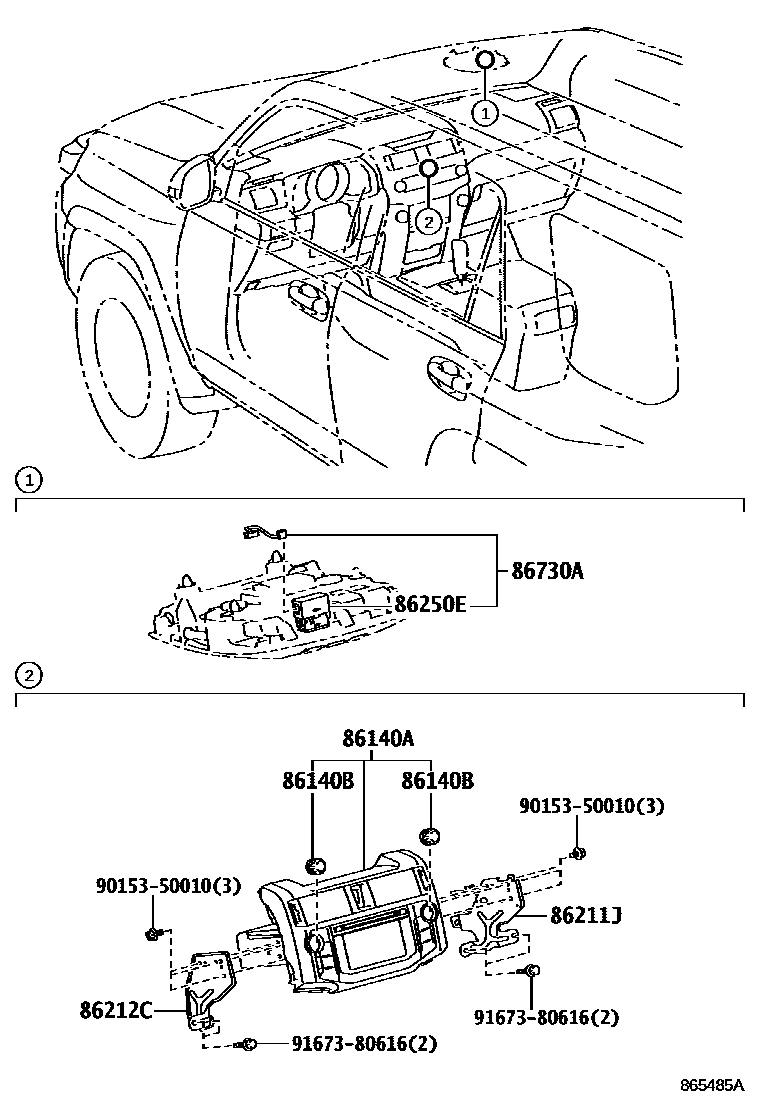

NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-35140i201308-201410

PIONEER,ID=P10546,LIMITED PACKAGE&AUDIO-*DA; PIONEER,ID=P10546,SR5 PACKAGE&AUDIO-*DA

main86140-35141i201411-201810

PIONEER,ID=P10546,LIMITED PACKAGE&AUDIO-*DA; PIONEER,ID=P10546,SR5 PACKAGE&AUDIO-*DA

main86140-35142i201811-201908

PIONEER,ID=P10546,LIMITED PACKAGE&AUDIO-*DA; PIONEER,ID=P10546,SR5 PACKAGE&AUDIO-*DA

main86140-35350i201908-202108

PIONEER, LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER; PIONEER, SR5 PACKAGE&AUDIO-*DA & 8SPEAKER

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-22101×2i201308-201908

LIMITED PACKAGE&AUDIO-*DA; SR5 PACKAGE&AUDIO-*DA

main90010-22135×2i201908-202108

LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER; SR5 PACKAGE&AUDIO-*DA & 8SPEAKER

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-35110supersedes 86211-35090i201308-201908

LIMITED PACKAGE&AUDIO-*DA; SR5 PACKAGE&AUDIO-*DA

main86211-35140i201908-202108

LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER; SR5 PACKAGE&AUDIO-*DA & 8SPEAKER

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-35110supersedes 86212-35090i201308-201908

LIMITED PACKAGE&AUDIO-*DA; SR5 PACKAGE&AUDIO-*DA

main86212-35140i201908-202108

LIMITED PACKAGE&AUDIO-*DA & 8SPEAKER; SR5 PACKAGE&AUDIO-*DA & 8SPEAKER

86250EMICROPHONE ASSY, AMPLIFIER

86730AMICROPHONE ASSY, TELEPHONE

9015350010

9167380616

8 parts on this diagram · 2 diagrams in section
