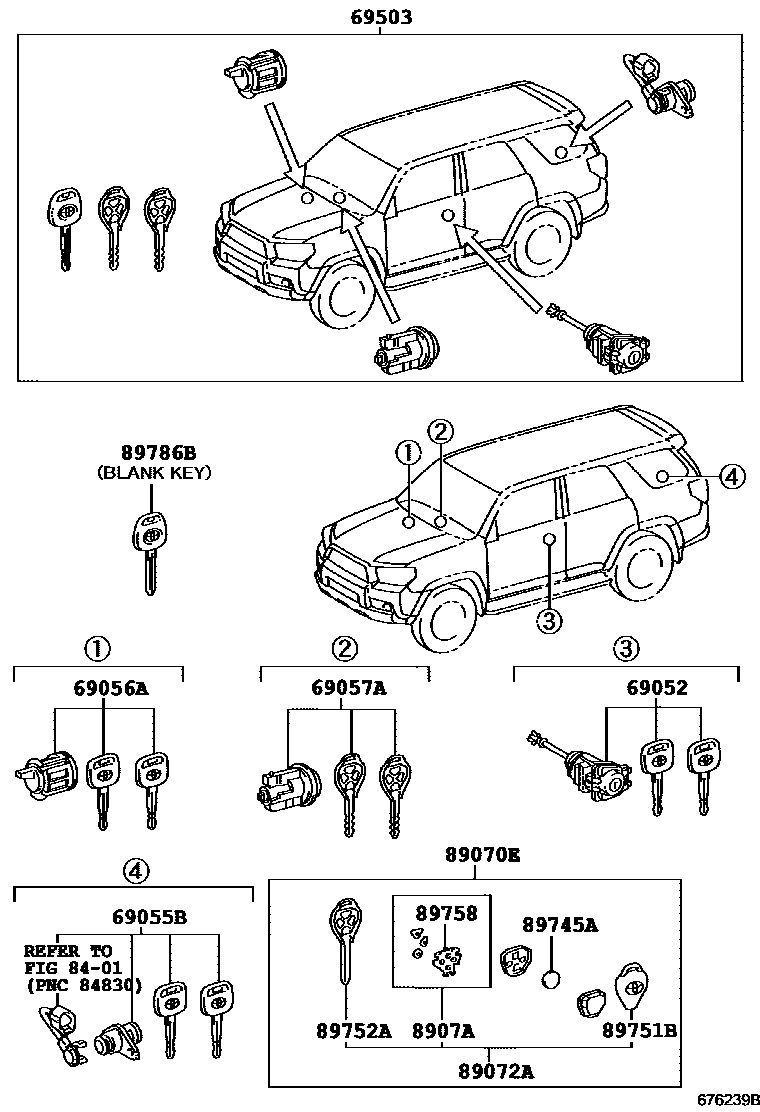

LOCK CYLINDER SET

0001 1 0002 1 0003 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-35180iGRN28#200908-201308

main69052-35201iGRN28#202208

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-35140iGRN28#200908-201308

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-42100iGRN28#200908-201308

main69056-50160iGRN28#202208

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-35240iGRN28#200908-201308

main69057-42340iGRN28#201908-202208

69503CYLINDER SET, LOCK

main69005-35A80iGRN28#200908-201308

main69005-35B90iGRN28#201908-202208

main69005-35C01iGRN28#202208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-35170supersedes 89070-35270iGRN28#201308-201908

PANAMA SPEC

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-35060supersedes 89072-42550iGRN28#201308-201908

PANAMA SPEC

8907ASWITCH SET, TRANSMITTER

main8907A-12010×2iGRN28#200908-201308

main8907A-52020×2iGRN28#201908-202208

89745ABATTERY, TRANSMITTER

main89745-48030×2iGRN28#200908-201308

CR2016

main89745-71010×2iGRN28#201908-202208

CR2016

89751BCOVER, TRANSMITTER HOUSING

main89751-35060×2supersedes 89751-52140iGRN28#201308-201908

PANAMA SPEC

89752ACASE, TRANSMITTER HOUSING

main89752-42080iGRN28#201908-202208

main89752-68060iGRN28#200908-201308

89758PACKING, DOOR CONTROL TRANSMITTER

main89758-33010×2iGRN28#200908-201308

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-42040iGRN28#201908-202208

BLANK KEY

main89786-60220iGRN28#200908-201308

BLANK KEY

14 parts on this diagram · 3 diagrams in section
