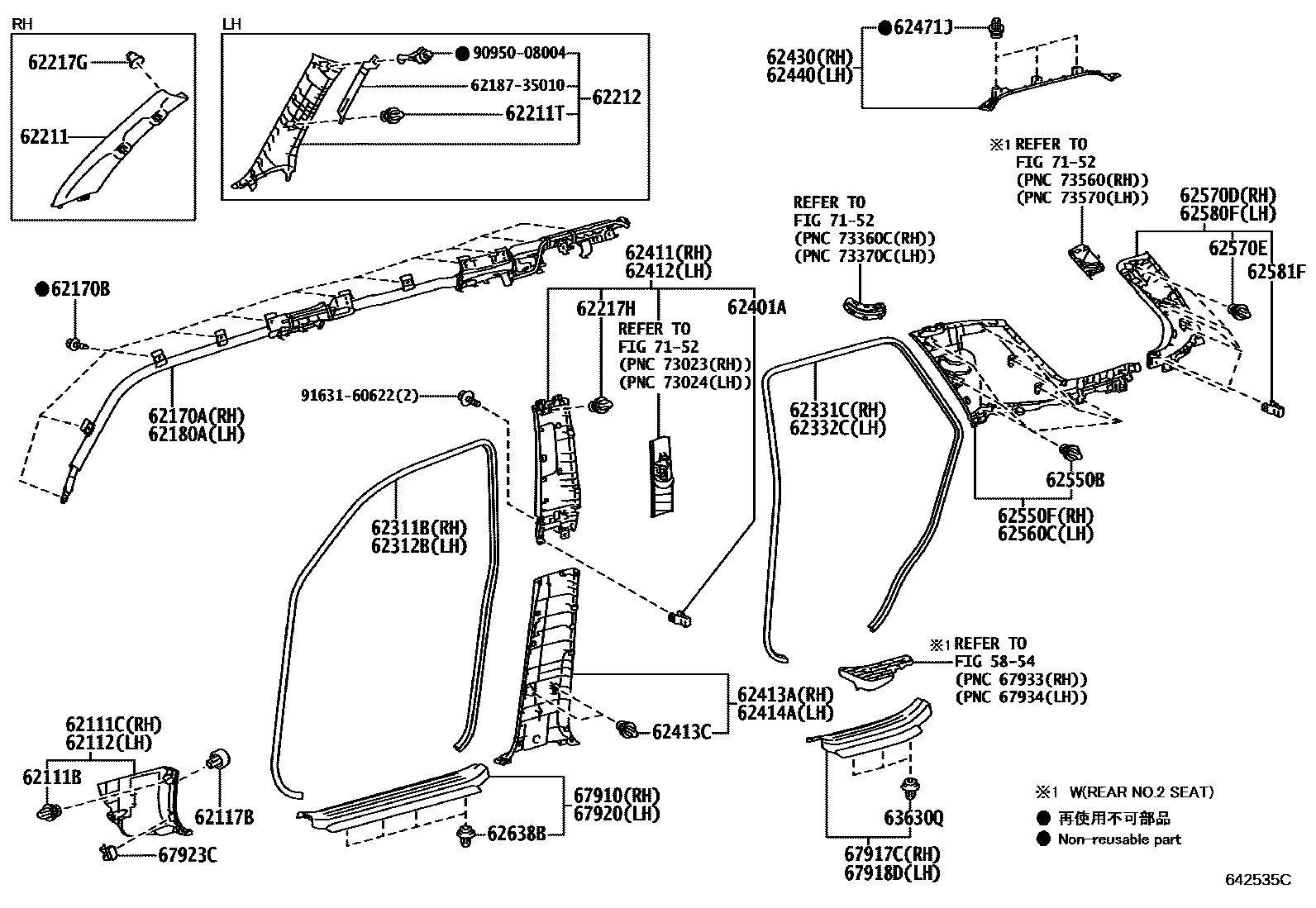

INSIDE TRIM BOARD

0001 1 0002 1 0003 1W/O(REAR NO.2 SEAT) 0004 1W(REAR NO.2 SEAT)

5854

62111BCLIP(FOR COWL SIDE TRIM)

main62217-13010iGRN28#200908-201908

62111CBOARD, COWL SIDE TRIM, RH

main62111-60160-C0iGRN28#200908-201306

BLACK,TRIM1#,4#

sub62111-60161

main62111-60161-C0iGRN28#201307-201308

BLACK,TRIM1#,4#

main62111-60161-C0iGRN28#201308-201908

BLACK,TRIM2#,4#

62112BOARD, COWL SIDE TRIM, LH

main62112-60250-C0iGRN28#200908-201306

BLACK,TRIM1#,4#

sub62112-60251

main62112-60251-C0iGRN28#201307-201308

BLACK,TRIM1#,4#

sub62112-60260

main62112-60251-C0iGRN28#201308-202107

BLACK,TRIM2#,4#

sub62112-60260

main62112-60260-C0iGRN28#202108

BLACK,TRIM2#,4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06183iGRN28#200908-201908

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-35040iGRN28#200908-201308

main62170-35070iGRN28#201308-201908

62170BBOLT, W/WASHER

main90119-06869iGRN28#200908-201308

REAR NO.2 SEAT-WITH(50:50)

main90119-06869iGRN28#201308-201908

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-35040iGRN28#200908-201308

main62180-35060iGRN28#201308-201908

62211GARNISH, FRONT PILLAR, RH

main62210-35030-B0iGRN28#200908-201308

LT.GRAY,TRIM1#

main62210-35030-B0iGRN28#201308-201908

LT.GRAY,TRIM2#

main62210-35030-E0iGRN28#200908-201908

SAND BEIGE,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10167iGRN28#200908-201308

main90467-10188iGRN28#201308-201908

62212GARNISH, FRONT PILLAR, LH

main62220-35030-B0iGRN28#200908-201308

LT.GRAY,TRIM1#

main62220-35030-E0iGRN28#200908-201308

SAND BEIGE,TRIM4#

main62220-35040-B0iGRN28#201308-201908

LT.GRAY,TRIM2#

main62220-35040-E0iGRN28#201308-201908

SAND BEIGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-35020iGRN28#201308-201908

LH

main62217-60020iGRN28#201308-201908

RH

main62217-60020iGRN28#200908-201308

62217HCLIP, CENTER PILLER GARNISH

main90467-10188iGRN28#200908-201908

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-60150-C0iGRN28#200908-201308

BLACK,TRIM1#,4#

sub62311-60150

main62311-60150-C0iGRN28#201308-201908

BLACK,TRIM2#,4#

sub62311-60150

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-60150-C0iGRN28#200908-201308

BLACK,TRIM1#,4#

sub62312-60150

main62312-60150-C0iGRN28#201308-201908

BLACK,TRIM2#,4#

sub62312-60150

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-35030-C0iGRN28#200908-201308

BLACK,TRIM1#,4#

main62331-35030-C0iGRN28#201308-201908

BLACK,TRIM2#,4#

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-35030-C0iGRN28#201308-201908

BLACK,TRIM2#,4#

main62332-35030-C0iGRN28#200908-201308

BLACK,TRIM1#,4#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10203iGRN28#200908-201908

62411GARNISH, CENTER PILLAR, RH

main62410-35010-B0iGRN28#201308-201908

LT.GRAY,TRIM2#

main62410-35010-B0iGRN28#200908-201308

LT.GRAY,TRIM1#

main62410-35010-E0iGRN28#200908-201908

SAND BEIGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-35010-B0iGRN28#201308-201908

LT.GRAY,TRIM2#

main62420-35010-B0iGRN28#200908-201308

LT.GRAY,TRIM1#

main62420-35010-E0iGRN28#200908-201908

SAND BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-60090-C0iGRN28#200908-201308

BLACK,TRIM1#,4#

main62413-60090-C0iGRN28#201308-201908

BLACK,TRIM2#,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iGRN28#200908-201908

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-60090-C0iGRN28#200908-201308

BLACK,TRIM1#,4#

main62414-60090-C0iGRN28#201308-201908

BLACK,TRIM2#,4#

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62430-35010-B0iGRN28#200908-201308

LT.GRAY,TRIM1#

main62430-35010-B0iGRN28#201308-201908

LT.GRAY,TRIM2#

main62430-35010-E0iGRN28#200908-201908

SAND BEIGE,TRIM4#

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62440-35010-B0iGRN28#200908-201308

LT.GRAY,TRIM1#

main62440-35010-B0iGRN28#201308-201908

LT.GRAY,TRIM2#

main62440-35010-E0iGRN28#200908-201908

SAND BEIGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iGRN28#200908-201908

62550BCLIP(FOR REAR WINDOW SIDE GARNISH)

main90467-10161iGRN28#200908-201908

62550FGARNISH ASSY, REAR WINDOW SIDE, RH

main62550-35050-B0iGRN28#200908-201308

LT.GRAY,TRIM1#

main62550-35050-B0iGRN28#201308-201908

LT.GRAY,TRIM2#

main62550-35050-E0iGRN28#200908-201908

SAND BEIGE,TRIM4#

62560CGARNISH ASSY, REAR WINDOW SIDE, LH

main62560-35050-B0iGRN28#200908-201308

LT.GRAY,TRIM1#

main62560-35050-B0iGRN28#201308-201908

LT.GRAY,TRIM2#

main62560-35050-E0iGRN28#200908-201908

SAND BEIGE,TRIM4#

62570DGARNISH ASSY, REAR WINDOW SIDE, NO.2 RH

main62570-35010-B0iGRN28#201308-201908

LT.GRAY,TRIM2#

main62570-35010-B0iGRN28#200908-201308

LT.GRAY,TRIM1#

main62570-35010-E0iGRN28#200908-201908

SAND BEIGE,TRIM4#

62570ECLIP, REAR WINDOW SIDE GARNISH

main90467-10161iGRN28#200908-201908

62580FGARNISH ASSY, REAR WINDOW SIDE, NO.2 LH

main62580-35030-B0iGRN28#200908-201308

LT.GRAY,TRIM1#

main62580-35030-B0iGRN28#201308-201908

LT.GRAY,TRIM2#

main62580-35030-E0iGRN28#200908-201908

SAND BEIGE,TRIM4#

62581FCLIP (FOR QUARTER PILLAR GARNISH)

main90467-10203iGRN28#200908-201908

62638BCLIP

main90467-10162iGRN28#200908-201908

63630QCLIP

main90467-10162iGRN28#200908-201908

67910PLATE ASSY, DOOR SCUFF, RH

main67910-35010-C0iGRN28#200908-201307

BLACK,TRIM1#,4#

sub67910-35011

main67910-35011-C0iGRN28#201308-201908

BLACK,TRIM2#,4#

67917CPLATE, REAR DOOR SCUFF, RH

main67930-35010-C0iGRN28#200908-201307

BLACK,TRIM1#,4#

sub67930-35011

main67930-35011-C0iGRN28#201308-201908

BLACK,TRIM2#,4#

67918DPLATE, REAR DOOR SCUFF, LH

main67940-35010-C0iGRN28#200908-201307

BLACK,TRIM1#,4#

sub67940-35011

main67940-35011-C0iGRN28#201308-201908

BLACK,TRIM2#,4#

67920PLATE ASSY, DOOR SCUFF, LH

main67920-35010-C0iGRN28#200908-201307

BLACK,TRIM1#,4#

sub67920-35011

main67920-35011-C0iGRN28#201308-201908

BLACK,TRIM2#,4#

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030iGRN28#200908-201908

7152

6218735010PLATE, REAR WHEEL HOUSE SIDE BOARD SET

main62187-35010

9095008004

main90950-08004

9163160622

main91631-60622

44 parts on this diagram · 4 diagrams in section
