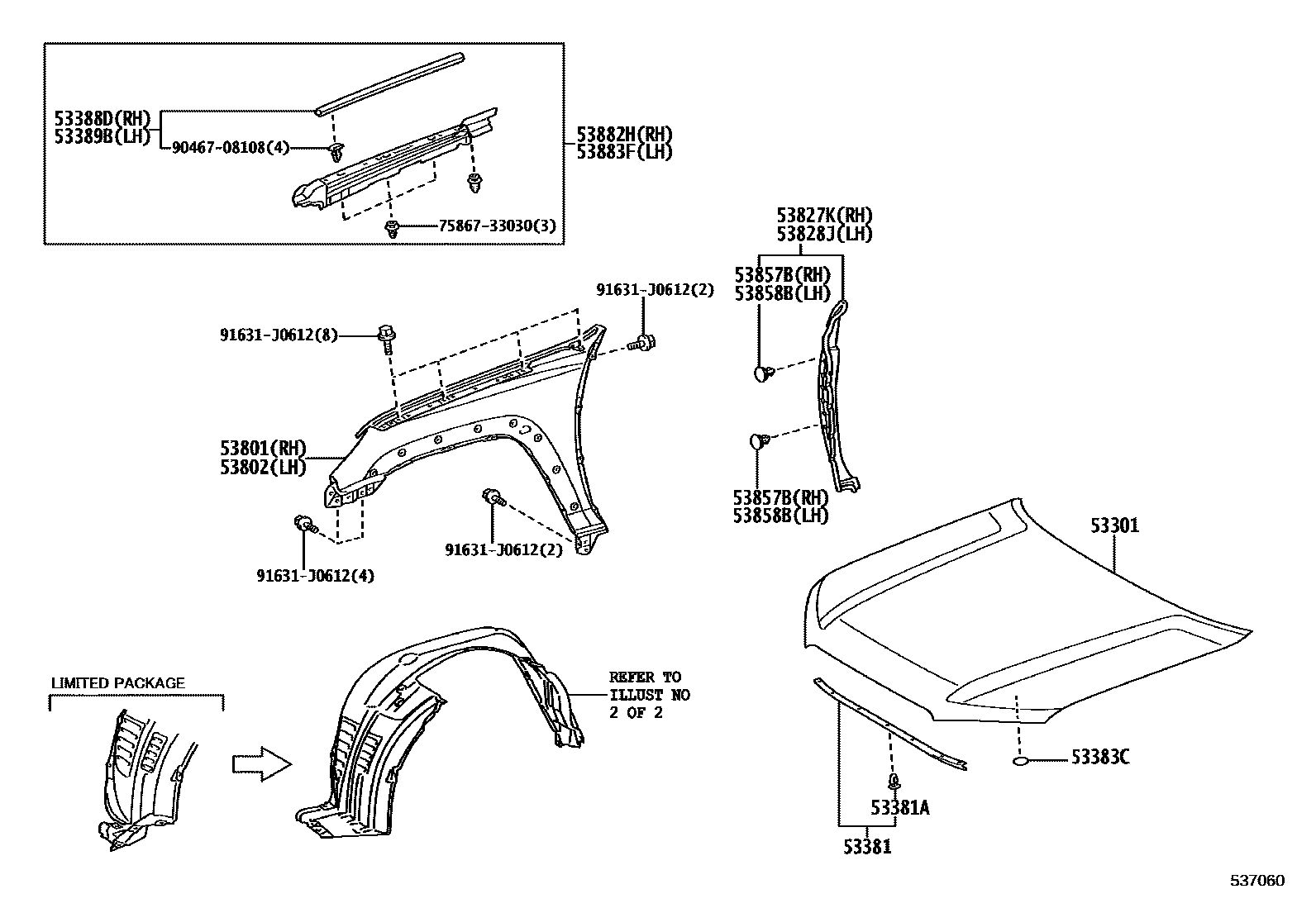

HOOD & FRONT FENDER

0001 1 0002 1 0003 1FENDER LINER 0004 1FENDER LINER

53301HOOD SUB-ASSY

main53301-35200iGRN28#201308-201908

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60140iGRN28#200908-201308

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iGRN28#200908-201308

53383CSEAL, HOOD TO COWL TOP

main90950-06096×2iGRN28#201405-201908

main90950-06124×2iGRN28#200908-201308

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-35020iGRN28#201908

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-35010iGRN28#200908-201308

53801FENDER SUB-ASSY, FRONT RH

main53811-35420iGRN28#200908-201308

main53811-35430iGRN28#201308-201908

53802FENDER SUB-ASSY, FRONT LH

main53812-35510iGRN28#200908-201308

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-35050iGRN28#200908-201308

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-35070iGRN28#200908-201308

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011×2iGRN28#201308-201908

main90467-06205-C0×2iGRN28#200908-201101

BLACK

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011×2iGRN28#201102-201308

main90467-06205-C0×2iGRN28#200908-201101

BLACK

53882HSEAL, FRONT FENDER MAIN, RH

main53807-35120iGRN28#200908-201308

53883FSEAL, FRONT FENDER MAIN, LH

main53808-35120iGRN28#200908-201308

7586733030MOULDING, FRONT PANEL

main75867-33030

9046708108

main90467-08108

91631J0612

main91631-J0612

17 parts on this diagram · 4 diagrams in section
