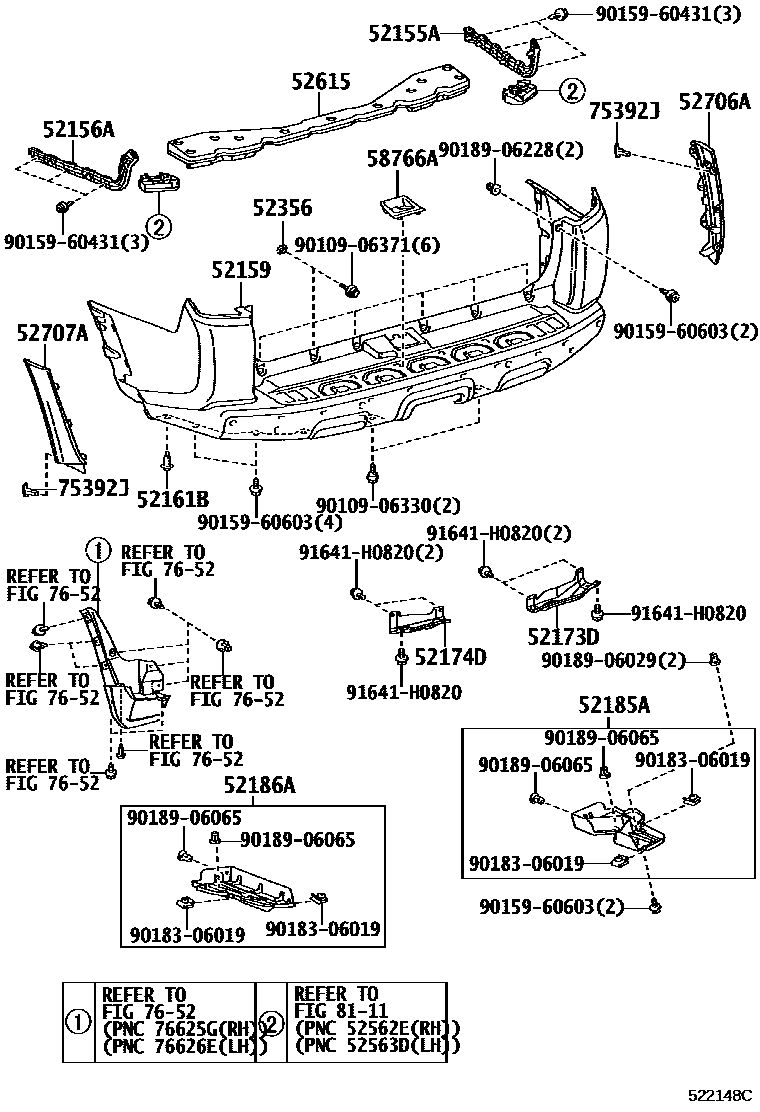

REAR BUMPER & BUMPER STAY

0001 1 0002 1LIMITED PACKAGE 0003 1 0004 1LIMITED PACKAGE

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-35050iGRN28#200908-201308

LIMITED PACKAGE

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-35050iGRN28#200908-201308

LIMITED PACKAGE

52159COVER, REAR BUMPER

main52159-35912supersedes 52159-35922iGRN28#200908-201308

PAINT REQ.,LIMITED PACKAGE

main52159-35919supersedes 52159-35922iGRN28#201308-201908

PAINT REQ.,LIMITED PACKAGE

52161BPIECE, REAR BUMPER

main90467-09227×2iGRN28#200908-201308

52173DREINFORCEMENT, REAR BUMPER BAR, RH

main52173-35100supersedes 52173-35090iGRN28#201308-201908

LIMITED PACKAGE

52174DREINFORCEMENT, REAR BUMPER BAR, LH

main52174-35100supersedes 52174-35090iGRN28#201308-201908

LIMITED PACKAGE

52185ABRACKET, REAR BUMPER SIDE, RH

main53723-35040supersedes 53723-35050iGRN28#201308-201908

LIMITED PACKAGE

52186ABRACKET, REAR BUMPER SIDE, LH

main53724-35030supersedes 53724-35040iGRN28#201308-201908

LIMITED PACKAGE

52356CUSHION, REAR BUMPER STEP

main52356-60050×6iGRN28#200908-201308

52615ABSORBER, REAR BUMPER ENERGY

main52615-35050iGRN28#200908-201308

52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH

main52706-35010iGRN28#200908-201308

52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH

main52707-35010iGRN28#200908-201308

58766ACOVER, JACK BOX HOLE

main58766-35010iGRN28#200908-201308

75392JRETAINER, OUTSIDE MOULDING

main75392-35200×10supersedes 75392-35220iGRN28#201308-201908

LIMITED PACKAGE

7652SPOILER & SIDE MUDGUARD

→ Go to FIG 76-52

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

9010906330

main90109-06330

9010906371

main90109-06371

9015960431

main90159-60431

9015960603

main90159-60603

9018306019

main90183-06019

9018906029

main90189-06029

9018906065

main90189-06065

9018906228

main90189-06228

91641H0820

main91641-H0820

25 parts on this diagram · 4 diagrams in section
