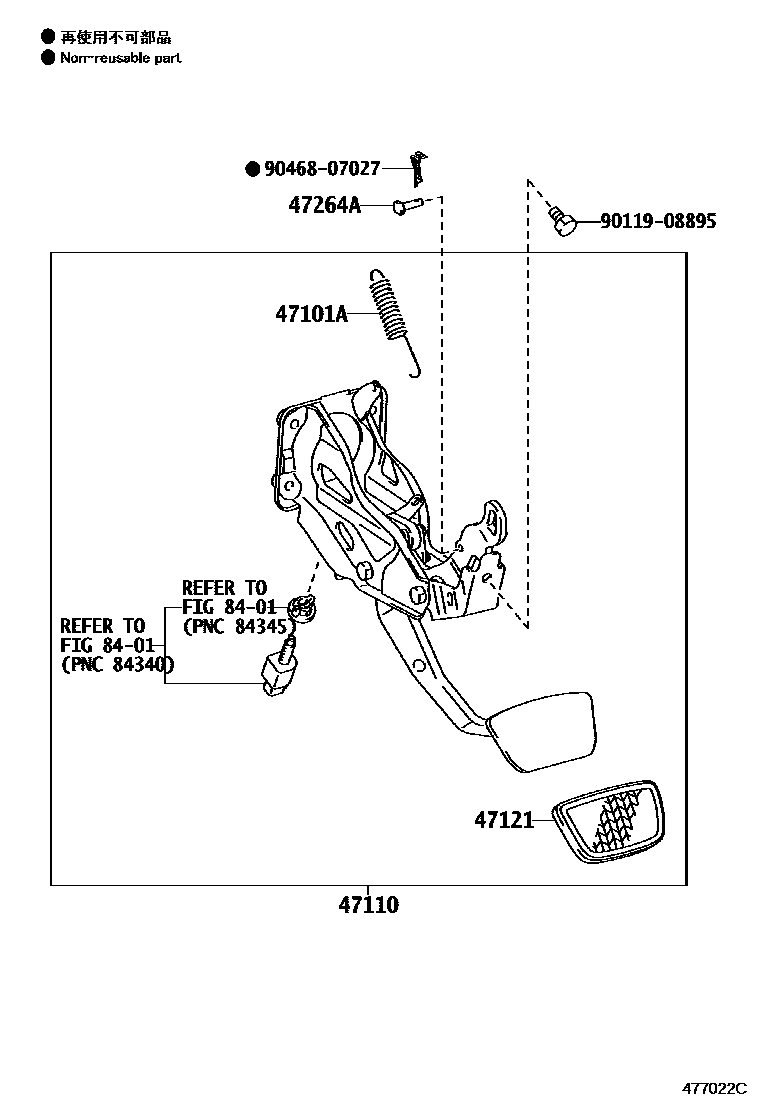

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20034iGRN28#200908-201308

47110SUPPORT ASSY, BRAKE PEDAL

main47110-35110iGRN28#200908-200912

main47110-35111iGRN28#201001-201308

main47110-35140iGRN28#201308-201908

main47110-35150iGRN28#201908

47121PAD, BRAKE PEDAL

main47121-50020iGRN28#200908-201308

47264APIN(FOR PUSH ROD)

main90240-06027iGRN28#200908-201308

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908895

main90119-08895

9046807027

main90468-07027

7 parts on this diagram · 2 diagrams in section
