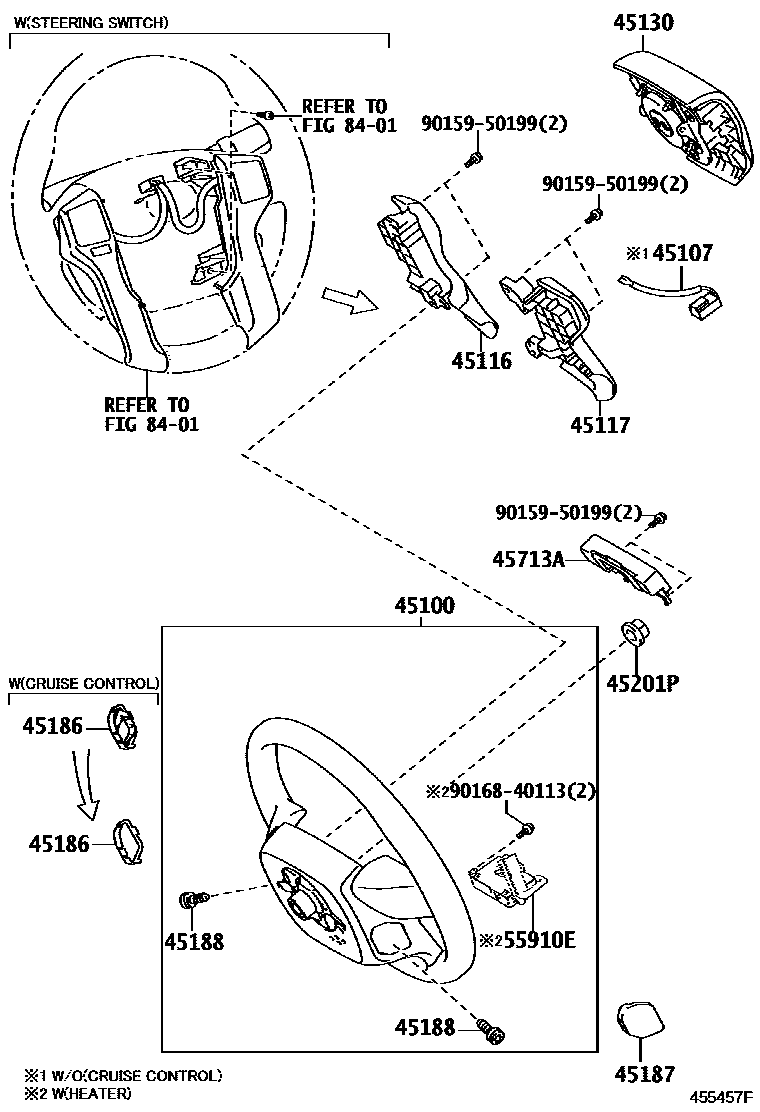

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-35540-C0supersedes 45100-60670-C0i202108

4-SPOKE,LEATHER,BLACK,TRIM2#,4#

main45100-35520-C0supersedes 45100-60670-C0i202208

4-SPOKE,LEATHER, LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,4#; 4-SPOKE,LEATHER,SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#,4#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-22010i200908-201308

AUDIO-AM/FM,CD,BLUETOOTH,8SPEAKER

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-35020-B0i201308-201908

SILVER METALLIC,TRIM2#,4#

main45116-60030-B1i200908-201308

SILVER ME.,TRIM1#,4#

45117ORNAMENT, STEERING WHEEL, NO.2

main45117-35010-B0i201308-201908

SILVER METALLIC,TRIM2#,4#

main45117-60030-B2i200908-201308

SILVER ME.,TRIM1#,4#

45130BUTTON ASSY, HORN

BLACK,TRIM2#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-60070-C0supersedes 45186-60080-C0i200908-201308

LIMITED PACKAGE,BLACK,TRIM1#,4#; SR5 PACKAGE,BLACK,TRIM1#,4#

main45186-60110-C0supersedes 45186-60070-C0i202208

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-60040-C0i200908-201308

BLACK,TRIM1#,4#

main45187-60070-C0supersedes 45187-60040-C0i202208

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,4#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#,4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200908-201308

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i200908-201308

45713ADAMPER, STEERING SHAKE

main45713-60070i200908-201308

55910ECONTROL ASSY, STEERING WHEEL HEATER

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER; SEAT COVER MATERIAL-SYNTHETIC LEATHER

8401SWITCH & RELAY & COMPUTER

9015950199

9016840113

14 parts on this diagram · 1 diagram in section
