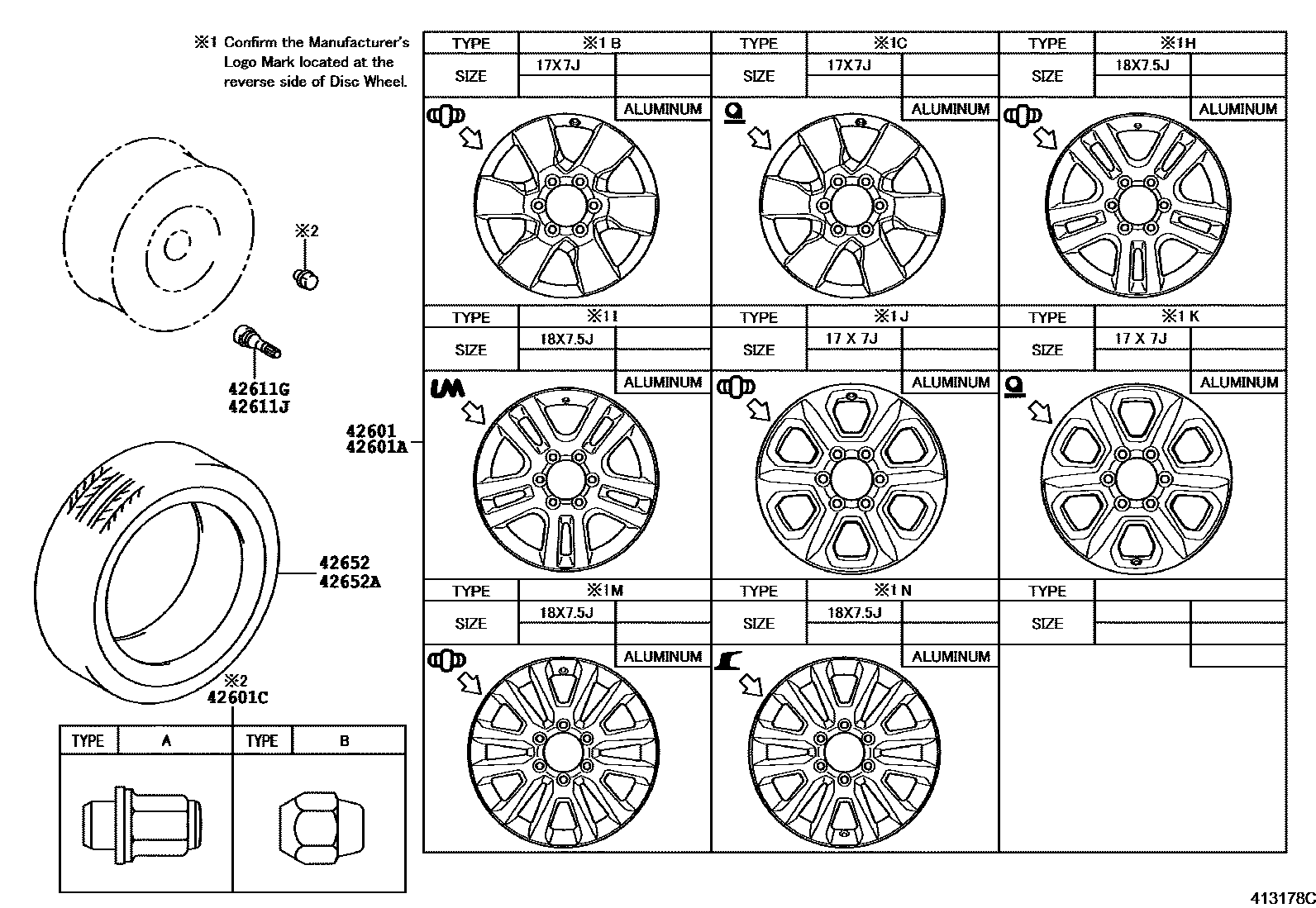

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
18X7.5J, #,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25,TYPE H:REFER ILLUST.
18X7.5J, #,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25,TYPE I:REFER ILLUST.
18X7.5J, #,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25,TYPE M:REFER ILLUST.
18X7.5J, #,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25,TYPE N:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
18X7.5J, #,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25,TYPE H:REFER ILLUST.
18X7.5J, #,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25,TYPE I:REFER ILLUST.
18X7.5J, #, LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18, 7.5J, ALUMINUM, OFFSET,25,TYPE M:REFER ILLUST.
18X7.5J, #,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25,TYPE N:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
265/60R18,*B/S,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
265/60R18,*B/S,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
265/60R18,*D/L,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
265/60R18,*D/L,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
265/60R18,*D/L,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
42652ATIRE (FOR SPARE)
265/60R18,*B/S,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
265/60R18,*B/S,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
265/60R18,*D/L,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
265/60R18,*D/L,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
265/60R18,*D/L,LIMITED PACKAGE&TIRE & DISC WHEEL-265/60R18 7.5J ALUMINUM OFFSET 25
7 parts on this diagram · 3 diagrams in section
