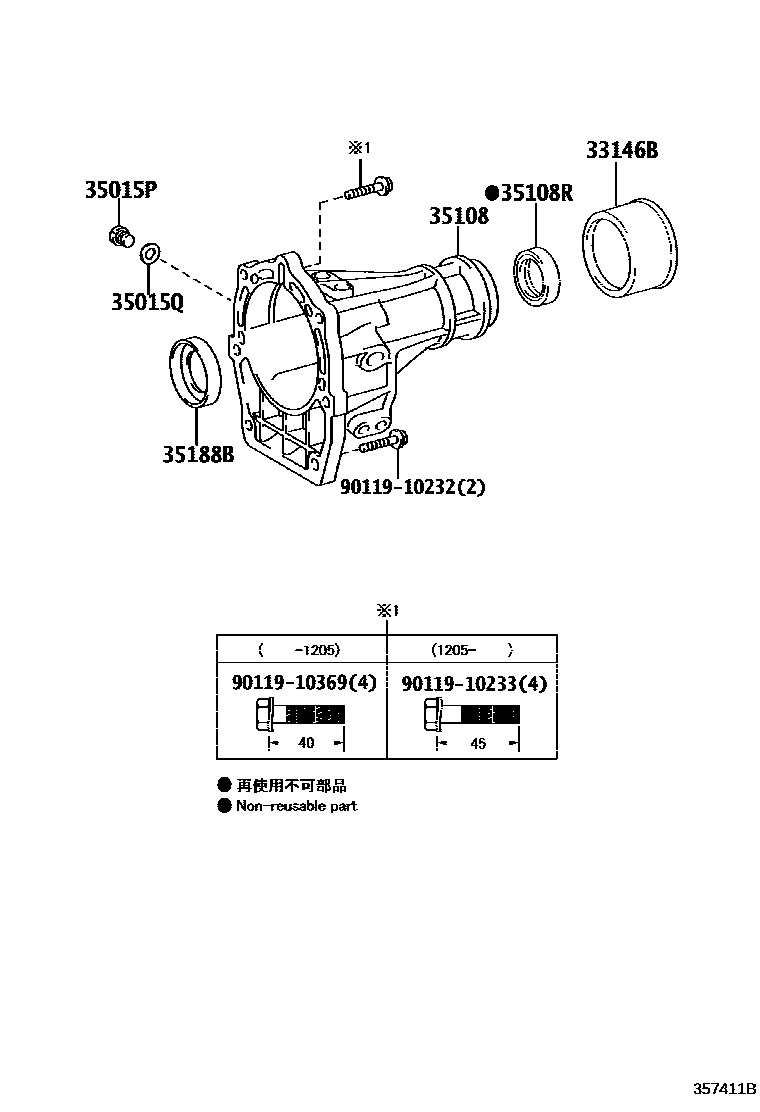

EXTENSION HOUSING (ATM)

33146BDEFLECTOR, EXTENSION HOUSING DUST

main33146-30020iGRN280200908-201308

35015PPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRN280200908-201308

35015QRING, O(FOR TRANSMISSION CASE ADAPTER PLUG)

main90301-15004iGRN280200908-201308

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-35100iGRN280200908-201308

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40034iGRN280200908-201308

main90311-40045iGRN280201601-201908

35188BRETAINER, EXTENSION HOUSING BUSH

main35188-35010iGRN280200908-201308

9011910232

main90119-10232

9011910233

main90119-10233

9011910369

main90119-10369

9 parts on this diagram · 1 diagram in section
