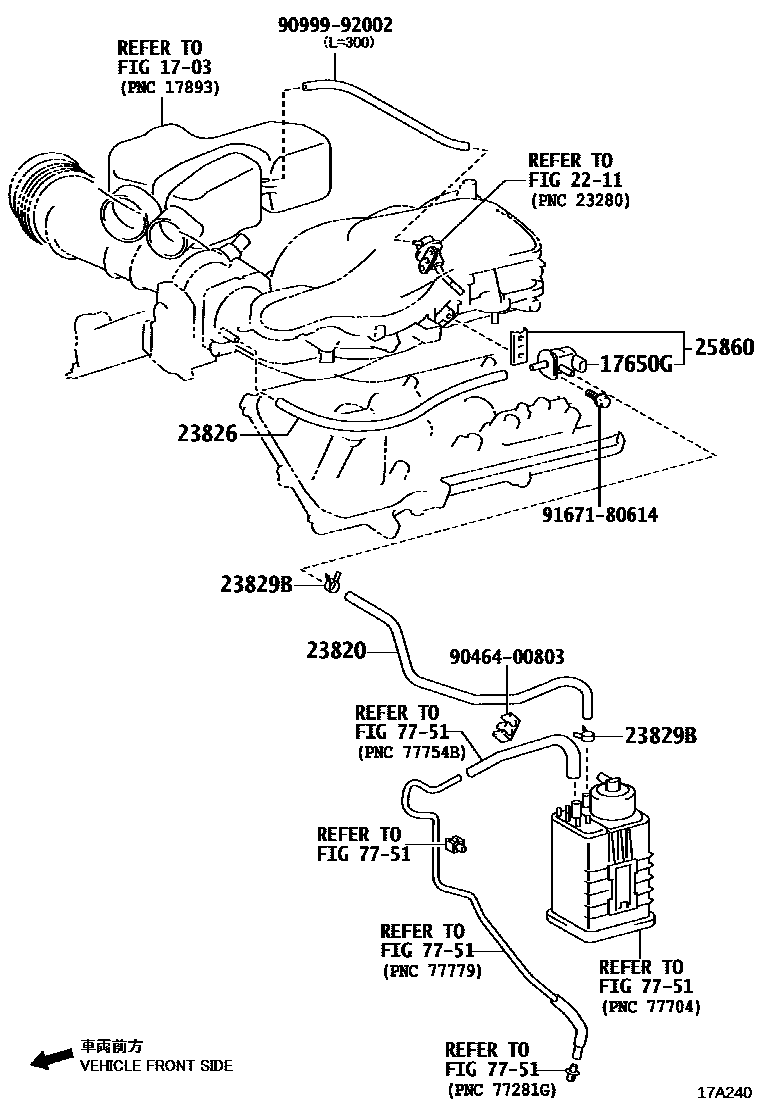

VACUUM PIPING

1703AIR CLEANER

→ Go to FIG 17-03

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i1GRFE..GRN28#201308-201908

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23820HOSE ASSY, FUEL VAPOR FEED

main23820-31240supersedes 23820-31200i1GRFE..GRN28#201908

CHILE SPEC

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31160i1GRFE..GRN28#200908-201308

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003×2i1GRFE..GRN28#200908-201308

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-36020i1GRFE..GRN28#200908-201308

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9046400803

main90464-00803

9099992002

main90999-92002

9167180614

main91671-80614

11 parts on this diagram · 1 diagram in section
