671390
›

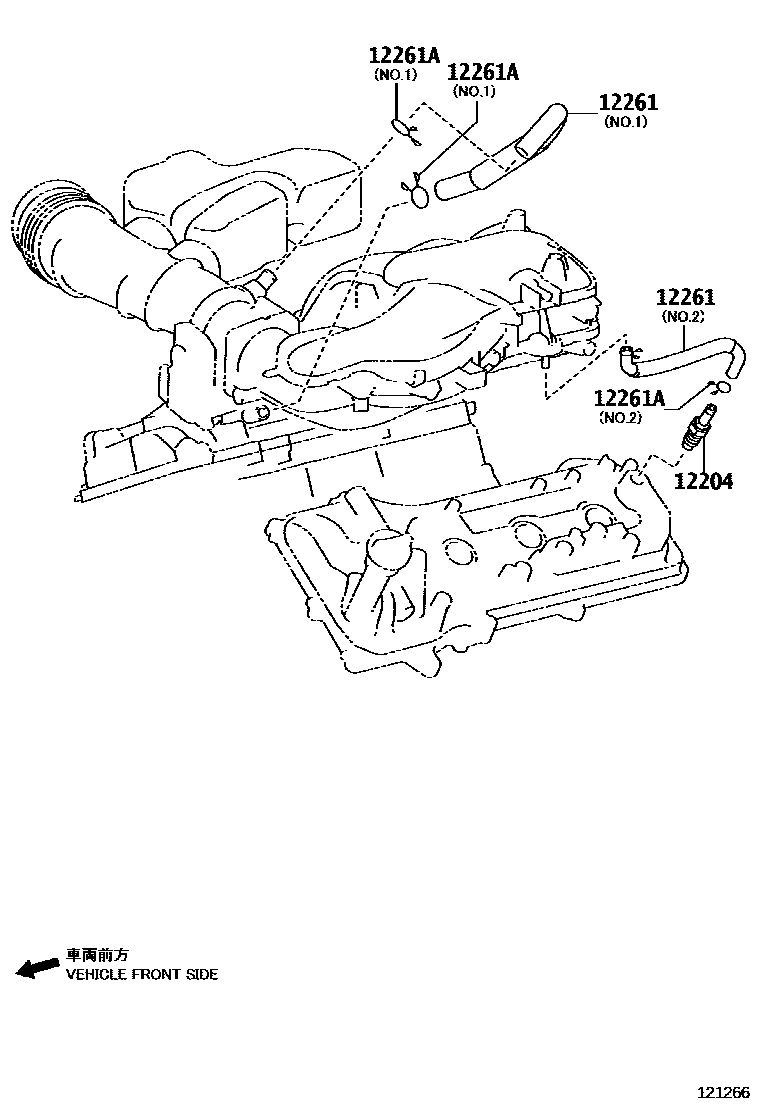

VENTILATION HOSE
VENTILATION HOSE
12204
VALVE SUB-ASSY, VENTILATION
main
12204-31110
i
1GRFE..GRN28#
201308-201908
12261
HOSE, VENTILATION
main
12261-31130
i
1GRFE..GRN28#
201908
NO.2
main
12261-31140
i
1GRFE..GRN28#
201908
NO.1
12261A
CLIP OR CLAMP(FOR VENTILATION HOSE)
main
90467-14017
i
1GRFE..GRN28#
201908
NO.2
main
90467-21004
×2
i
1GRFE..GRN28#
201908
NO.1
3 parts on this diagram · 1 diagram in section
