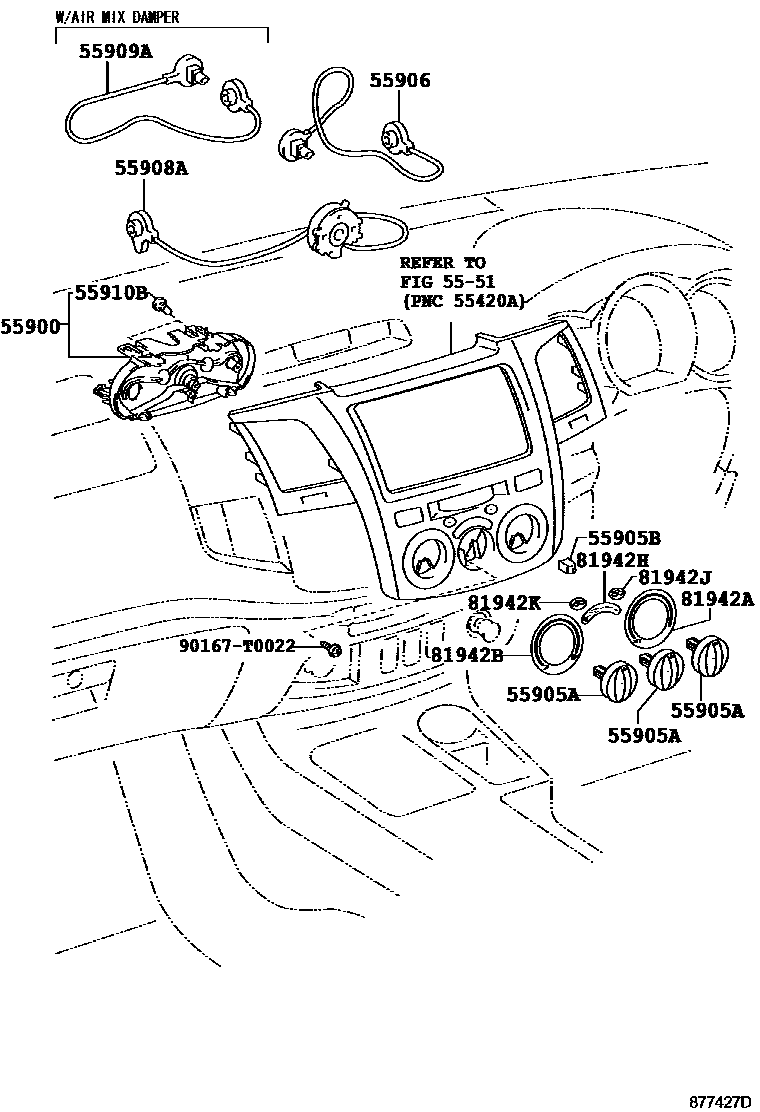

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL---DIAL TYPE 0002 1FRONT CONTROL---PUSH TYPE 0007 1FRONT CONTROL---PUSH TYPE 0015 1REAR CONTROL 0021 1REAR CONTROL 0030 1AIR DUCT---FRONT 0031 1AIR DUCT---FRONT 0032 1AIR DUCT---REAR 0038 1AIR DUCT---REAR 0047 1SENSOR

5551

55900CONTROL ASSY, AIR CONDITIONER

main55900-0K010iKUN61,TGN61..5F;GGN50,60,KUN51,LAN50,TGN51..GCC,SA200507-200706

main55900-0K011iKUN51..5F..SA;KUN61,LAN50..5F;TGN51,61..GCC,LA,SA;GGN50,KUN60..GCC,VN200808

main55900-0K020iTGN51..TH200501-200706

COOLER SINGLE

main55900-0K021iKUN5#..5F..(MA,TH)200707-200809

55905AKNOB, HEATER CONTROL

main55905-0K010×3iKUN51..4FC..GEN;KUN51..5F..(GEN,SA,TH);GGN60,TGN51,61..GCC,LA,SA;GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,LA,MA,SA)200501-200810

main55905-0K011×3iKUN61,LAN50..5F;KUN51..5F..(SA,TH);TGN51,61..GCC,LA,SA;GGN50,KUN50,60..GCC,MA,TH,VN201011

55905BKNOB, HEATER CONTROL, NO.2

main55905-0K020iKUN51..4FC..GEN;KUN51..5F..(GEN,SA,TH);GGN60,TGN51,61..GCC,LA,SA;GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,LA,MA,SA)200501-200810

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-0K010iKUN50..4FC;KUN61,LAN50..5F;KUN51..5F..(SA,TH);TGN51,61..GCC,LA,SA;GGN50,KUN60..GCC,TH,VN200808-201202

sub55906-26060

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-0K010iKUN50..4FC;KUN51,6#,LAN50..RHD..5F..(SA,TH)200808-201109

main55908-0K050iKUN51..LHD..(GEN,SA);GGN50,KUN61,LAN50,TGN51,61..LHD..(GCC,GEN,LA,SA)200507-200810

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0K010iGGN60,KUN61,TGN61..GCC,LA,SA;GGN50,KUN51,LAN50,TGN51..GCC,GEN,SA200507-200810

sub55909-26080

55910BBULB, HEATER CONTROL

main84999-06010×2iKUN51..4FC..GEN;KUN51..5F..(GEN,SA,TH);GGN60,TGN51,61..GCC,LA,SA;GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,LA,MA,SA)200501-200810

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-0K010iGGN50200507-200511

main81942-0K010-E0iGGN60,KUN61,TGN61..GCC,LA,SA;GGN50,KUN51,LAN50,TGN51..GCC,GEN,SA200507-200810

SANDAL WOOD,TRIM0#

main81942-0K010-E1iKUN51..5F..SA;KUN61,LAN50..5F;TGN51,61..GCC,LA,SA;GGN50,KUN60..GCC,VN200808-201202

ASH BROWN,TRIM4#

main81942-0K020-B0iKUN50200809-200910

DK.GRAY,TRIM1#

main81942-0K020-E0iKUN5#..5F..(MA,TH)200501-200809

SANDAL WOOD,TRIM0#

main81942-0K020-E1iKUN50..4FC;KUN51,60..5F..TH200808-201109

ASH BROWN,TRIM4#

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-0K040iGGN50200507-200511

main81942-0K040-E0iGGN60,KUN61,TGN61..GCC,LA,SA;GGN50,KUN51,LAN50,TGN51..GCC,GEN,SA200507-200810

SANDAL WOOD,TRIM0#

main81942-0K040-E1iKUN51..5F..SA;KUN61,LAN50..5F;TGN51,61..GCC,LA,SA;GGN50,KUN60..GCC,VN200808-201202

ASH BROWN,TRIM4#

main81942-0K050-B0iKUN50200809-200910

DK.GRAY,TRIM1#

main81942-0K050-E0iKUN5#..5F..(MA,TH)200501-200809

SANDAL WOOD,TRIM0#

main81942-0K050-E1iKUN50..4FC;KUN51,60..5F..TH200808-201109

ASH BROWN,TRIM4#

81942HSHEET, HEATER CONTROL NAME, NO.3

main81942-0K060iGGN50200507-200511

main81942-0K060-B0iKUN50200809-200910

DK.GRAY,TRIM1#

main81942-0K060-E0iKUN51..4FC..GEN;KUN51..5F..(GEN,SA,TH);GGN60,TGN51,61..GCC,LA,SA;GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,LA,MA,SA)200501-200810

SANDAL WOOD,TRIM0#

main81942-0K060-E1iKUN50..4FC;KUN61,LAN50..5F;KUN51..5F..(SA,TH);TGN51,61..GCC,LA,SA;GGN50,KUN60..GCC,TH,VN200808-201202

ASH BROWN,TRIM4#

81942JSHEET, HEATER CONTROL NAME, NO.4

main81942-0K070iGGN50200507-200511

main81942-0K070-B0iKUN50200809-200910

DK.GRAY,TRIM1#

main81942-0K070-E0iKUN51..4FC..GEN;KUN51..5F..(GEN,SA,TH);GGN60,TGN51,61..GCC,LA,SA;GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,LA,MA,SA)200501-200810

SANDAL WOOD,TRIM0#

main81942-0K070-E1iKUN50..4FC;KUN61,LAN50..5F;KUN51..5F..(SA,TH);TGN51,61..GCC,LA,SA;GGN50,KUN60..GCC,TH,VN200808-201202

ASH BROWN,TRIM4#

81942KSHEET, HEATER CONTROL NAME, NO.5

main81942-0K080iGGN50200507-200511

main81942-0K080-B0iKUN50200809-200910

DK.GRAY,TRIM1#

main81942-0K080-E0iKUN51..4FC..GEN;KUN51..5F..(GEN,SA,TH);GGN60,TGN51,61..GCC,LA,SA;GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,LA,MA,SA)200501-200810

SANDAL WOOD,TRIM0#

main81942-0K080-E1iKUN50..4FC;KUN61,LAN50..5F;KUN51..5F..(SA,TH);TGN51,61..GCC,LA,SA;GGN50,KUN60..GCC,TH,VN200808-201202

ASH BROWN,TRIM4#

90167T0022

main90167-T0022

14 parts on this diagram · 10 diagrams in section
