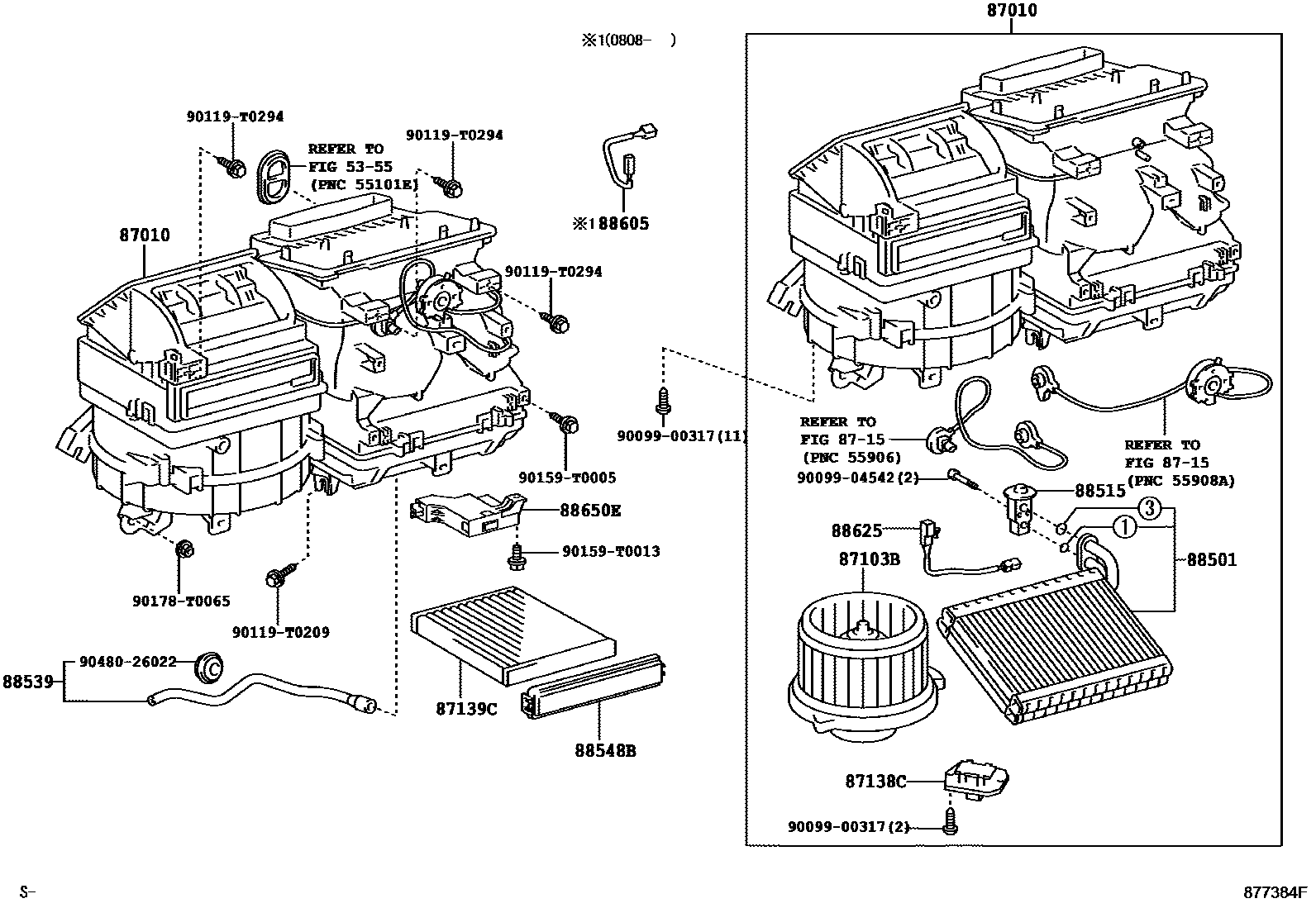

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT---MANUAL COOLER 0003 1FRONT---AUTO COOLER 0005 1FRONT---AUTO COOLER 0006 1FRONT---MANUAL AIR CONDITIONE0009 1FRONT---MANUAL HEATER 0011 1FRONT---MANUAL AIR CONDITIONE0012 1FRONT---MANUAL AIR CONDITIONE0013 1FRONT---AUTO AIR CONDITIONER 0016 1FRONT---MANUAL AIR CONDITIONE0018 1FRONT---MANUAL AIR CONDITIONE0019 1FRONT---MANUAL HEATER 0020 1FRONT---AUTO AIR CONDITIONER 0021 1FRONT---AUTO AIR CONDITIONER 0023 1FRONT---AUTO AIR CONDITIONER 0024 1FRONT---AUTO AIR CONDITIONER 0025 1REAR 0028 1REAR 0037 1O-RING 0038 1O-RING

5355

87010UNIT ASSY, AIR CONDITIONER

main87010-0K010iKUN51..5F200501-200509

COOLER SINGLE

main87010-0K011iKUN51..5F..TH200510-200608

COOLER SINGLE

main87010-0K012supersedes 87010-0K042iTGN61..TH200608-200808

COOLER SINGLE

main87010-0K013iTGN61..TH200808-201107

AIR CONDITIONER-COOLER SINGLE

main87010-0K040iKUN51..4FC..TH;KUN60,TGN51,61..IDN,TH200501-200510

main87010-0K041iKUN51..4FC..TH;KUN60,TGN51,61..IDN,TH200510-200608

main87010-0K042iKUN60,TGN51..SUVW..IDN;KUN51,TGN61..RHD..SUVW..4FC200608-200808

main87010-0K043iKUN60..SUVW..IDN;KUN51,61,TGN51,61..SUVW..4FC..(IDN,TH)200808-201107

main87010-0K061iTGN51,61..IDSUV..IDN200610-200808

main87010-0K062iKUN60,TGN51,61..IDSUV..IDN200808-201002

main87010-0K063iKUN60,TGN51,61..IDSUV..IDN201002-201107

main87010-0K231iLAN50,TGN51..LHD..SA200810-201108

AIR CONDITIONER-WITHOUT(COOLER)

main87010-0K430iKUN50200508-200609

main87010-0K431iKUN50200609-200809

main87010-0K432iKUN50200809-201109

main87010-0K440iTGN51..MA200508-200609

main87010-0K441iTGN51..MA200609-200809

main87010-0K442iTGN51..MA200809-201109

main87010-0K221iLAN50..RHD200810-201108

AIR CONDITIONER-WITHOUT(COOLER)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02280iGGN50,60..ANCOM200812

main87103-02460iGGN50,60,KUN51,61,LAN50..RHD..SA200810-201108

main87103-02470iKUN51,LAN50,TGN51..LHD..SA200810-201108

main87103-0K080iKUN50,TGN51..MA200508-200609

main87103-0K081iKUN50,TGN51..MA200809-201011

main87103-0K082iKUN50,TGN51..MA201012-201109

main87103-0K090iKUN51,60,TGN61..PHL200504-200608

main87103-0K091iGGN50,KUN51,60,TGN51,61..GCC,GEN,PHL200608-200808

main87103-0K092iKUN51,60,TGN51,61..PHL,VN201102

main87103-0K100iGGN50,60..ANCOM200602-200812

main87103-0K110iKUN51,60,TGN51,61..IDN,TH200501-200608

main87103-0K111iKUN51,60,TGN51,61..SUVW..(IDN,TH)200608-200808

main87103-0K112iKUN51,6#,TGN51,61..SUVW..(IDN,TH)201102-201107

main87103-0K121iTGN51,61..IDSUV..IDN200610-200808

main87103-0K122iKUN60,TGN51,61..IDSUV..IDN201012-201107

main87103-0K130iKUN51,61,TGN61..LA200509-200810

main87103-0K140iGGN50,60,KUN51,61,LAN50..RHD..SA200602-200712

main87103-0K150iKUN51,LAN50,TGN51..LHD..SA200605-200712

main87103-0K161iKUN51..IND200908-201011

main87103-0K162iKUN51..IND201012

main87103-0K200iGGN50,60,KUN51,TGN51,61..LHD..(SUVW,THSUV)..(GCC,GEN)200808-201107

AIR CONDITIONER-AIR CONDITIONER DUAL

main87103-0K230iGGN50,KUN51,61,TGN61..LA200810

main87103-0K260iGGN50,60,KUN51,61,LAN50..RHD..SA200801-200810

main87103-0K270iKUN51,LAN50,TGN51..LHD..SA200801-200810

main87103-0K210iKUN51..SUVW..GEN201008-201107

AIR CONDITIONER-AIR CONDITIONER DUAL

87138CRESISTOR, BLOWER

main87138-02040iKUN61,TGN61..LA200509-200810

main87138-0K090iGGN50,60,KUN5#,61,LAN50..RHD..(5F,5FC)200501-200810

sub87138-0K290

main87138-0K110iTGN51..SUVW..(GCC,SA);GGN50,KUN51,60,LAN50,TGN61..LHD..SUVW..(GCC,SA,VN)200808

main87138-0K200supersedes 87138-0K110iGGN50,TGN51,61..IDSUV..GCC200611-200808

87139CFILTER, CLEAN AIR

main87139-02060iKUN51..IND200908

main87139-06080iGGN50,TGN51..GCC,IDN,TH;TGN61..IDSUV..(GCC,IDN);KUN51,60,TGN61..SUVW..(GCC,IDN,PHL,TH)200608-200809

main87139-0K010iKUN51,61,TGN61..LA200701-200810

main87139-0K020iGGN50,60..ANCOM200701-200705

main87139-52020iGGN60..GEN200808-201107

8715

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02251iGGN50,60..ANCOM200812-201107

main88501-0K090iKUN50..4FC;KUN51..THSUV;KUN51..PHL,TH;GGN50,60,KUN6#,TGN51,61..GEN,IDN,MA,PHL,TH,VN200808-201202

sub88501-0K091

main88501-0K100iGGN50,60..ANCOM200602-200812

main88501-0K110iKUN51,61,TGN61..LA200509-200810

main88501-0K120iGGN50,60,KUN51,61,LAN50,TGN51..SA200602-200805

main88501-0K121iGGN50,60,KUN51,61,LAN50,TGN51..SA200806-200810

main88501-0K160iGGN50,TGN51,61..IDSUV..GCC200611-200808

sub88501-0K161

main88501-0K211iGGN50,KUN51..LA200810-201110

main88501-0K230iKUN61,TGN61..LA200810-201110

main88501-12510iGGN50,60..ANCOM201108-201204

88515VALVE, COOLER EXPANSION

main88515-0K100iKUN51,60,TGN61..PHL200808-201107

main88515-0K110iKUN60,TGN51,61..IDSUV..IDN200808-201002

main88515-0K120iKUN51..IND200908-201201

main88515-0K140iKUN50,TGN51..MA200601-200809

main88515-0K150supersedes 88515-71010iKUN61,TGN61..LA200601-200810

main88515-0K160iGGN50,60..ANCOM200602-200812

main88515-0K170iKUN51..LHD..SA200810-201108

AIR CONDITIONER-AIR CONDITIONER DUAL

main88515-0K180iKUN51..TH;KUN51..THSUV;GGN50,60,KUN6#,TGN51,61..(SUVW,THSUV)..(GEN,IDN,TH,VN)200808-201201

main88515-0K270iKUN50,TGN51..MA200809-201109

main88515-0K280iGGN50,KUN51,61,TGN61..LA200810-201110

main88515-0K370iGGN50,60..ANCOM200812-201201

main88515-0K400iKUN60,TGN51,61..IDSUV..IDN201002-201107

sub88515-0K470

main88515-0K540iGGN50,60201202-201204

main88515-71010iKUN50,61,TGN51,61..LA,MA200501-200601

main88515-0K250iGGN50,TGN51,61..GCC200808-201107

AIR CONDITIONER-AIR CONDITIONER DUAL

main88515-71020iGGN50,TGN51..GCC200507-200512

SINGLE AIR CONDITIONER

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0K010iGGN50,KUN51,60,TGN51,61..LHD..(SUVW,THSUV)..(GCC,GEN,PHL,VN)200808

main88539-0K020iGGN50,TGN51,61..IDSUV..GCC200611-200808

main88539-0K030iKUN51,LAN50,TGN51..LHD..SA200810-201108

main88539-0K040iGGN50,KUN51,61,TGN61..LA200810

main88539-0K050iTGN51,61..SUVW..(IDN,TH);KUN51,60..SUVW..5F..(IDN,TH)200808-201107

main88539-0K060iTGN51,61..IDSUV..IDN;KUN60..IDSUV..5F..IDN200808-201107

main88539-0K070iKUN51,61,LAN50..RHD..SA200602-200810

main88539-0K080iKUN51..IND200908

main88539-0K160iGGN50,60..SA200602-200810

main88539-0K180iTGN51..MA200809-201109

main88539-0K200iGGN50,60..ANCOM200602-200812

main88539-0K270iKUN51..4FC..TH200605-200808

main88539-0K280iKUN60..4FC..IDN200908-201107

main88539-0K290iKUN51,61..4FC..SA200810-201108

main88539-0K300iKUN50200809-201109

88548BCASE, AIR FILTER

main88548-02160iKUN51..IND200908

main88548-0K010iKUN51,6#,LAN50..RHD..(IDN,SA,TH);GGN50,60,KUN50,TGN51,61..RHD..(4FC,5FC)200808-201109

main88548-0K020iGGN60..GEN200808-201107

AIR CONDITIONER-AIR CONDITIONER DUAL

main88548-0K040iKUN51,61,TGN61..LA200701-200810

main88548-0K050iGGN50,60..ANCOM200701-200705

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-0K090iKUN51,6#,TGN51,61..SUVW..(IDN,PHL,TH,VN)200808

main88605-0K100iKUN51,60,TGN51,61..IDSUV..(IDN,PHL)200808-201107

main88605-0K120iKUN50,TGN51..MA200809-201109

main88605-0K140iKUN51..IND200908

88625THERMISTOR, COOLER, NO.1

main88620-02110iGGN60..GEN200810-201107

AIR CONDITIONER-AIR CONDITIONER DUAL

sub88620-0D150

main88620-02120iGGN50,60,KUN51,61,TGN61..ANCOM,LA200810

main88625-02110iKUN51..LHD..SA200810-201108

AIR CONDITIONER-AIR CONDITIONER DUAL

main88625-26090iGGN50,TGN51,61..GCC200808-200809

AIR CONDITIONER-AIR CONDITIONER DUAL

main88625-71010iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-200812

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-0K010iGGN50,KUN51..GEN200507-200808

main88650-0K120iTGN61..LA;KUN51..RHD..5F..SA;KUN6#,LAN50,TGN51..5F..(LA,SA,VN)200810-201204

main88650-0K170iTGN61..TH200808-201107

AIR CONDITIONER-COOLER SINGLE

main88650-0K180iKUN50200809-201109

main88650-0K210iKUN61,TGN61..LA200509-200810

main88650-0K160iGGN50,TGN51,61..IDSUV..GCC200808-201107

AIR CONDITIONER-AIR CONDITIONER DUAL

main88650-0K220iKUN61..LA200509-200810

FRONT HEATER-PTC HEATER W(AIR CONDITIONER)

main88650-0K221iKUN61..LA200810-200909

FRONT HEATER-PTC HEATER WITH(EVAPORATOR)

9009900317

main90099-00317

9009904542

main90099-04542

90119T0209

main90119-T0209

90119T0294

main90119-T0294

90159T0005

main90159-T0005

90159T0013

main90159-T0013

90178T0065

main90178-T0065

9048026022

main90480-26022

21 parts on this diagram · 19 diagrams in section
