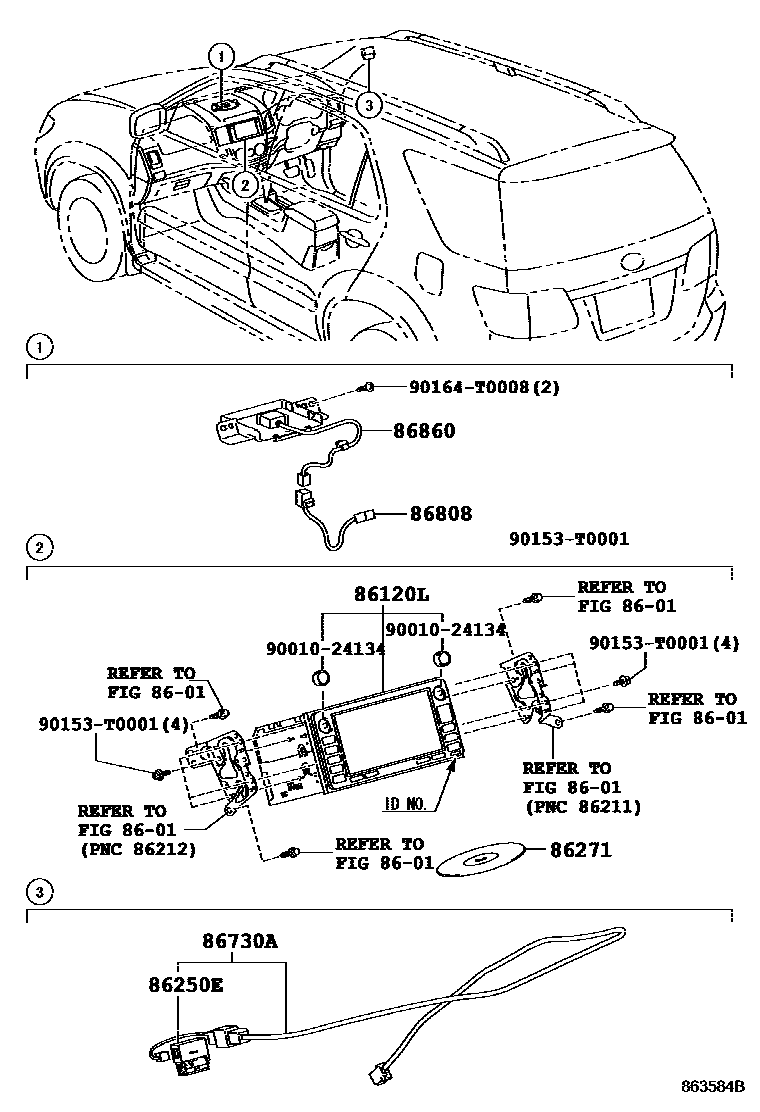

NAVIGATION & FRONT MONITOR DISPLAY

8601

86120LRECEIVER ASSY, NAVIGATION

main86120-71010iKUN51..4FC..TH200808-201107

AISHIN AW,AUDIO-AVN DVD 6SPEAKER

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030iKUN51..4FC..TH200808-201107

AUDIO-AVN DVD 6SPEAKER

86271DISC, DISC PLAYER

main86271-33102iKUN51..4FC..TH200808-200908

AUDIO-AVN DVD 6SPEAKER

sub86271-48224

main86271-33103iKUN51..4FC..TH200909-201008

AUDIO-AVN DVD 6SPEAKER

main86271-33104iKUN51..4FC..TH201009-201107

AUDIO-AVN DVD 6SPEAKER

sub86271-48224

86730AMICROPHONE ASSY, TELEPHONE

main86730-71010iKUN51..4FC..TH200808-201107

AUDIO-AVN DVD 6SPEAKER

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-71010iKUN51..4FC..TH200808-201107

AUDIO-AVN DVD 6SPEAKER

sub86808-71011

86860ANTENNA ASSY, NAVIGATION

main86860-71010iKUN51..4FC..TH200808-201107

AUDIO-AVN DVD 6SPEAKER

9001024134

main90010-24134

90153T0001

main90153-T0001

90164T0008

main90164-T0008

10 parts on this diagram · 1 diagram in section
