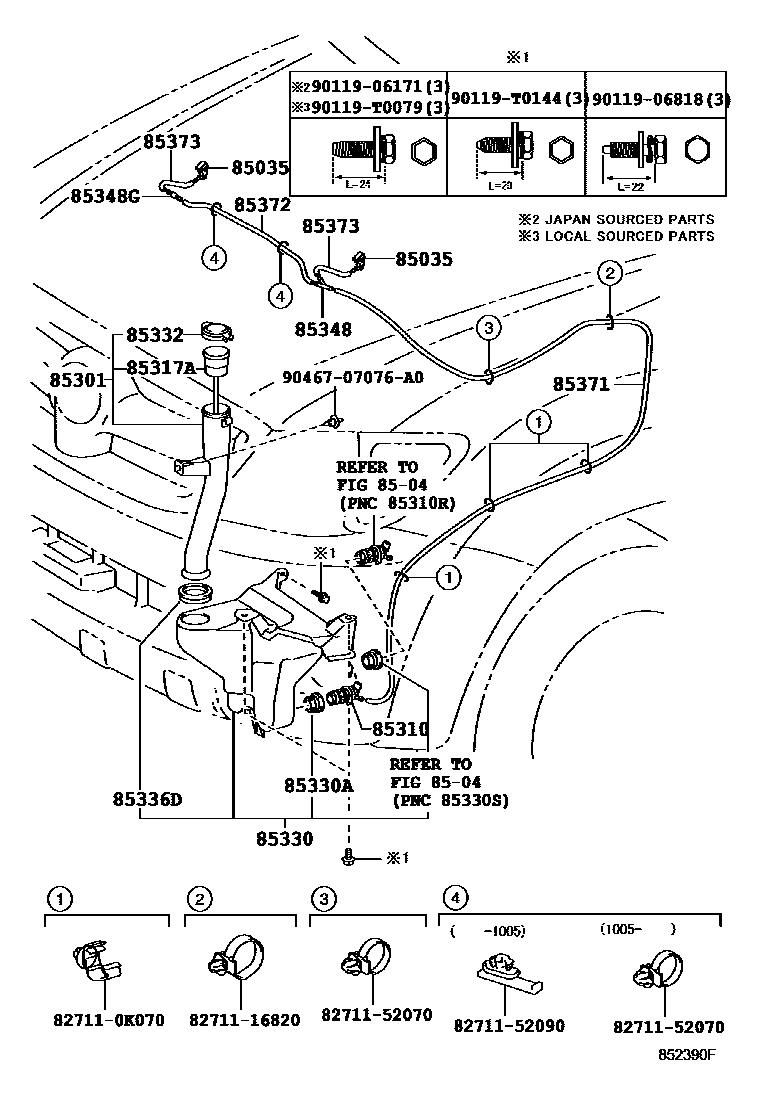

WINDSHIELD WASHER

0001 1 0003 1

85035NOZZLE SUB-ASSY, WASHER

main85381-0K010iGGN60..GEN200501-201107

8504

85301INLET SUB-ASSY, WASHER

main85301-0K010iGGN50..5FC..SA;GGN60..5FC..(GEN,SA);GGN50..(SUVW,THSUV)..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,SA,TH,VN)200501-200912

main85301-0K040iGGN50,TGN51,61..IDSUV200610-201003

sub85301-0K041

main85301-0K041iGGN50,KUN51,60,TGN51,61..IDSUV201004-201107

main85301-0K051iKUN51..IND200908-201201

main85301-0K060iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-200907

sub85301-0K061

main85301-0K061iGGN50,60,KUN51,61,TGN61..ANCOM,LA200908-201204

main85301-0K070iKUN50,TGN51..MA200508-200912

sub85301-0K071

main85301-0K071iKUN50,TGN51..MA201001-201109

main85301-0K150iGGN60..GEN201001-201204

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D100iGGN60..GEN200808-201204

main85330-21010iKUN51..IND200501-201204

sub85330-0D100

85317AJOINT, WASHER TANK

main85318-0K060iKUN51,61,TGN61..LA200509-200908

85330JAR ASSY, WINDSHIELD WASHER

main85315-0K050iGGN50,60..5FC..SA;GGN50..(SUVW,THSUV)..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,SA,TH,VN)200501-201204

main85315-0K060iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-201204

main85315-0K080iGGN50,KUN51,60,TGN51,61..IDSUV200610-201107

main85315-0K100iKUN51..IND201004-201204

main85315-0K110iKUN50,TGN51..MA200508-201109

85330ABUSH, WINDSHIELD WASHER JAR

main85336-0K020iGGN60,KUN6#,LAN50..SUVW..(IDN,PHL,SA);GGN50,KUN51,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,SA,TH)200501-201204

main85336-0K140iKUN50,TGN51..MA200508-201109

main85336-60300iKUN51..IND200509-201204

85332CAP, WINDSHIELD WASHER JAR

main85316-0K010iGGN60,KUN6#,LAN50..SUVW..(IDN,PHL,SA);GGN50,KUN51,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,SA,TH)200501-201204

main85316-0K040iGGN50,KUN51,60,TGN51,61..IDSUV200610-201107

main85386-0K060iTGN61..5F..LA;GGN50,60,KUN51,61..ANCOM,LA200509-201204

main85386-0K070iKUN50,TGN51..MA200508-201109

85336DPACKING, WINDSHIELD WASHER JAR

main85336-0K010iGGN50,60..5FC..SA;GGN50..(SUVW,THSUV)..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,SA,TH,VN)200501-201204

main85336-0K030iGGN50,60,KUN51,61,TGN61..ANCOM,LA200509-201204

main85336-0K070iGGN50,KUN51,60,TGN51,61..IDSUV200610-201107

main85336-42190iKUN50,TGN51..MA200508-201204

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

main85378-0K051iGGN60..GEN200903-201107

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

main85375-02330iGGN60..GEN200903-201107

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33019iGGN50,60,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV200903-201005

L=40

main90068-33111iGGN50,KUN51,60,TGN51,61..IDSUV200812-201107

L=1910

main90068-33158iGGN60..GEN201005-201107

L=40

sub90068-33160

main90099-33803iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-200903

L=1910

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33110iGGN50,KUN51,60,TGN51,61..IDSUV200812-201107

L=510

main90068-59091iGGN60..SUVW;GGN50,KUN5#,6#,LAN50,TGN51,61..SUVW,THSUV200903-201107

L=950

main90099-33080iGGN50,KUN51,60,TGN51,61..IDSUV200501-200903

L=1450(*H,L=510)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33112iGGN50,KUN51,60,TGN51,61..IDSUV200812-201107

L=120

main90099-33080iTGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GC200501-201107

L=1450(*H,L=120)

827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K070

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

8271152070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52070

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9011906171

main90119-06171

9011906818

main90119-06818

90119T0079

main90119-T0079

90119T0144

main90119-T0144

9046707076A0

main90467-07076A0

23 parts on this diagram · 2 diagrams in section
