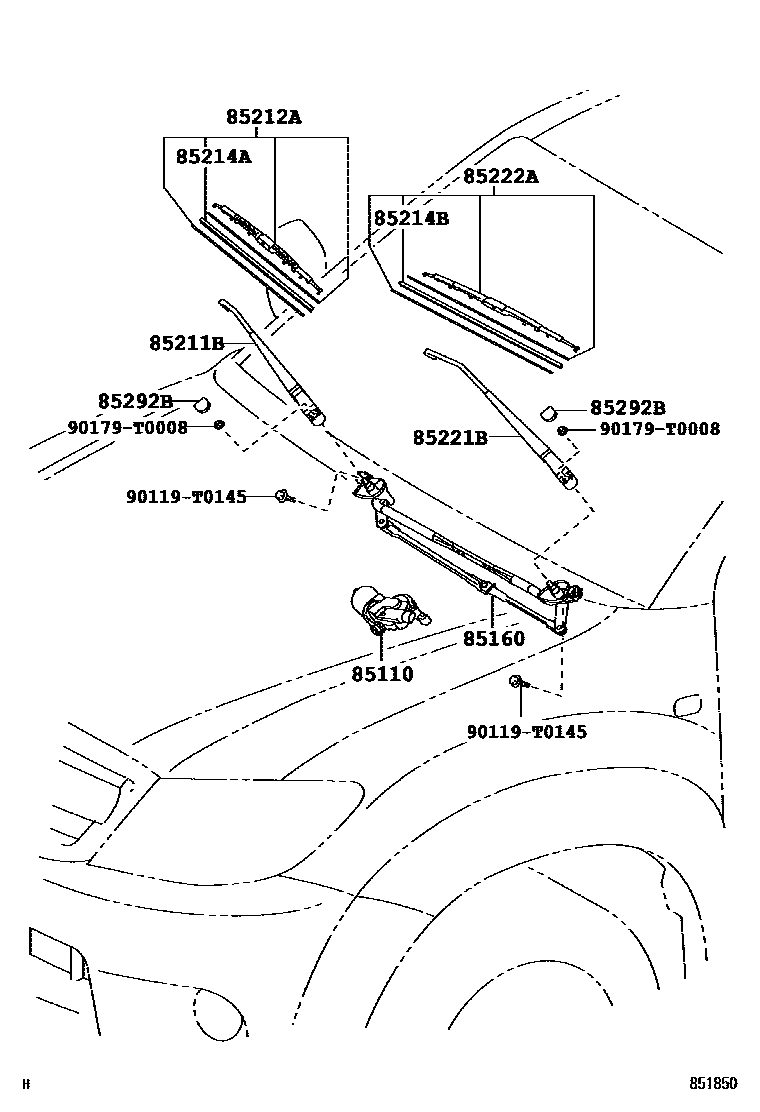

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0K010iKUN60..SUVW..IDN;KUN5#,TGN51,61..IDN,MA,TH200501-200809

main85110-0K011iKUN51,60..RHD..(GEN,IDN,IND,TH);KUN50,61,TGN51,61..4FC..(IDN,MA,TH)200808

main85110-0K020iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,PHL);GGN50,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,GEN,LA,SA)200504-200903

main85110-0K021iGGN60..GEN200808-201107

main85110-0K030iGGN50,60,KUN51,61,LAN50..RHD..SA200602-200810

85160LINK ASSY, WINDSHIELD WIPER

main85150-0K011iKUN60..SUVW..IDN;KUN5#,TGN51,61..IDN,MA,TH200501-200809

main85150-0K021iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,PHL);GGN50,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,GEN,LA,SA)200504-200903

main85150-0K030iGGN50,60,KUN51,61,LAN50..RHD..SA200810-201108

85211BARM, FRONT WIPER, RH

main85211-0K010iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main85211-0K020iGGN60..GEN200808-201107

85212ABLADE, FR WIPER, RH

main85212-0K010iKUN60..SUVW..IDN;KUN5#,TGN51,61..IDN,MA,TH200501-200809

main85212-0K020iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,PHL);GGN50,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,GEN,LA,SA)200504-200903

main85212-0K090iLAN50..RHD200602-200606

main85212-0K091iGGN50,60,KUN51,61,LAN50..RHD..SA200810-201108

85214ARUBBER, WIPER, RH

main85214-0D070iKUN51,60..RHD..(GEN,IDN,IND,TH);KUN50,61,TGN51,61..4FC..(IDN,MA,TH)200808

main85214-0K040iGGN60..ANCOM;GGN50,KUN51,6#,LAN50,TGN51,61..LHD200808

main85214-0K050iLAN50..RHD200602-200606

main85214-0K051iGGN50,60,KUN51,61,LAN50..RHD..SA200810-201108

85214BRUBBER, WIPER, LH

main85214-06030iGGN50,60,KUN51,61,LAN50..RHD..SA200602-200810

main85214-0D070iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,PHL);GGN50,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,GEN,LA,SA)200504-200903

main85214-0K040iKUN51,60..RHD..(GEN,IDN,IND,TH);KUN50,61,TGN51,61..4FC..(IDN,MA,TH)200808

85221BARM, FRONT WIPER, LH

main85221-0K010iKUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)200501-200810

main85221-0K020iGGN50,60,KUN51,6#,LAN50,TGN51,61..LHD200808-201204

85222ABLADE, FR WIPER, LH

main85222-0K010iKUN60..SUVW..IDN;KUN5#,TGN51,61..IDN,MA,TH200501-200809

main85222-0K020iTGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,PHL);GGN50,KUN61,LAN50,TGN51..LHD..(ANCOM,GCC,GEN,LA,SA)200504-200903

main85222-0K090iGGN50,60,KUN51,61,LAN50..RHD..SA200810-201108

85292BCAP, FRONT WIPER ARM HEAD

main85292-0K030×2iGGN60..GEN200808-201107

90119T0145

main90119-T0145

90179T0008

main90179-T0008

11 parts on this diagram · 2 diagrams in section
